eO+ WORK STATIONS WITH OVERHEAD STORAGE UNITS INSTALLATION RULES
IMPORTANT: When specifying and installing eO+ workstations with overhead storage units (shelves and overheads) and/or worksurfaces, the following
rules must be followed. Failure to adhere to these rules may compromise the integrity of the installation and void the warranty.

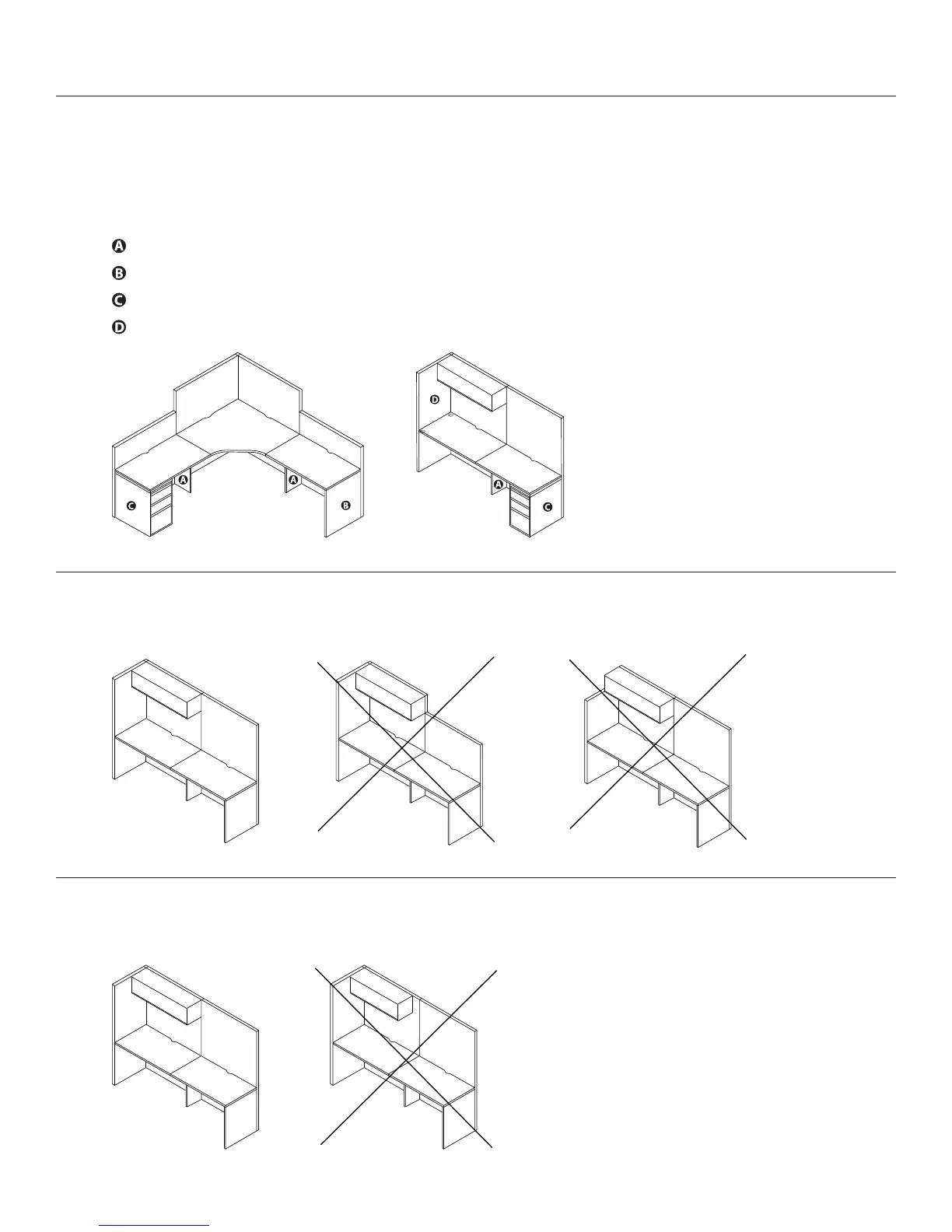

Rule #1
Panels supporting overhead storage units and/or worksurfaces must be vertically stabilized. These panels must have worksurfaces attached to the
panels using any combination of the following:
Mid-Support Gables (EMSG2xxP)
End Gables (FEG2xxP)
Worksurface Supporting Pedestals with Pedestal Connecting Brackets (GWPSxxxxF/EPTPBK)
Wing panels that are the same width as the depth of the worksurface and incorporate a set of Corner Brackets (EWSB)
Rule #2
Panels supporting overhead storage units must have panels of equal height on either side.
Rule #3
The width of an overhead storage unit must correspond with the width of the supporting panel.
