Overhead Storage Installation
Overhead Storage Unit
NOTE:
• Always ensure that all overhead storage units are attached to a panel that has either an adjacent 66” panel or 66” post connected to it on both sides.
• Always ensure that wing panel, Mid-Support Gable, End Gable or Worksurface Supporting Pedestal is attached to each side of a panel that supports
an overhead storage unit.

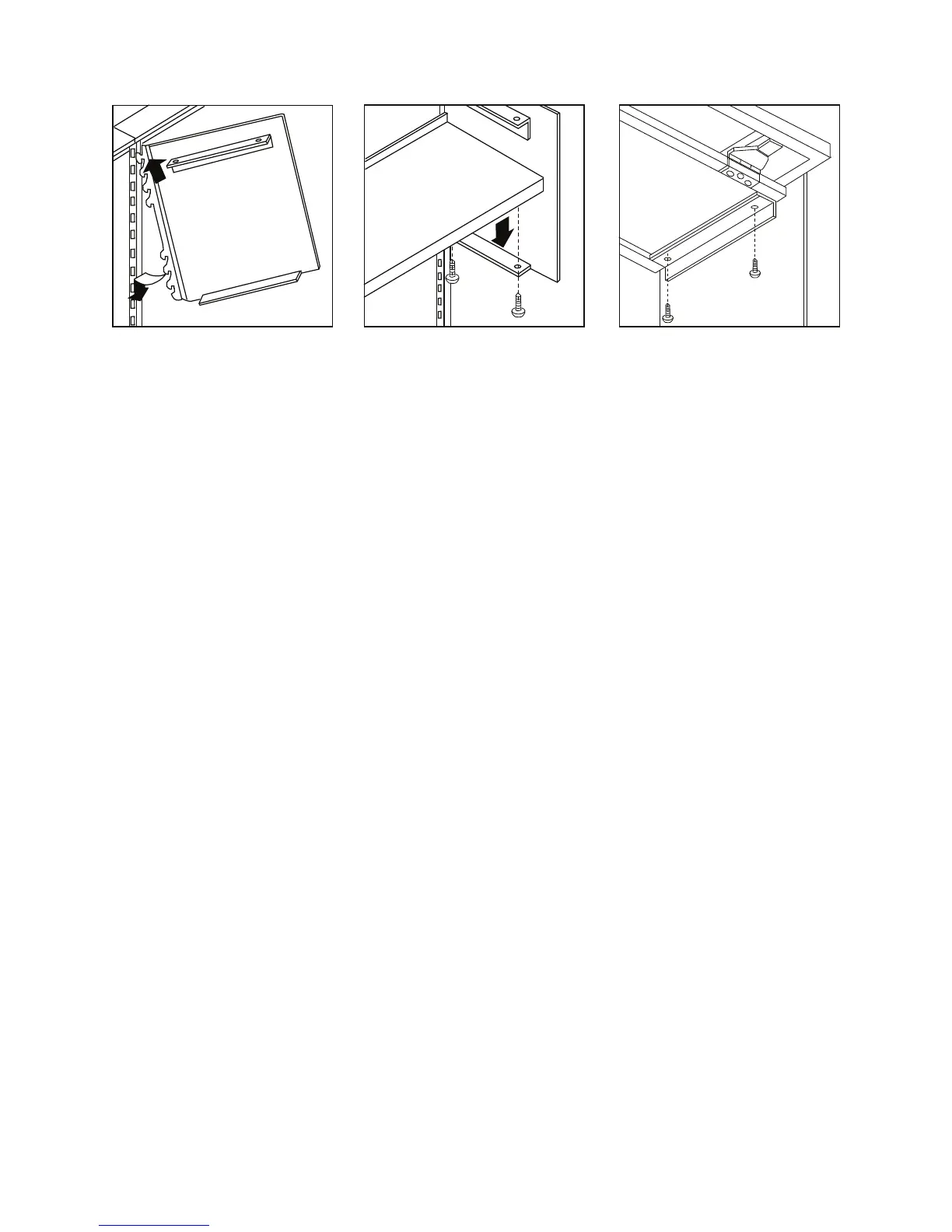

Identify the left and right end gable and determine their location in the panel slots.
1. Insert the upper hook of the end gable into the panel slot and pull upward.
2. Pivot downward and latch the remaining hooks into the panel slots.
3. When both end gables are set, lay the shelf on the lips of the ends and align the screw holes.
4. Secure the shelf by driving the supplied screws through the end gable into the bottom of the shelf.
5. Place the top and door assembly on the top ledge of the end gable assembly.
6. Secure the top by driving supplied screws through the top ledge into the metal top.
