Global FM-1209-2 - Installation Dimensions; Installation Method

Instruction Manual
2
Air Curtain

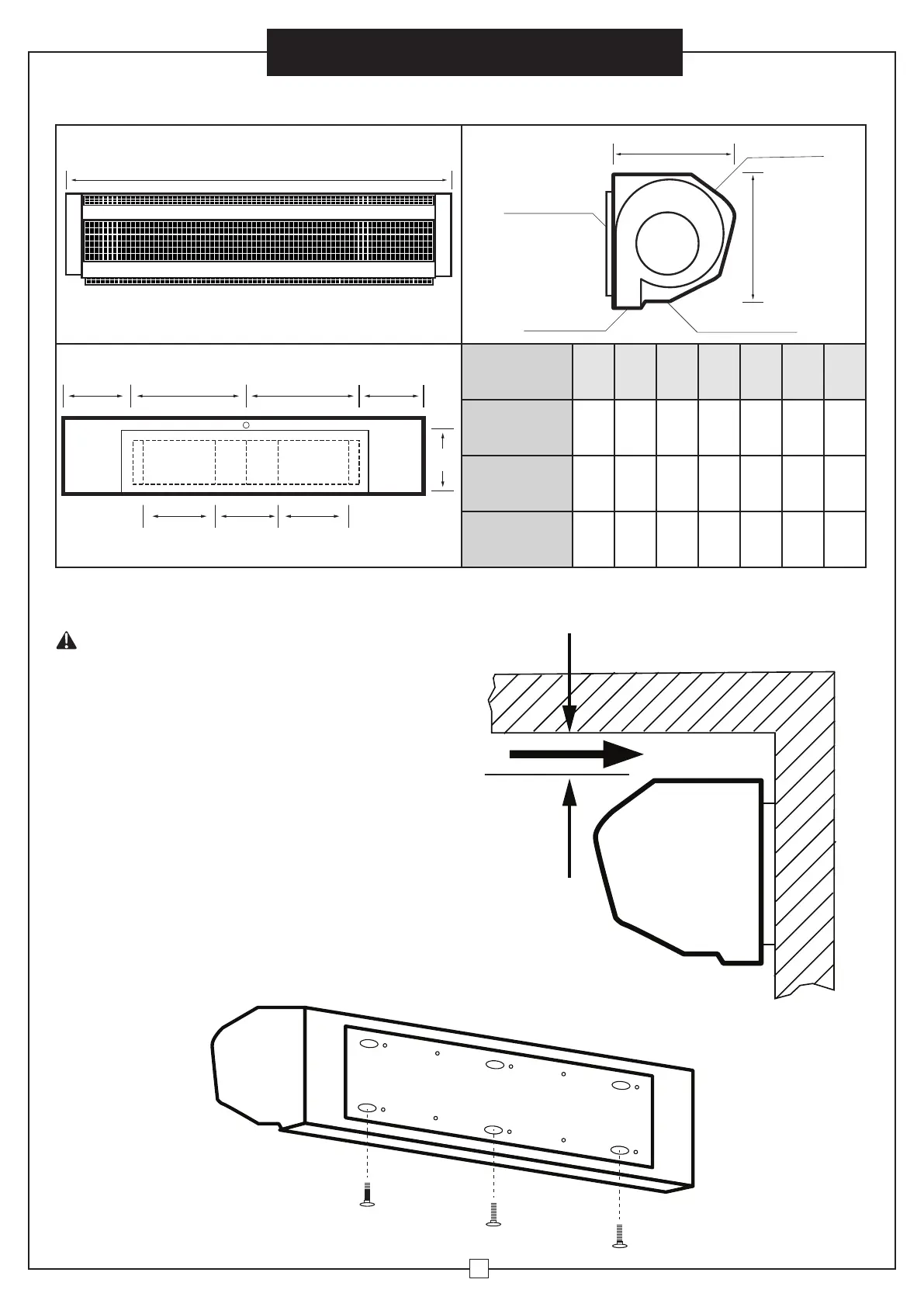

3. INSTALLATION DIMENSIONS
4. INSTALLATION METHOD
WARNING
INSTALLATION AND ELECTRICAL CONNECTIONS
MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.
1) Accessories include 6 sets of (M8 x 60L) fastening
bolts, washers, spring washers, and (MS) nuts.
2) Check to ensure the voltage / frequency on the rating
label complies with the local power source prior to
use.
3) Follow the diagram (A) to reference the proper
installation position.
4) Coverage height is 99 inches for horizontal Air Curtain
installations.
5) Wall installation:
a. Remove the INSTALLATION PLATE by
unscrewing the fixing screws down the REAR of
the plate.
MODEL
A B C D E F G
FM-1209-2
246608
36 2 16 5 10 8 8
5
/8
FM-1212-2
246609
48 8 16 5 10 8 8
5
/8
FM-1215-2
246610
60 14 16 5 10 8 8
5
/8
A
B B
D
C
E E E
C
F
G
Mounting Plate
Air Inlet
Control SwitchAir Outlet
2" Above
Outdoor
Diagram A
Indoor
Remove screws from plate
