Global G3420 - Page 3

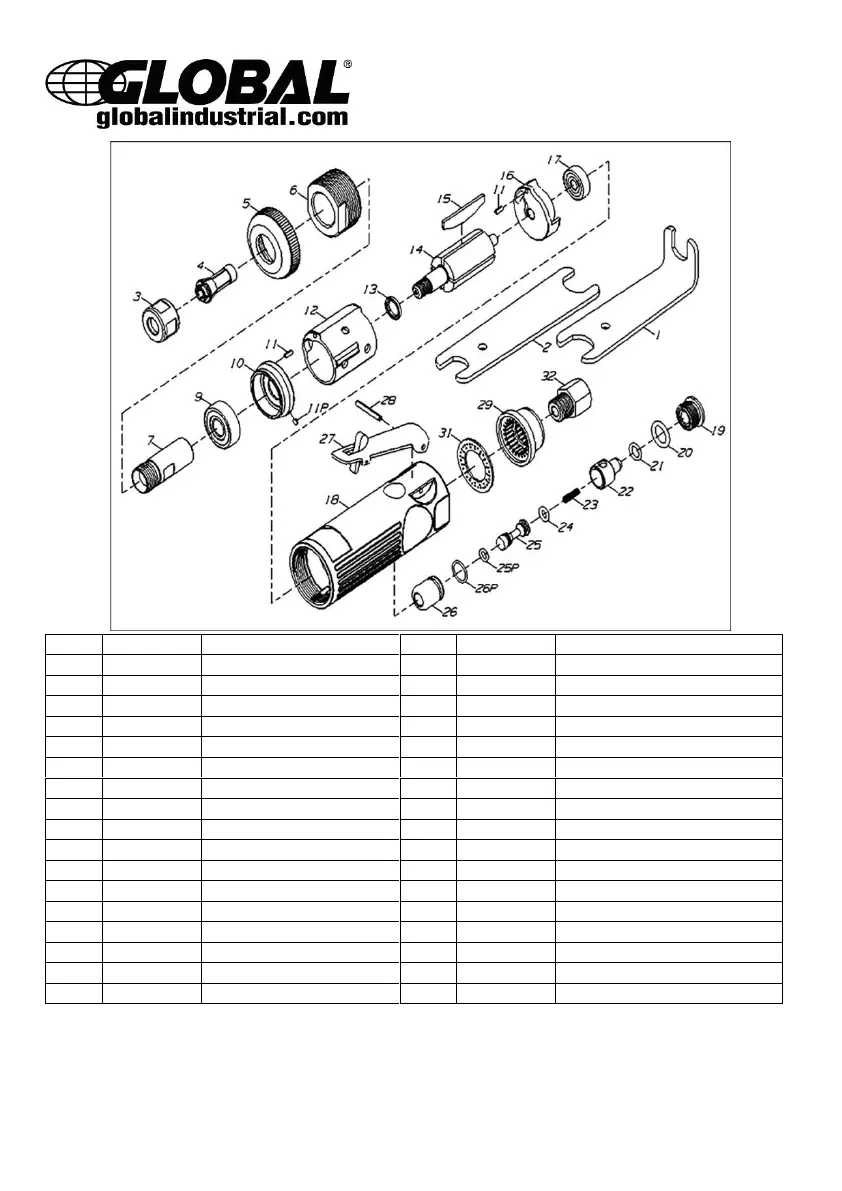

No.
Part No.
Description
No.
Part No.
Description
1
103101
Angle Ended Spanner
18
103118
Housing
2
103102
Double Ended Spanner
19
103119
Valve Screw
3
103103
Collet Nut
20
O-1100-250
O-Ring
4
103104
Collet
21
O-0700-180
O-Ring
5
103105
Housing Cap
22
103122
Air Regulator
6
103106
Retainer
23
103123
Spring
7
103107
Spindle
24
O-0500-200
O-Ring
9
6000-ZZ0A
Ball Bearing
25
103125
Throttle Valve
10
103110
Front End Plate
25P
O-0500-150
O-Ring
11
P-0025-060
Pin (2)
26
103126
Valve Bushing
11P
P-0025-030
Pin
26P
O-1100-120
O-Ring
12
103112
Cylinder(PM)
27
103127
Safety Lever
13
103113
Spacer
28
P-0030-220
Throttle Pin
14
103114
Rotor
29
103129
Exhaust Deflector
15
106316
Rotor Blade (4)
31
103131
Exhaust Washer
16
103116
Rear End Plate
32
103132
Inlet Bushing
17
0626-ZZ0A
Ball Bearing
PLEASE READ FOLLOWINGS CAREFULLY BEFORE OPERATING:
1) Always wear Safety Goggles to guard against eye injuries caused by flying particles.
2) Light density, non-detergent lubricant oil (i.e.#60) recommended.
3) Use working pressure of 0-90 PSIG, regular speed: 22,000 RPM.
Model # G3420
1/4” Die Grinder
