Global SV 550 User Manual

110824
15 °

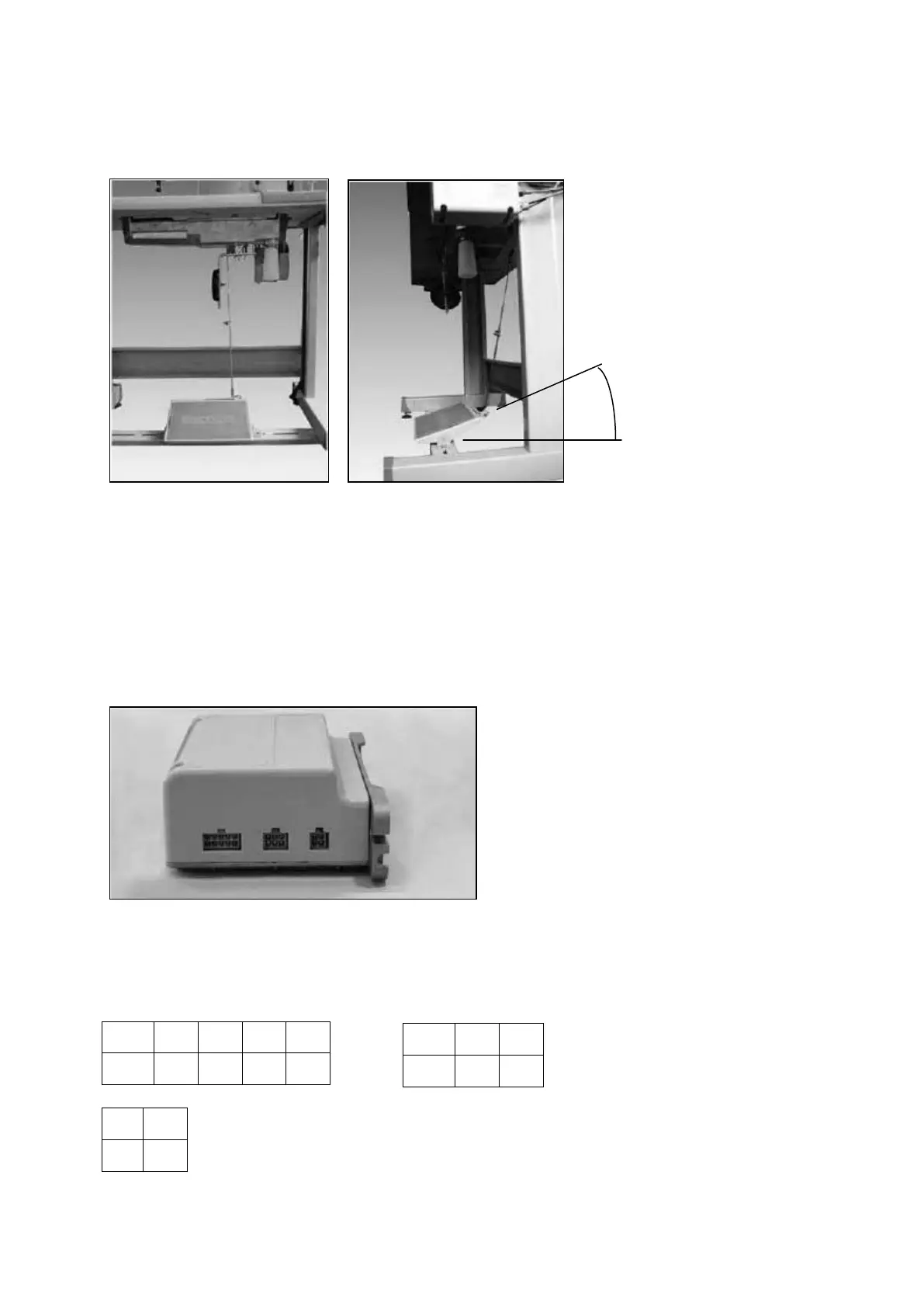

3.3 Installation of Pedal
Correct mounting of the pedal rod is in a vertical position between pedal and speed control
unit. Adjust the angle of the pedal to a 15 degree angle between pedal and the ground.
3.4 Connection of system power
Connect the power cord of the control box to a 220 Volt single phase power supply with
separate earth device. The power cord of the control box must be connected to earth safely.
Insert the plugs of motor, speed control unit an synchronizer (optional). Check all plugs on pins
pulled back. Finally, adjust the position of the plug covers to protect the connections of the
plugs.
Definition of the control box connections:
earth
U
V
W
5V
A
B
C
GND
UP
DN
5V
GND
Sign.
5V
GND
I I I I I I I I I I
rn
