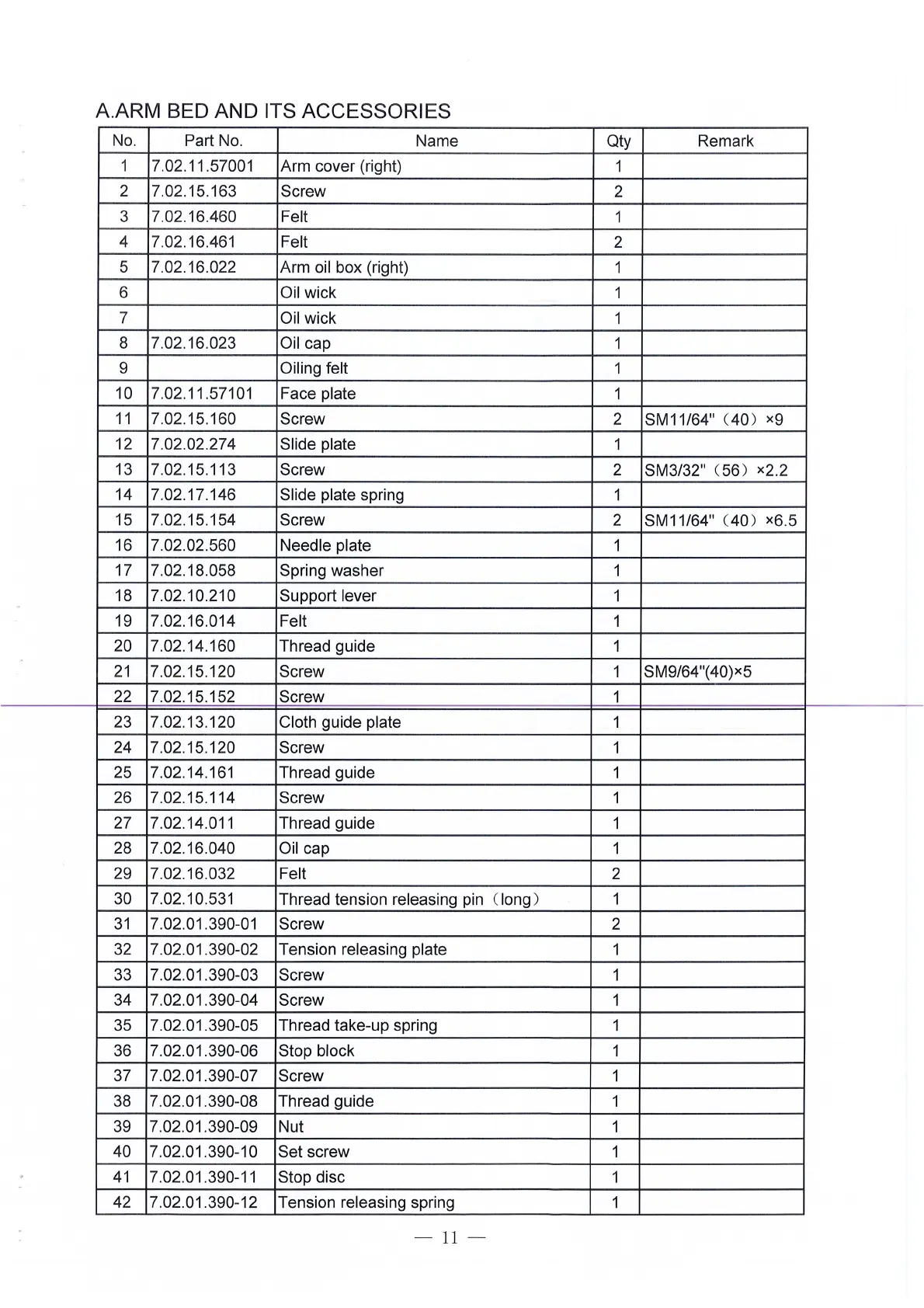

A.ARM BED AND ITS ACCESSORI ES
No. Part No.
Name Qty Remark
1 7.02.
11 .57001
Arm cover (right)
1
2 7.02.15.163
Screw
2
3
7. 02.16.460
Felt
1
4 7.02.16.461 Felt
2
5 7.02.16.022 Arm oil box (right)
1
6 Oil wick
1
7 Oil wick
1
8
7.02.
16 .023
Oil cap
1
9 Oiling felt
1
10 7.02.11 .57101
Face plate 1
11 7.02.15.160
Screw
2
SM11/64" (40) x9
12 7.02.02.274 Slide plate
1
13 7.02.15.113 Screw
2 SM3/32" ( 56 ) x2.2
14 7.02.17.146 Slide plate spring
1
15 7.02.15.154 Screw
2 SM11/64" (40) x6.5
16 7.02.02.560
Needle plate 1
17 7.02.18.058 Spring washer
1
18 7.02.10.210
Support lever 1
19 7.02.16.014
Felt 1
20 7.02.14.160
Thread guide 1
-
21 7.02.15.120
Screw 1
SM9/64"(40)x5
22 7.02.15.152 Screw
1
23 7.02.13.120
Cloth guide plate 1
24 7.02.15.120 Screw
1
25 7.02.14.161 Thread guide
1
26 7.02.15.114 Screw
1
27 7.02.14.011 Thread guide 1
28 7.02.16.040 Oil cap
1
29 7.02.16.032 Felt
2
30
7.02.10.
531
Thread tension releasing pin C long )
1
31 7.02.01 .390-01 Screw
2
32 7.02.
01 .390-02
Tension releasing plate 1
33
7.02.
01 .390-03
Screw 1
34 7.02.01 .390-04 Screw
1
35 7.02.01 .390-05 Thread take-up spring
1
36 7.02.
01 .390-06 Stop block
1
37 7.02.
01 .390-07 Screw
1
38 7.02.01 .390-08 Thread guide
1
39 7.02.01 .390-09 Nut
1
40 7.02.
01 .390-10
Set screw 1
,
41 7.02.01 .390-11 Stop disc
1
-
42 7.02.01 .390-12 Tension releasing spring
1
