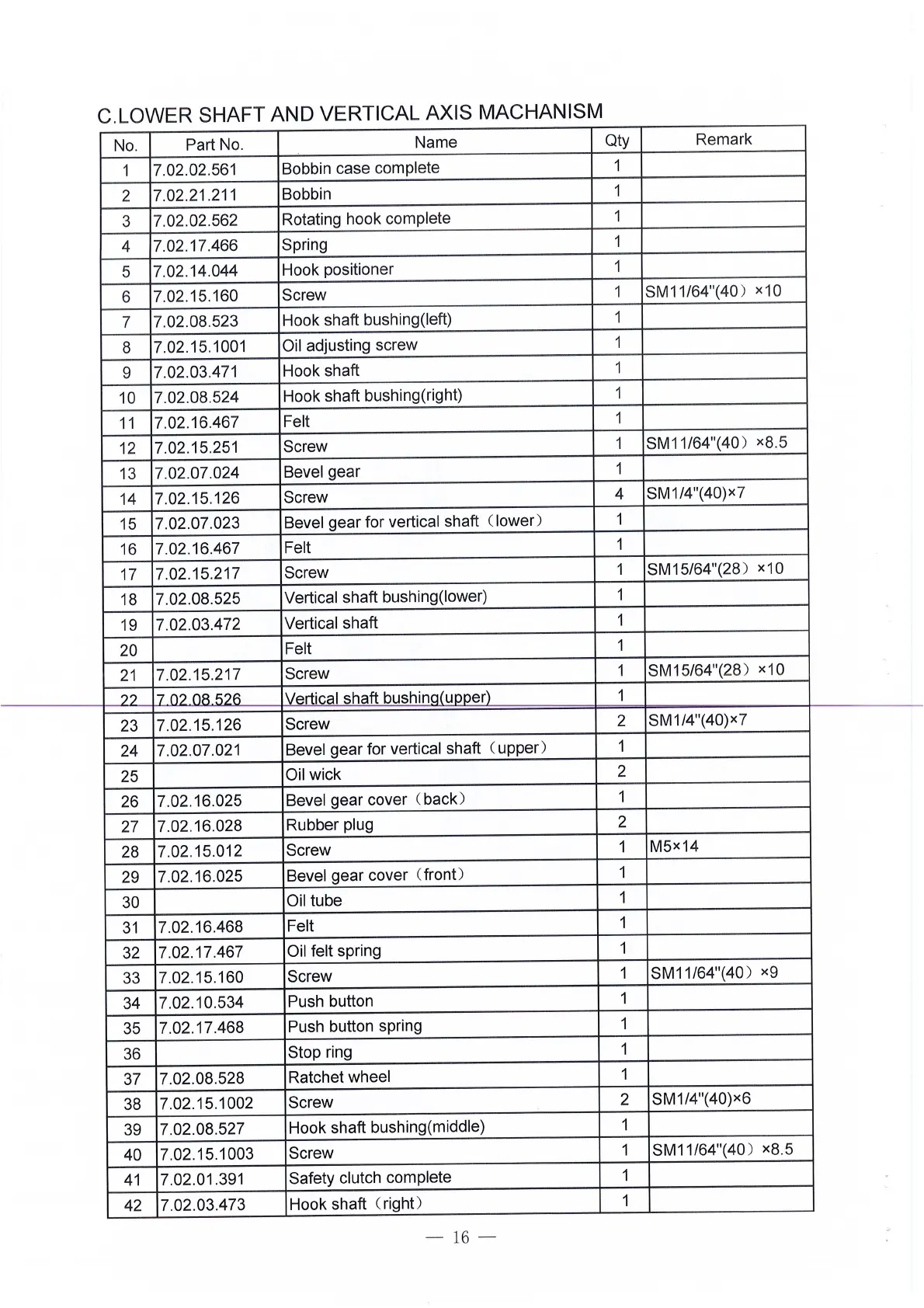

C.LOWER SHAFT AND VERTICAL AXIS MACHANISM
No. Part No.
Name Qty Remark
1 7.02.02.561 Bobbin case complete
1
2 7.02.
21
.
211
Bobbin 1
3
7.02.02.562
Rotating hook complete 1
4 7.02.17.466
Spring 1
5
7.02.14.044
Hook positioner 1
6
7.02.15.160 Screw
1 SM 11/64"(40)
x
1Q
7
7.02.08.523
Hook shaft bushing(left) 1
8
7.02.15.1001 Oil adjusting screw
1
9
7.02.03.471
Hook shaft 1
10
7.02.08.524 Hook shaft bushing(right) 1
11
7.02.16.467
Felt 1
12
7.02.15.251 Screw
1
SM11/64"(40)
x8.5
13
7.02.07.024 Bevel gear 1
14 7.02.15.126 Screw
4
SM1/4"(40)x7
15 7.02.07.023 Bevel gear for vertical shaft ( lower)
1
16
7 .02.16.467 Felt 1
17 7.02.15.217 Screw 1
SM15/64"(28)
x1Q
18 7.02.08.525
Vertical shaft bushing(lower) 1
19
7.02.03.472 Vertical shaft 1
20
Felt 1
21
7.02.15.217 Screw
1 SM 15/64"(28) x 10
??
7
n?
nA
&;?R
Vertical shaft bushina(uooer)
1
23 7.02.15.126 Screw
2
SM1/4"(40)x7
24
7.02.07.
021
Bevel gear for vertical shaft ( upper)
1
25 Oil wick 2
26 7.02.16.025 Bevel gear cover ( back) 1
27
7.02.16.028 Rubber plug 2
28
7.02.15.012 Screw 1
M5x14
29
7.02.16.025
Bevel gear cover ( fron
t)
1
30
Oil tube 1
31
7.02.16.468 Felt
1
32
7 .02.17.467 Oil felt spring 1
33 7.02.15.160 Screw
1
SM11/64"(40)
x9
34
7.02.10.534 Push button 1
35
7.02.17.468 Push button spring 1
36
Stop ring 1
37 7.02.08.528
Ratchet wheel
1
38
7.02.15.1002 Screw 2
SM1/4"(40)x6
39
7.02.08.527
Hook shaft bushing(middle)
1
40 7.02.15.1003 Screw 1 SM11/64"(40 )
x8.5
41
7.02.
01
.
391
Safety clutch complete 1
.
42
7.02.03.473 Hook shaft ( righ
t)
1
- 1
