STANDARD RESPONSE
AUTOMATIC SPRINKLERS
GL SERIES
INTERMEDIATE LEVEL
U
PRIGHT PENDENT
GLOBE
®
PRODUCT WARRANTY
Globe agrees to repair or replace any of its own manufactured
products found to be defective in material or workmanship for a
period of one year from date of shipment.
For specifi c details of our warranty please refer to Price List
Terms and Conditions of Sale (Our Price List).
ORDERING INFORMATION
• Quantity • SIN • Style • Orifi ce
• Thread Size • Temperature • Finishes desired
• Quantity - Wrenches - P/N 325390 (1/2”);
P/N 312366 (L.O.); P/N 333010 (E.L.O.)
SPECIFY
NOTE: METRIC CONVERSIONS ARE APPROXIMATE.
1
OTHER
FINISHES AVAILABLE ON SPECIAL ORDER.
SPECIFICATIONS
NOMINAL “K” FACTOR THREAD SIZE LENGTH FINISHES
5.6 (80 metric) 1/2”NPT (15mm) 2 1/4” (5.7cm)
Factory Bronze
1
8.0 (115 metric) 1/2”NPT (15mm) 2 1/4” (5.7cm)
8.0 (115 metric) 3/4”NPT (20mm) 2 7/16” (6.2cm)
11.2 (160 metric) 3/4”NPT (20mm) 2 7/16” (6.2cm)
APPROVALS

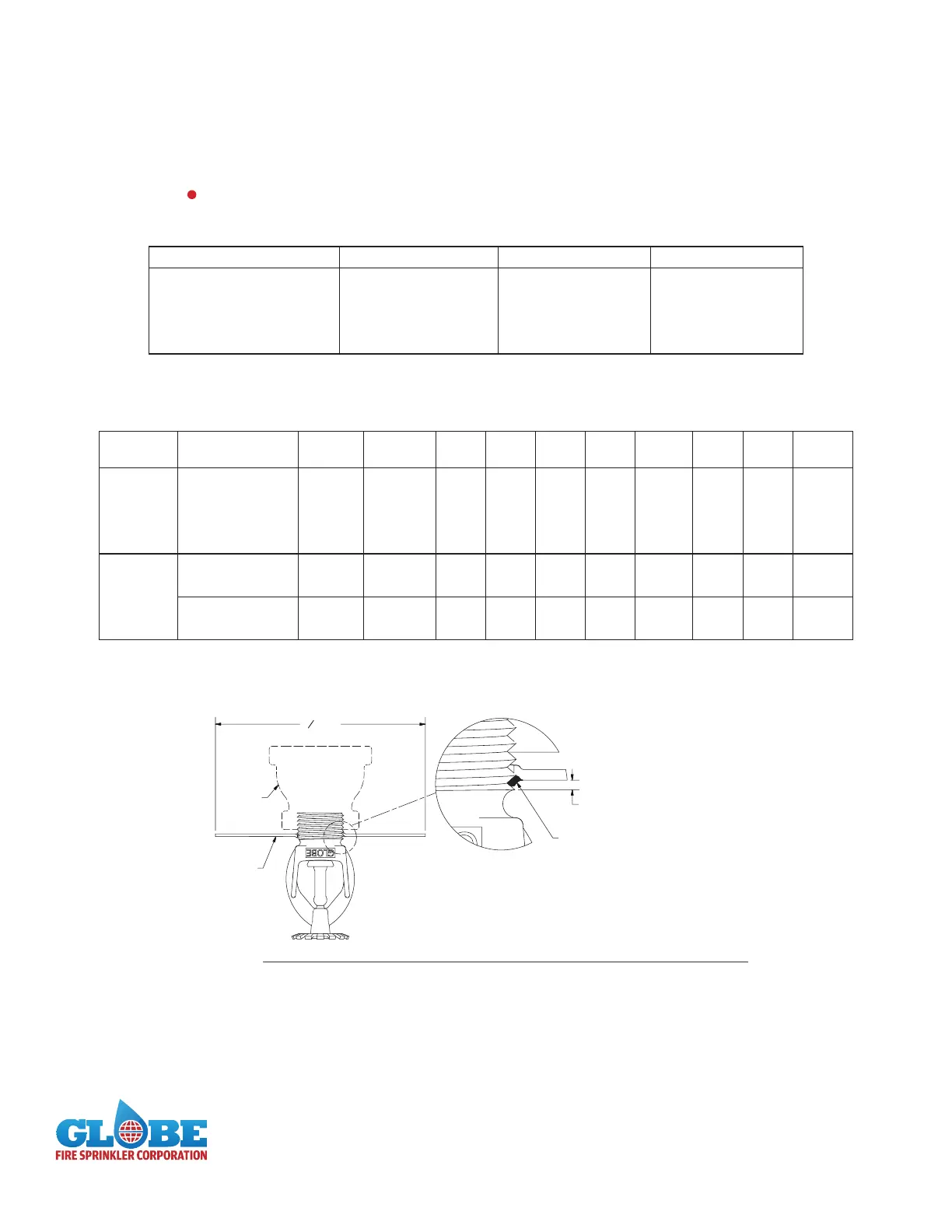

RACK SHIELD
1" x 1/2"
REDUCER
3
3
4
" DIA.
0 to ONE-HALF
THREAD MAX.
NOTE: INSTALL RACK SHIELD ONTO SPRINKLER THREADS BEFORE SYSTEM INSTALL.
ADHERE RACK SHIELD INTO PLACE AS SHOWN,
USING LOCTITE OR EQUIVALENT.
STYLE
SIN
(previous SIN)
"K"
FACTOR
HAZARD
1
135°F
(57°C)
155°F
(68°C)
175°F
(79°C)
200°F
(93°C)
286°F
(141°C)
cULus FM
SHIELD
P/N
UPRIGHT
GL5663 5.6
ALL
XXXX X XX
N/A
GL8163 8.0* XXXX X X---
GL8166 8.0 XXXX X XX
GL1168 11.2 --- X X X X X **X
$
PENDENT
GL5651
(GL5672) 5.6
ALL
XXXX X XX
325706
GL8151
(GL8172) 8.0* XXXX X X---
GL8156 (GL8158) 8.0
ALL
XXXX X XX
325707
GL1160 (GL1161) 11.2 --- X X X X X ---
$
THE WATER SHIELD FOR THE PENDENT MAY BE EITHER FACTORY FITTED OR INSTALLED IN THE FIELD, PLEASE SPECIFY ON ORDER.
1
SPRINKLERS SHALL BE LIMITED AS PER THE REQUIREMENTS OF NFPA13 AND ANY OTHER RELATED DOCUMENTS.
**NO FM APPROVALS FOR 175°F (79°C)
*1/2"NPT; RETRO-FIT ONLY
ALL: ALL HAZARDS
