Globe GL Series User Manual

APR 2017 GFS-520a (Formerly A-58)
NOTE: METRIC CONVERSIONS ARE APPROXIMATE.
1
FINISHES AVAILABLE ON SPECIAL ORDER.
2
cULus LISTED CORROSION RESISTANT WHEN SPECIFIED ON ORDER.
SPECIFICATIONS
APPROVALS
PRINTED U.S.A.
4077 AIRPARK DRIVE, STANDISH, MICHIGAN 48658
FAX 989-846-9231
www.globesprinkler.com
989-846-4583
1-800-248-0278
GLOBE
®
PRODUCT WARRANTY
Globe agrees to repair or replace any of its own manufactured
products found to be defective in material or workmanship for a
period of one year from date of shipment.
For specifi c details of our warranty please refer to Price List
Terms and Conditions of Sale (Our Price List).
QUICK RESPONSE
AUTOMATIC SPRINKLERS
GL SERIES DRY TYPE HORIZONTAL SIDEWALL
1
SPRINKLERS SHALL BE LIMITED AS PER THE REQUIREMENTS OF NFPA13 AND ANY OTHER RELATED DOCUMENTS.
*HORIZONTAL SIDEWALL STYLE - FM APPROVED 155°F (68°C), 200°F (93°C), AND 286°F (141°C)
*RECESSED HORIZONTAL SIDEWALL STYLE - FM APPROVED 155°F (68°C) AND 200°F (93°C)
LH: LIGHT HAZARD; OH: ORDINARY HAZARD
SIN MODEL
NOMINAL
“K” FACTOR
THREAD
SIZE
LENGTH FINISHES
GL5641 5.6 (80 metric) 1”NPT
cULus Variable to 48”
FM Variable to 36”
Factory Bronze
Chrome
White Polyester
2
Black Polyester
1,2
GL5642 5.6 (80 metric) 3/4”NPT
GL8141 8.0 (115 metric) 1”NPT
STYLE
SIN
MODEL
HAZARD
1
135°F
(57°C)
155°F
(68°C)
175°F
(79°C)
200°F
(93°C)
286°F
(141°C)
*FM cULus
DEFLECTOR
TO CEILING
DISTANCE
Inches (mm)
MIN.
DISTANCE
BETWEEN
SPRINKLERS
Feet (Meters)
Horizontal
Sidewall
Recessed
Horizontal
Sidewall
GL5641 LH X X X X X X X
4 (102)
to
12 (305)
6 (1.8)GL5642 LH X X X X X --- X
GL8141 LH/OH X X X X X --- X
"A"
1" MIN. 3/4"NPT
3/4" MIN. 1"NPT
2 1/2" DIA. MIN.
HOLE IN WALL
TEE FITTING
ANSI B16.3 CLASS 155 OR
ANSI 16.4 CLASS 125
FACE OF
MOUNTING
SURFACE
CEILING
4" TO 12"
3 1/2"
DIA.
3 3/4" MIN.
4 3/4" MAX.
FACE OF
TEE
FITTING
TWO PIECE
ESCUTCHEON
"A"
2 1/2" MIN. 3/4"NPT
2 1/4" MIN. 1"NPT
4" TO 12"
CEILING
FACE OF
MOUNTING
SURFACE
3" DIA.
1 1/2" DIA. MIN.
HOLE IN WALL
TEE FITTING
ANSI B16.3 CLASS 155 OR
ANSI 16.4 CLASS 125
1/4"
FACE OF
TEE
FITTING
TEE FITTING
ANSI B16.3 CLASS 155 OR
ANSI 16.4 CLASS 125
FACE OF
MOUNTING
SURFACE
"A"
3 1/4" MIN. 3/4"NPT
2 3/4" MIN. 1"NPT
1 1/4" MIN.
2" MAX.
2" DIA. MIN.
HOLE IN WALL
2 15/16" DIA.
4" TO 12"
CEILING
FACE OF
TEE
FITTING
CUP
RETAINER
"A"
1 3/4" MIN. 3/4"NPT
1 1/2" MIN. 1"NPT
1 3/4" DIA. MIN.
HOLE IN WALL
3 7/32" DIA.
2 1/2" MIN.
4" MAX.
TWO PIECE
ESCUTCHEON
FACE OF
MOUNTING
SURFACE
FACE OF
TEE
FITTING
TEE FITTING
ANSI B16.3 CLASS 155 OR
ANSI 16.4 CLASS 125
CEILING
4" TO 12"
ESCUTCHEON

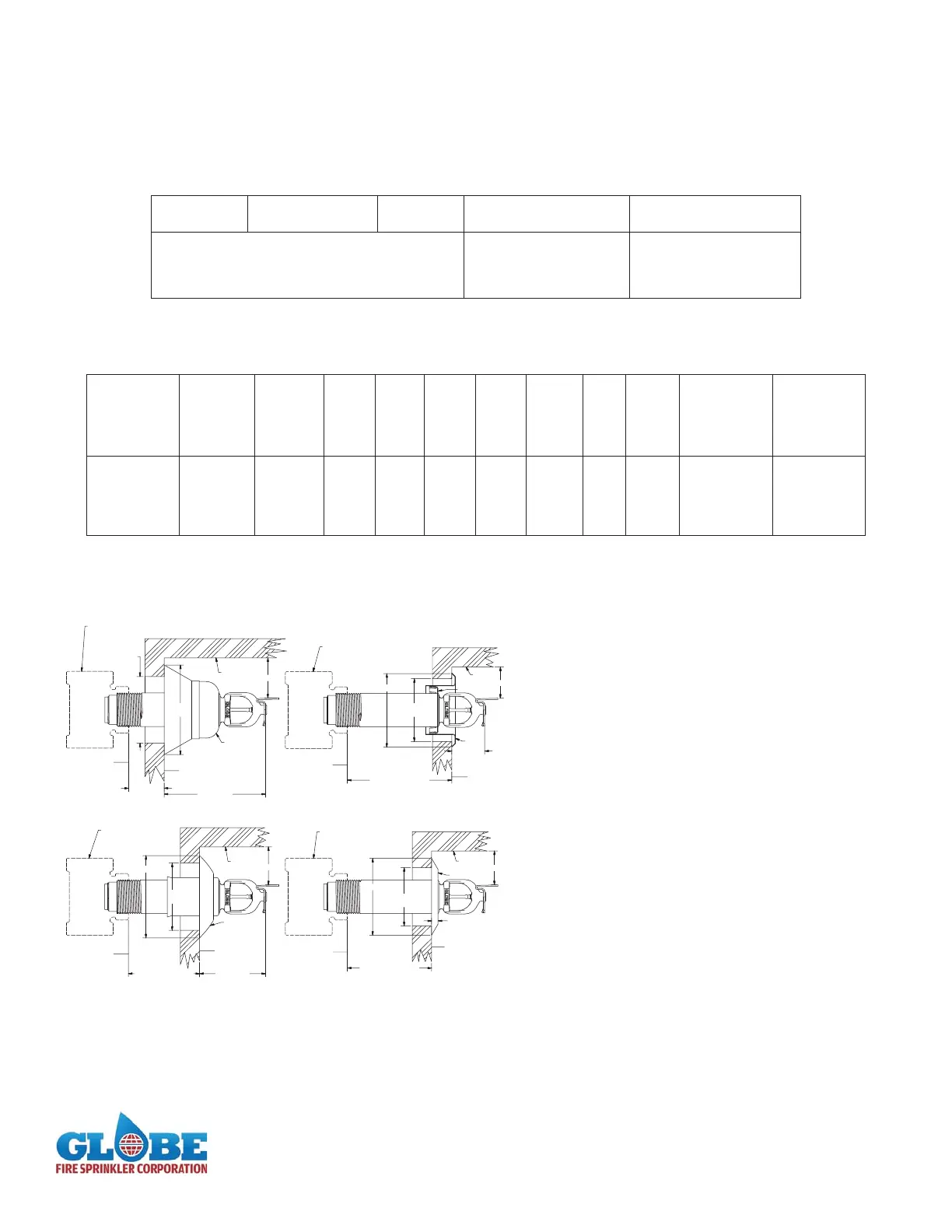

CROSS SECTIONS
EXTENDED
SLEEVE & SKIRT
RECESSED
SURFACE MOUNT
IMPORTANT INSTALLATION DATA
Globe GL Series Dry Pendent Sprinklers should be
installed in accordance with the requirements set
forth in NFPA 13. These sprinklers are to be installed
using a pipe wrench applied to the outer tube. When
this is not possible, the proper sprinkler head wrench
may be used with extreme care for lengths up to
approximately 18”. Excessive force may distort the
frame thus destroying the unit.
When installed in a wet system extending into a
freezing area see chart on Dry Caution Sheet for
minimum exposed barrel length to prevent ice
plugs. Please refer to our Dry Caution Sheet for further
important installation data.
ORDERING INFORMATION
• Quantity • Model Number • Style • Orifi ce
• Temperature • Finishes desired
• Quantity - Wrenches - P/N 333010
• Quantity Recessed Wrenches - P/N 337014
• Quantity - Protective Caps - P/N 327109-cap ( Friction Fit Recessed )
• Escutcheons Desired
• “A” Dimension - Distance from face of fi tting to the fi nished
ceiling line regardless of escutcheon used.
SPECIFY
