Glow-worm 30cx Installation And Servicing Guide

Supplied By www.heating spares.co Tel. 0161 620 6677
47
14 Fault Finding
13706

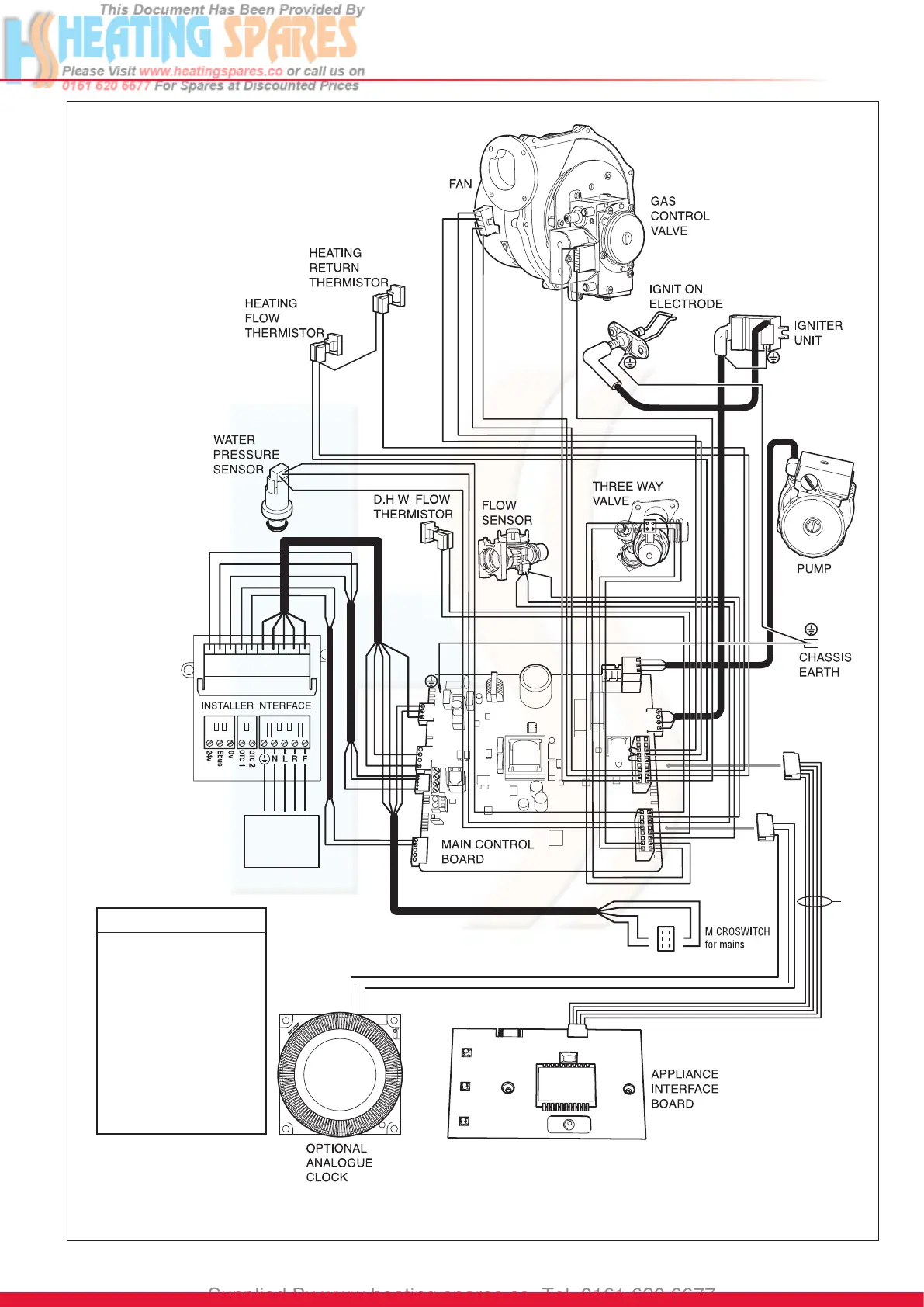

Diagram 14.4
2
1
4
3
6
5
REFER TO
SECTION 11
ELECTRICAL
CONNECTION
bk
r
bk
b
w
b
y
w
r
g/y
w
or
p
bk
g
pk
gy
w
gy
g
b
w
or
br
b
g/y
br
b
g/y
bk
r
g/y
w
b
r
bk
b
r
r
br BROWN
b BLUE
g/y GREEN/YELLOW
g GREEN
gy GREY
bk BLACK
y YELLOW
pk PINK
p PURPLE
or ORANGE
w WHITE
r RED
KEY
w
g/y
bk
b
r
br
b
w
r
bk

Glow-worm 30cx Specifications

General

Model	30cx
Category	Boiler
Output	30 kW
Efficiency Rating	A
ERP Rating	A
Dimensions (H x W x D)	740 x 418 x 300 mm
Mounting	Wall Mounted
Fuel Type	Natural Gas
Domestic Hot Water Output (kW)	30 kW
Central Heating Flow Temperature Range	30-80°C
Gas Type	Natural Gas
Water Pressure	0.5 - 3 bar
Type	Combination boiler
