MAINTENANCE
08/2012 14

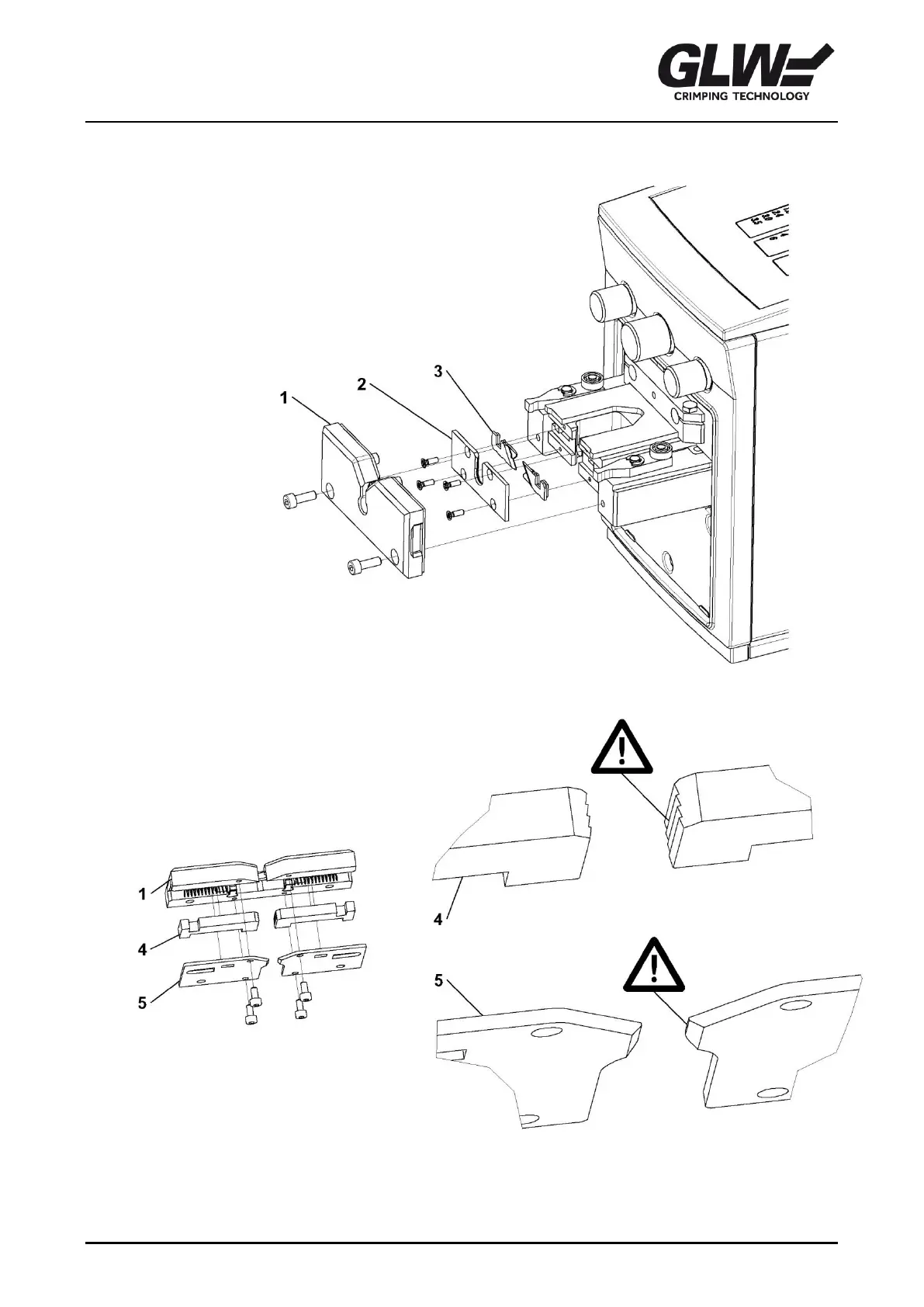

1. Changing the blades
Switch off the appliance and disconnect the power connector.
Remove the clamping jaw cassette (1).
Remove the blade cover (2).
Replace the stripping blade (3).
2. Changing the clamping jaws
Switch off the appliance and disconnect the power connector.
Remove the covers (5) of the clamping jaw cassette (1)
and replace the clamping jaws (4).
During assembly, pay attention that the clamping jaws and
covers are fitted in the correct position!
