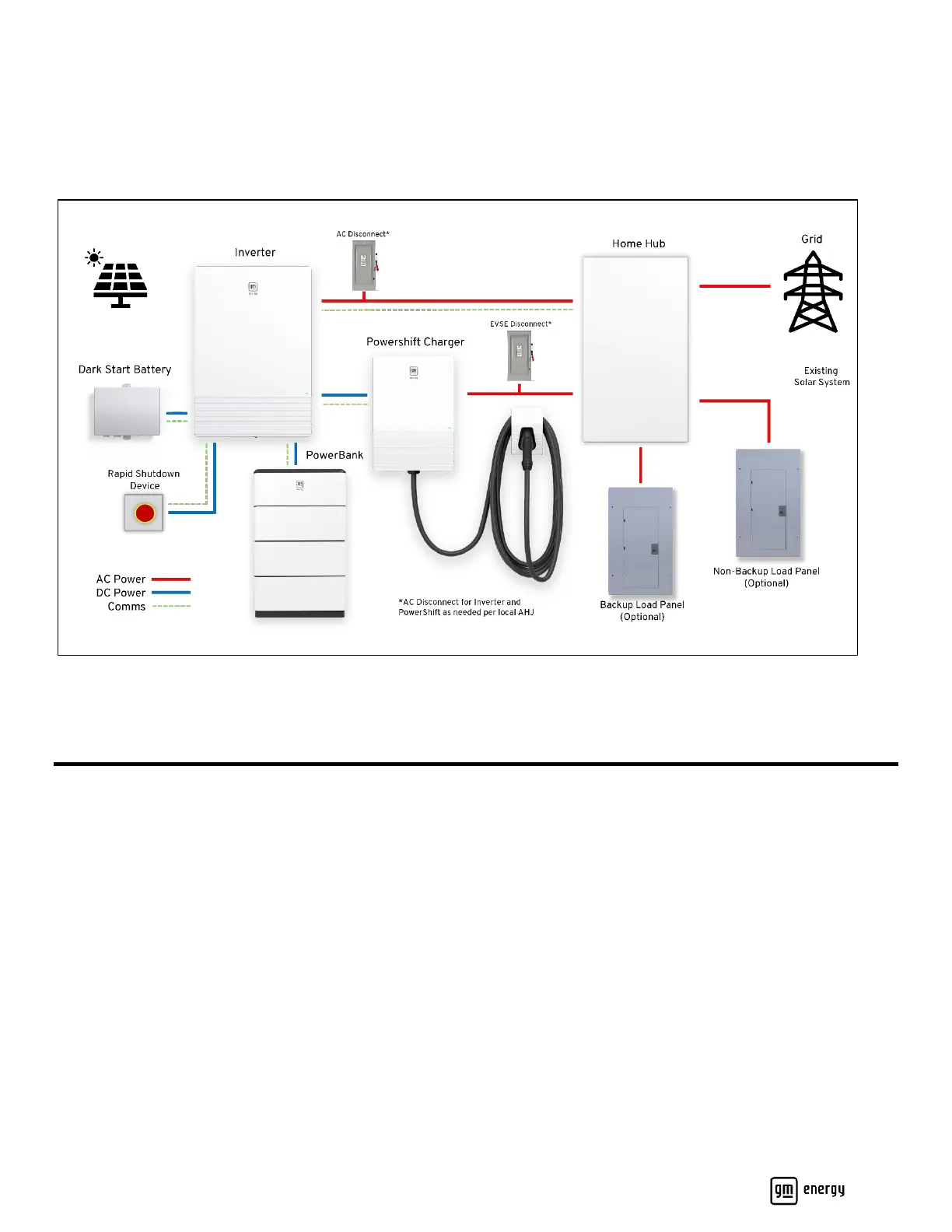

The following diagram depicts the equipment layout when all components are installed, and the Hub is configured as the
main service entrance (
Figure 1); this is a general system overview that includes optional components and is meant to show the connections
between components. Actual configuration is dependent on the installation environment and house configurations; e.g.,
the dark start battery is not required if PowerBank is included in the system.
Figure 1: System Overview
Tools, Materials, and Fasteners
Personal Protective Equipment (PPE) for various conditions will be required, and all installers must adhere to all safety
protocol. In addition to standard electrician and torque tools, a T20 Torx, a 9/32″ deep socket, and Allen wrenches are
also required. In addition, the installer shall provide all cables, conductors, and fasteners called out in subsequent
sections of this guide. All these items must conform to GM Energy specifications.
