5-13

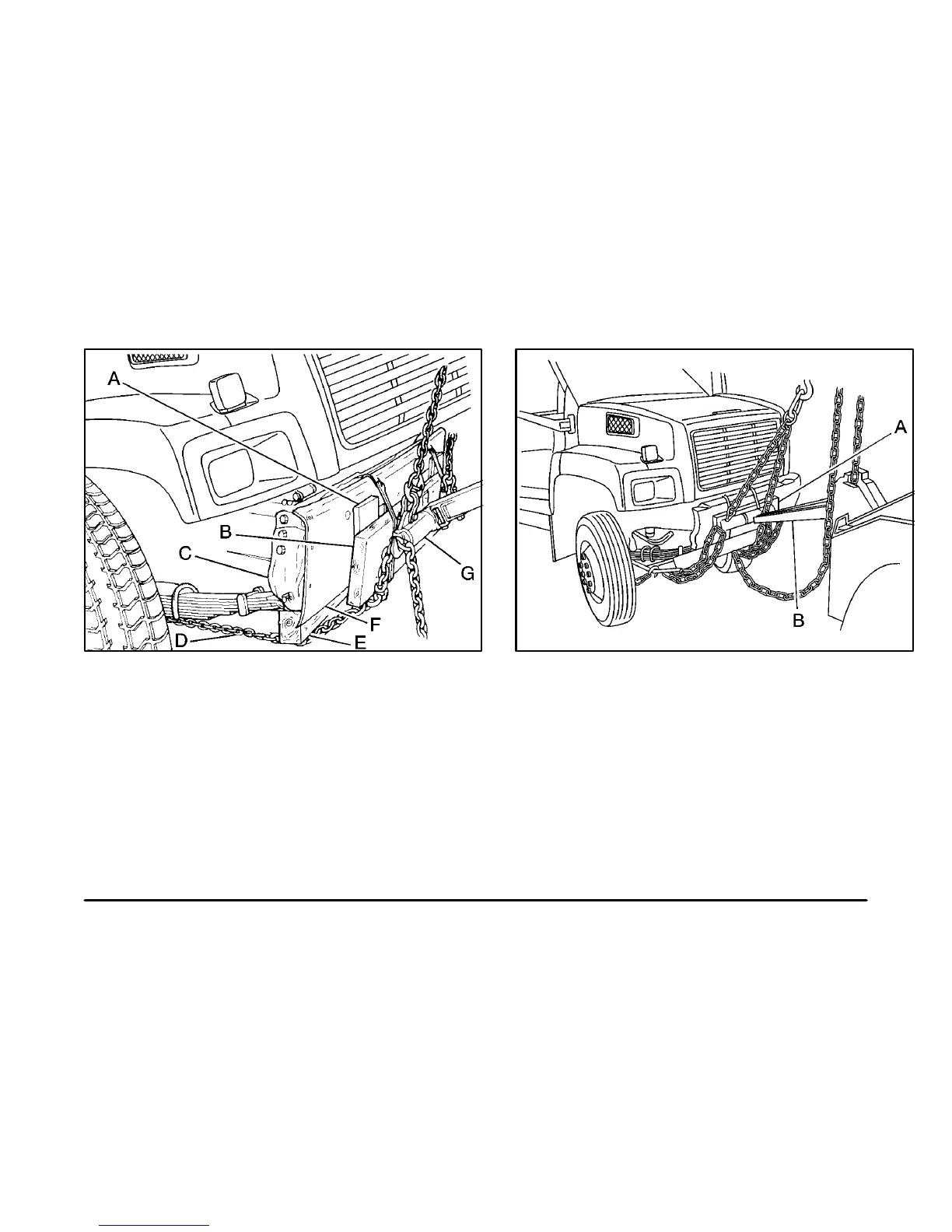

A. Rubber Pad
B. Hardwood Board
C. Shackle Bracket
D. Lift Chain
E. Hardwood Beam
F. Bumper
G. Tow Bar
4. Remove the remaining slack in the lift chains.
The tow bar swing arm should rest against
the 2” x 12” x 40” hardwood board as shown.
A. Hardwood Board
B. Swing Arm
5. Raise the vehicle to the required height.
