6-84

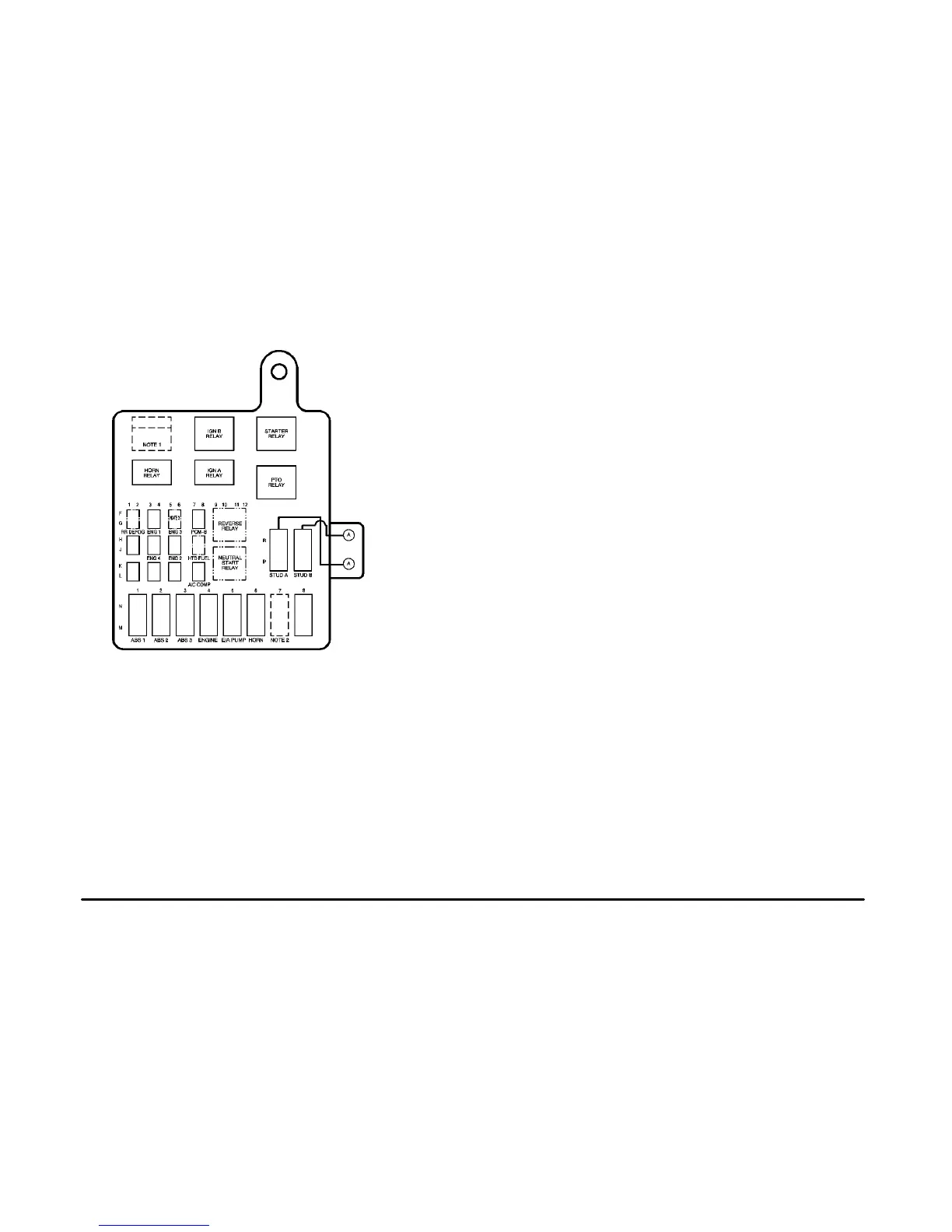

Primary Underhood Fuse Block
Relay Usage
NOTE 1 LG4 Powertrain Control Valve,
L18/LB7 Fuel Pump,
LG5 Heated Fuel
IGN B Ignition
STARTER Starter
Relay Usage
HORN Horn
IGN A Ignition
PTO Power Take
-Off
REVERSE Reverse
NEUTRAL
START
Neutral Start
Fuse Usage
RR DEFOG Rear Defog
ENG 1 Engine 1
ENG 3 Engine 3
PCM
-B Powertrain Control Module
BLANK Empty
ENG 4 Engine 4
ENG 2 Engine 2
HTD FUEL Heated Fuel
BLANK Empty
BLANK Empty
