Instruments and Controls 99

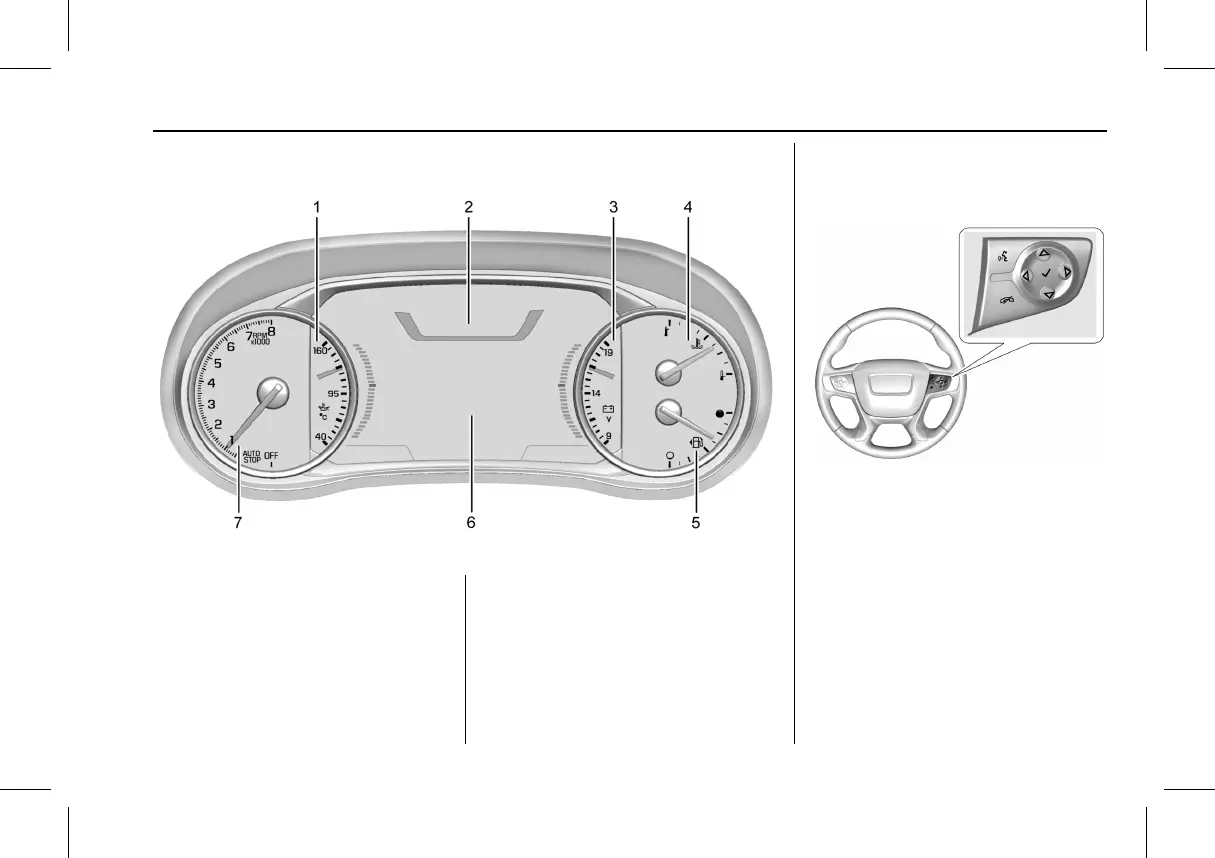

Instrument Cluster (Uplevel)
Uplevel
1. Engine Oil Temperature Gauge (Uplevel
only) 0 102
2. Speedometer 0 101
3. Voltmeter Gauge (Uplevel only) 0 103
4. Engine Coolant Temperature Gauge
0 102
5. Fuel Gauge 0 101
6. Driver Information Center (DIC) (Base
Level) 0 113 or
Driver Information Center (DIC)
(Midlevel and Uplevel) 0 116
7. Tachometer 0 101
Cluster Menu
There is an interactive display area in the
center of the instrument cluster.
Use the right steering wheel control to open
and scroll through the different items and
displays.
Press
o to access the cluster applications.
Use
w or x to scroll through the list of
available applications. Press
V to select. Not
all applications will be available on all
vehicles.
.
Info App. This is where the selected Driver
Information Center (DIC) displays can be
