GMC Motor Home User Manual

SWITCH OVERHEAD
LIGHT

SWITCH BATH LH
RANGE HOOD
KITCHEN LIGHT
REFRIGERATOR
SYSTEMS
MONITOR
PORCH
LIGHT
BREAKER SWITCH
AISLE LIGHT AT L .H . DINETTE
#8-COMPARTMENT
LIGHTS
5
LIGHTS @a .59A . PER LIGHT,
AISLE LIGHTS 3 LIGHTS
@a
.59A
., TOTAL 4 .72 AMP .
#7-FRT . VENT FAN 2 .8A ., RR . VENT
FAN
2 .8A .,
BATH . VENT FAN 2 .8A ., TOTAL 8 .4 AMP .
#6- MONITER
2 .5 AMP .
#5- REFRIGERATOR6 .0
A ., RECIRC . TOILET 4 .8A ., TOTAL 10 .8AMP .
#4- WATER PUMP 6 .2 AMP .
#2- LIGHTING -
L .H . READING 1 .50A ., PORCH .59A ., HALL 2 .88A .,
R .H . DINETTE 2 .88A ., STEP LIGHT
.59A ., TOTAL 8 .44 AMP .
FUSE BLOCK
R .H . READING
LIGHT
REAR ROOF VENT FAN
HALL LIGHT
THERMOSTAT
BATH VENT FAN
BATH LIGHT
#3-
FURNACE BLOWER 6 .1A ., RANGE BLOWER RANGE HOOD
AND LIGHTS 5 .5A ., KITCHEN LIGHT 1 .44A
., TOTAL 13.04 AMP .

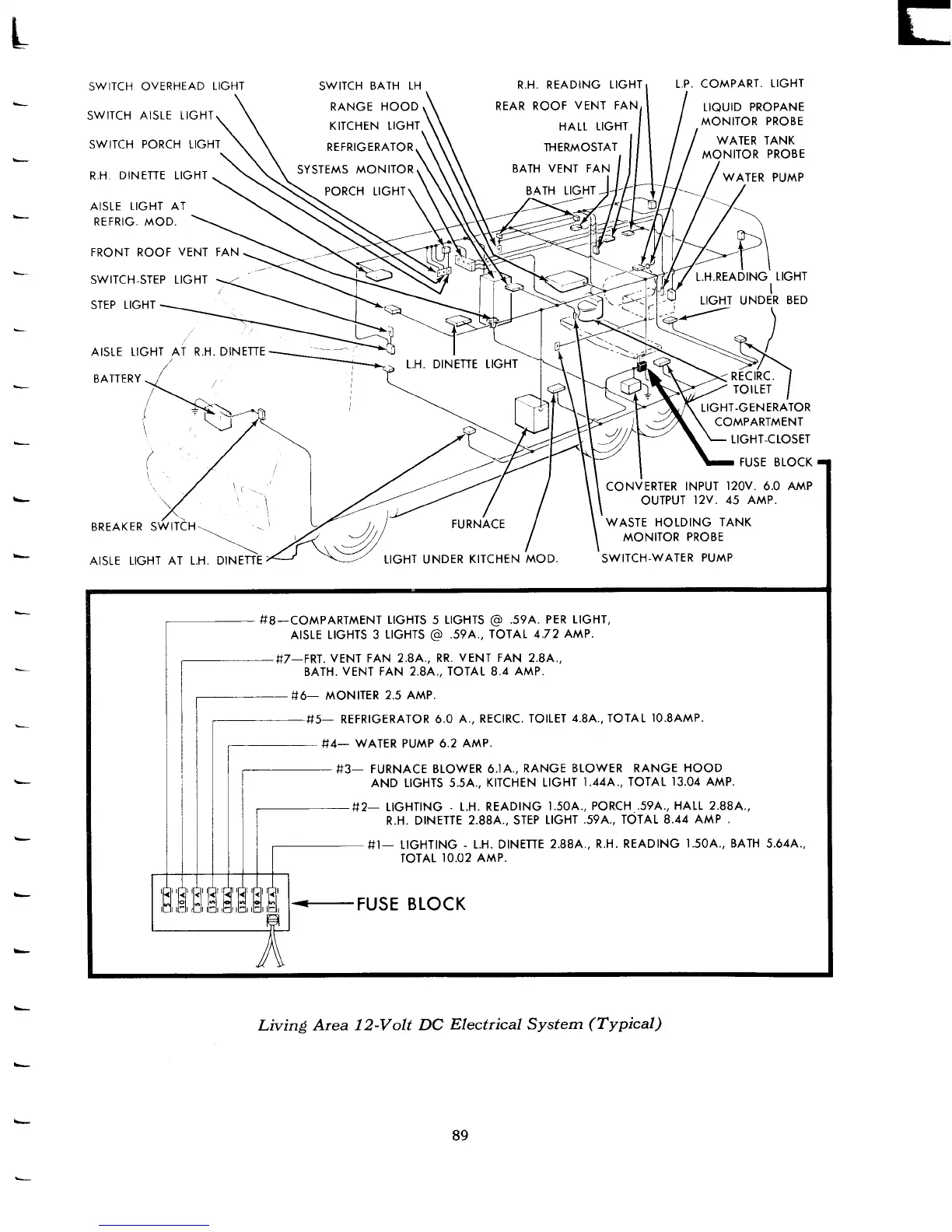

Living Area 12-Volt DC Electrical System
(Typical)
L .P .
WASTE HOLDING TANK
MONITOR
PROBE
COMPART . LIGHT
WATER TANK
MONITOR PROBE
WATER PUMP
CONVERTER INPUT 120V . 6 .0 AMP
OUTPUT 12V . 45 AMP .
#1- LIGHTING -
L .H . DINETTE 2 .88A ., R .H . READING 1 .50A ., BATH 5 .64A .,
TOTAL 10.02 AMP .
