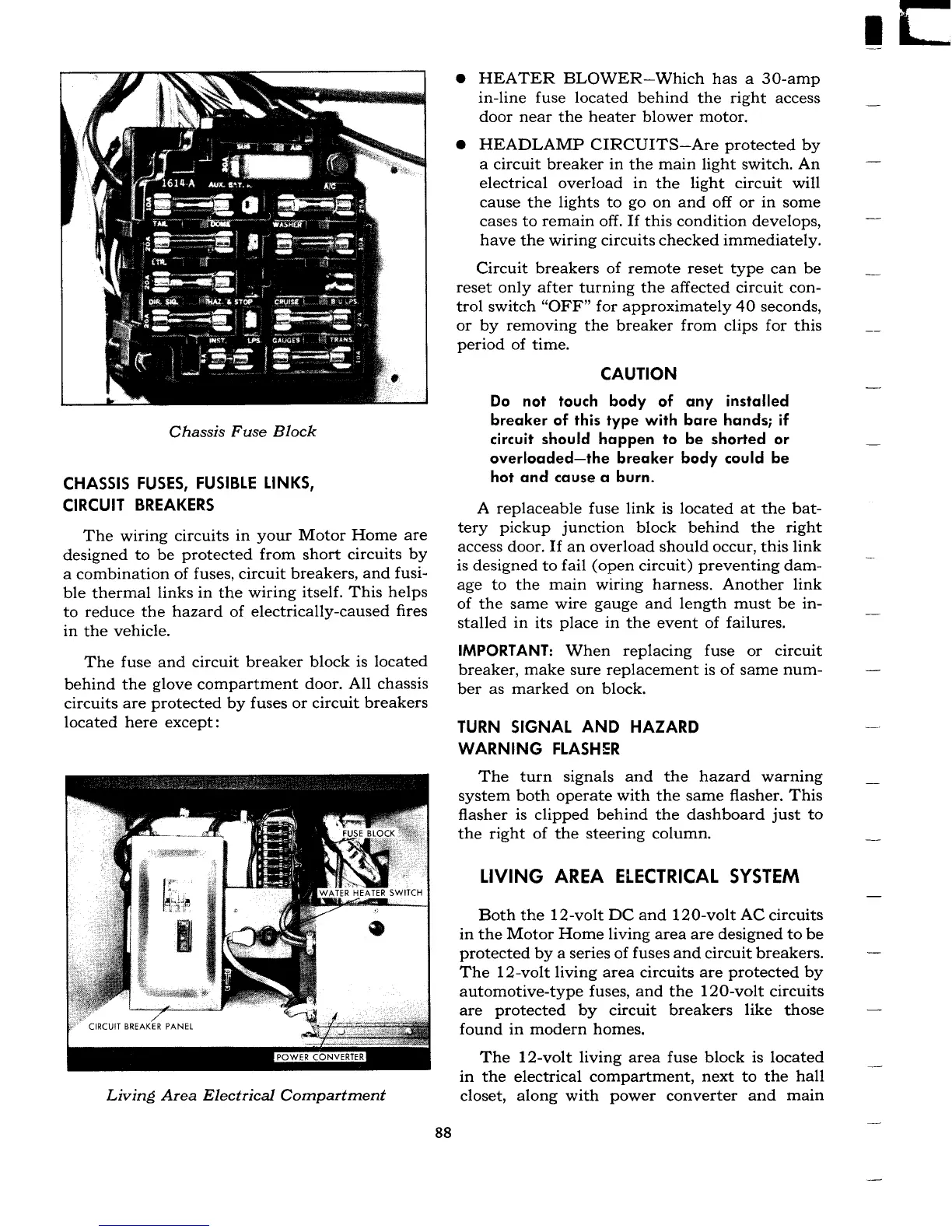

Chassis Fuse Block
CHASSIS FUSES,
FUSIBLE LINKS,
CIRCUIT
BREAKERS
The
wiring circuits in your Motor Home are
designed to be protected
from short circuits by
a combination of fuses, circuit
breakers, and fusi-
ble thermal links in the
wiring itself . This helps
to reduce the hazard of electrically-caused
fires
in the vehicle .
The fuse and circuit breaker block is located
behind the glove compartment door . All chassis
circuits are protected by fuses or circuit breakers
located here except :
Living Area Electrical Compartment
8 8
HEATER
BLOWER-Which has a 30-amp
in-line fuse located behind the right access
door near the heater blower motor .
HEADLAMP CIRCUITS-Are protected by
a circuit breaker in the main light switch . An
electrical overload in the light circuit will
cause the lights to go on and off or in some
cases to remain off . If this condition develops,
have
the wiring circuits checked immediately .
Circuit breakers of remote reset type can be
reset
only
after turning the affected circuit con-
trol switch "OFF" for approximately 40 seconds,
or by removing the breaker from clips for this
period of time .
CAUTION
Do not touch body of any installed
breaker of this type with bare hands ; if
circuit should happen to be shorted or
overloaded-the breaker body could be
hot and cause a burn .
A replaceable fuse link
is
located at the bat-
tery pickup junction block behind the right
access door . If an overload should occur, this link
is designed
to
fail (open
circuit)
preventing dam-
age to the main wiring harness . Another
link
of the same wire gauge and length must be in-
stalled in its place in the event of failures .
IMPORTANT : When replacing fuse or circuit
breaker, make sure replacement is of samenum-
ber as marked on block .
TURN SIGNAL
AND
HAZARD
WARNING FLASHER
The turn signals and the hazard warning
system both operate with the same flasher . This
flasher is clipped behind the dashboard just to
the right of the steering column .
LIVING AREA ELECTRICAL SYSTEM
Both the 12-volt DC and 120-volt AC circuits
in the Motor Home living area are designed to be
protected by a series of fuses and circuit breakers .
The
12-volt living area circuits are protected by
automotive-type fuses, and the
120-volt circuits
are protected by circuit breakers like
those
found in modernhomes .
The 12-volt living area fuse block is located
in the electrical compartment, next to the hall
closet, along with power converter and main
