data sheet : 06.005 - 2/2
RUPTURE VALVE AND DISTRIBUTOR "3010"

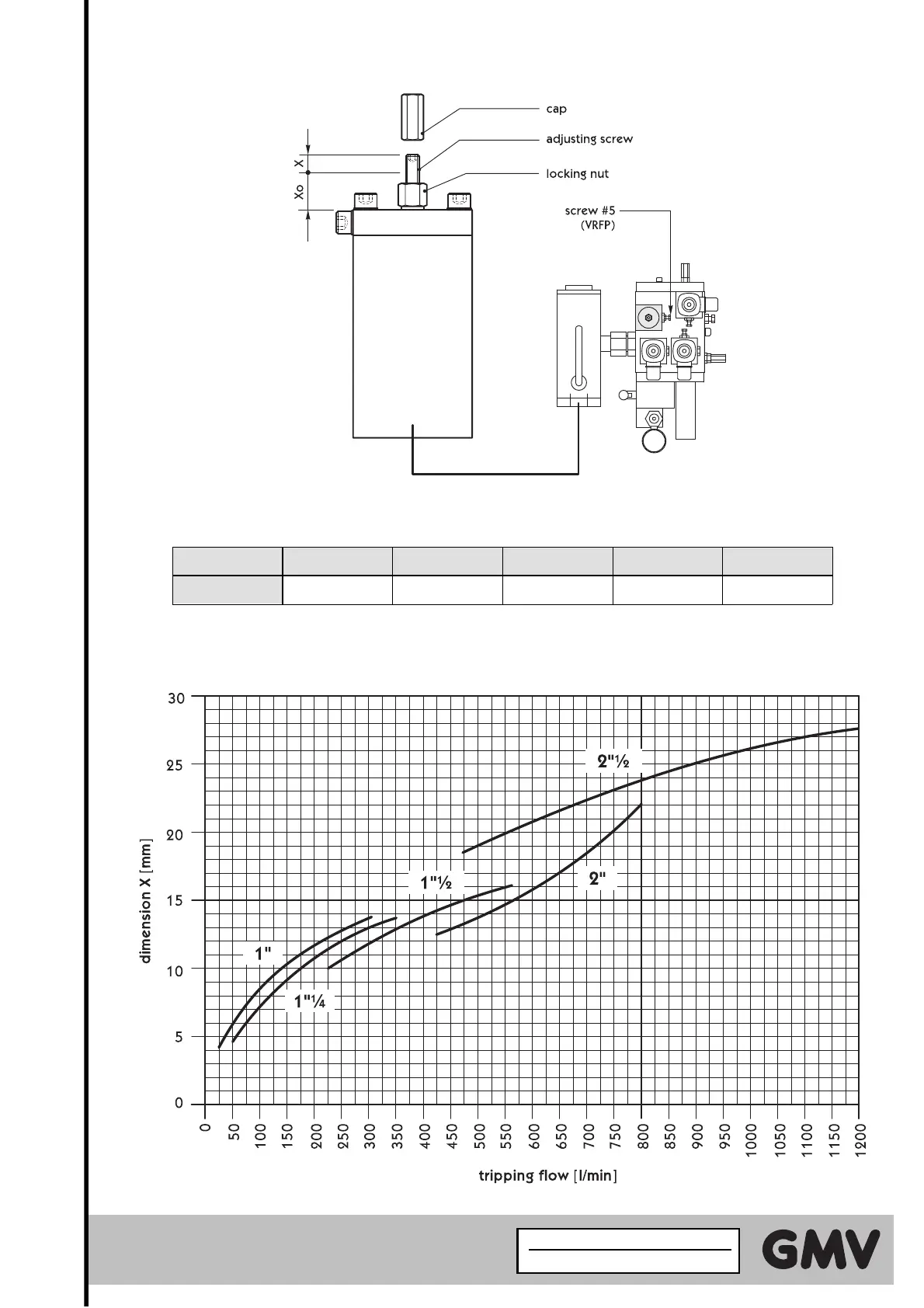

DIAGRAM FOR VC 3006 ADJUSTMENT
Table of quote “Xo” (indicative) according to the valve size
valve size 1" 1" 1/4 1" 1/2 2" 2" 1/2
Xo [mm] 13,5 14 13,5 11,0 22,0
date : 14.01.1998
INSTRUCTION FOR
RUPTURE VALVE SETTING
