gofanco CAT5E - Transmitter Connections and Indicators; HDMI Input and IR Ports; RJ45 Output and LEDs

4

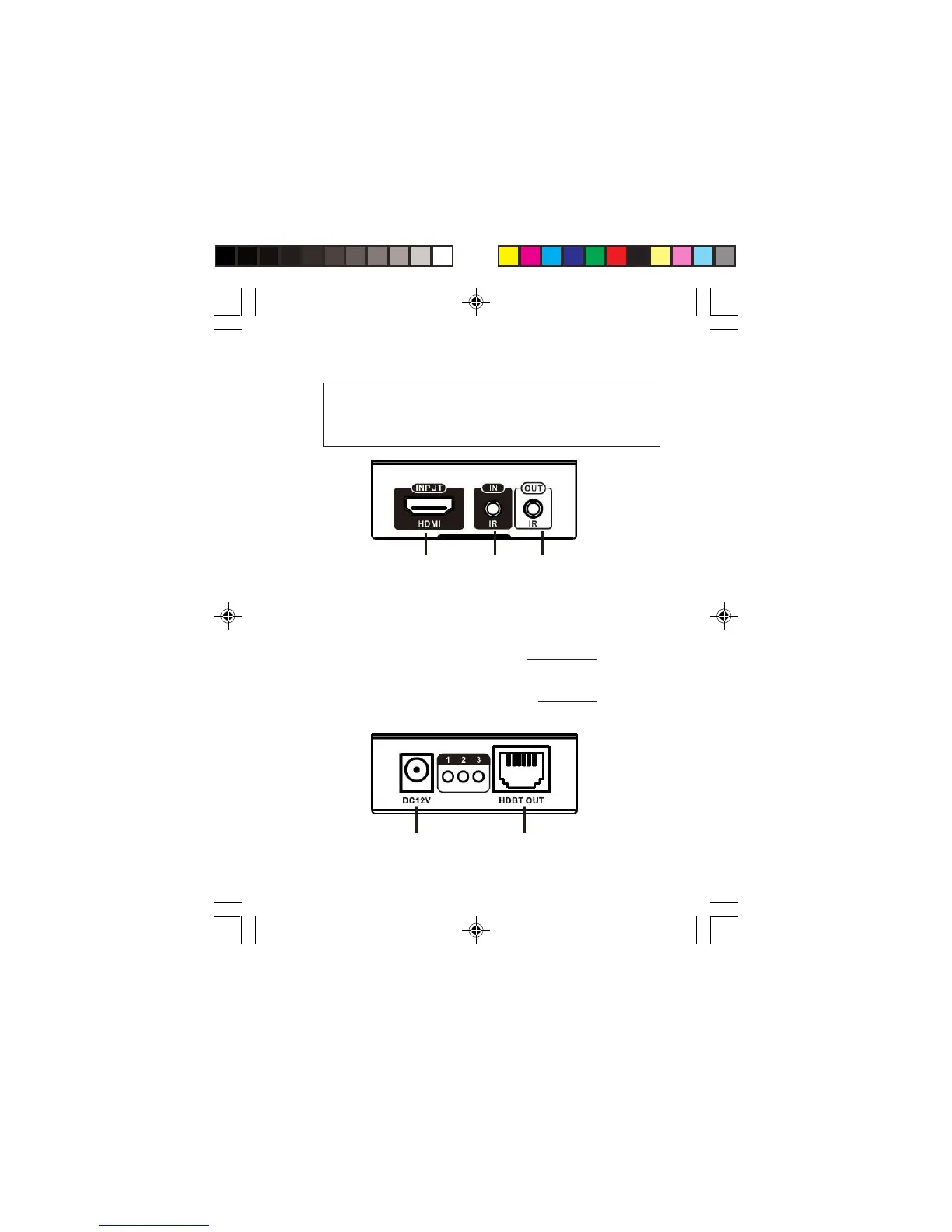

Figure 1: Transmitter (TX) - HDMI Device Input
HDMI In
IR Out
• HDMI In: Connect your HDMI source here with an HDMI
cable (cable not included)
• IR In: Infrared 3.5mm socket. Plug IR Receiver extension
cable here. See instructions on page 7.
• IR Out: Infrared 3.5mm socket. Plug IR Blaster extension
cable here. See instructions on page 7.
Layout
Figure 2: Transmitter (TX) - RJ45 Output
IR In
Power Jack RJ45
1: Power LED
2: Link LED
3: LED Indicator
Note: With PoE technology, only one power adapter
is needed to power both the Transmitter and
Receiver.
