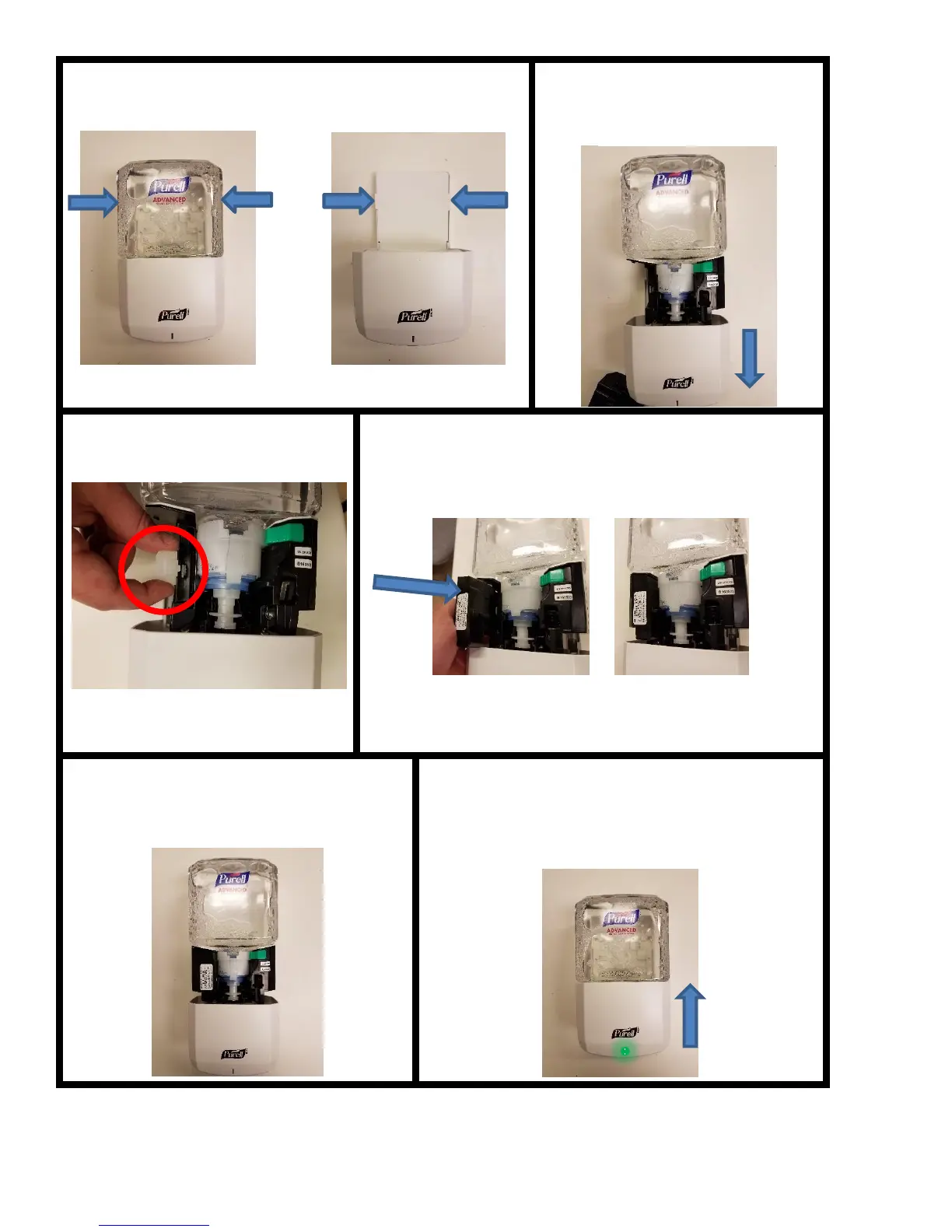

Gojo 8 Series - Release Bottom Cabinet Portion; Expose Pumphouse; Remove Connector Cover; Insert Transmitter Module

1.
2.
3.
4.
5.
6.
Slide the bottom portion of the cabinet up
Wait 5 seconds for a flashing green LED. If
red or no LED, open the cabinet to check for
incorrectly installed refill or other issues.
.
Load the dispenser with the
appropriate product refill if
needed.
Press both cabinet latches to release the bottom
portion of the cabinet.
Remove the connector
cover from the pumphouse.
Insert the module into the left side of the
pumphouse, pushing the front face until the
module snaps into place.
Slide the bottom of the
cabinet down to expose
the pumphouse.
