Gold unitflame GBC873W - Parts and Hardware; Exploded View and Parts List; Assembly Hardware and Tools

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Hardware
A
Screw
M4x8 Nickel Plated Phillips Truss Head
20 pcs
B
Screw
M6x15 Nickel Plated Phillips Truss Head
29 pcs
C
Screw
M6x15 Nickel Plated Hex Head
21 pcs
D
Screw
M6x46 Nickel Plated Phillips Truss Head
11 pcs
E
Nut
M6 Zinc Plated
7 pcs
F
Washer
ø6.5 Nickel Plated
8 pcs
G
AAA Batteries 2 pcs
Tools Required for Assembly (Included)
#1 Phillips Head Screwdriver
#2 Phillips Head Screwdriver
M10-M6 Wrench
1
2
6
12
10
13
9
20
19
11
15
23
24
Parts List
1
Warming Rack
55-07-551
2
Cooking Grid (3)
55-07-501
3
Heat Plate (3)
55-08-076
4
Grease Tray
55-07-509
5
Thermometer
55-07-547
6
Basket (2)
55-08-067
7
Tool Hook (8)
55-07-549
8
Towel Bar (2)
55-07-548
9
Left Side Shelf Side
55-08-081
10
Left Side Shelf
55-08-079
11
Grill Body Assembly
55-08-074
12
Side Burner Grid
55-07-543
13
Left Side Shelf Front
55-08-080
14
Digital Timer
55-08-073
15
Infrared Back Burner
55-07-513
16
Main Burner (3)
55-08-086
17
Sear Burner
55-08-109
18
Side Burner
55-08-110
19
Right Side Shelf
55-08-094
20
Right Side Shelf Side
55-08-096
21
Grease Cup
55-07-507
22
Grease Cup Support
55-07-508
23
Regulator
55-08-091
24
Right Side Shelf Front
55-08-095
25
Control Knob Support (6)
55-08-071
26
Control Knob (6)
55-08-070
27
Basket Support A (4)
55-08-065
28
Basket Support B (2)
55-08-066
29
Left Cart Panel
55-08-077
30
Rear Cart Panel
55-08-090
31
Tank Retainer Wire
55-07-522
32
Right Cart Panel
55-08-092
33
Left Door
55-08-078
34
Door Handle (2)
55-08-011
35
Right Door
55-08-093
36
Lighting Rod
55-07-520
37
Front Cart Support
55-07-505
38
Base Cart Panel
55-08-064
39
Left Skirt
55-08-082
40
Locking Wheel (2)
55-07-528
41
Wheel (2)
55-07-506
42
Right Skirt
55-08-097
43
Center Skirt
55-08-069
44
LP Gas Tank Tray
55-08-085

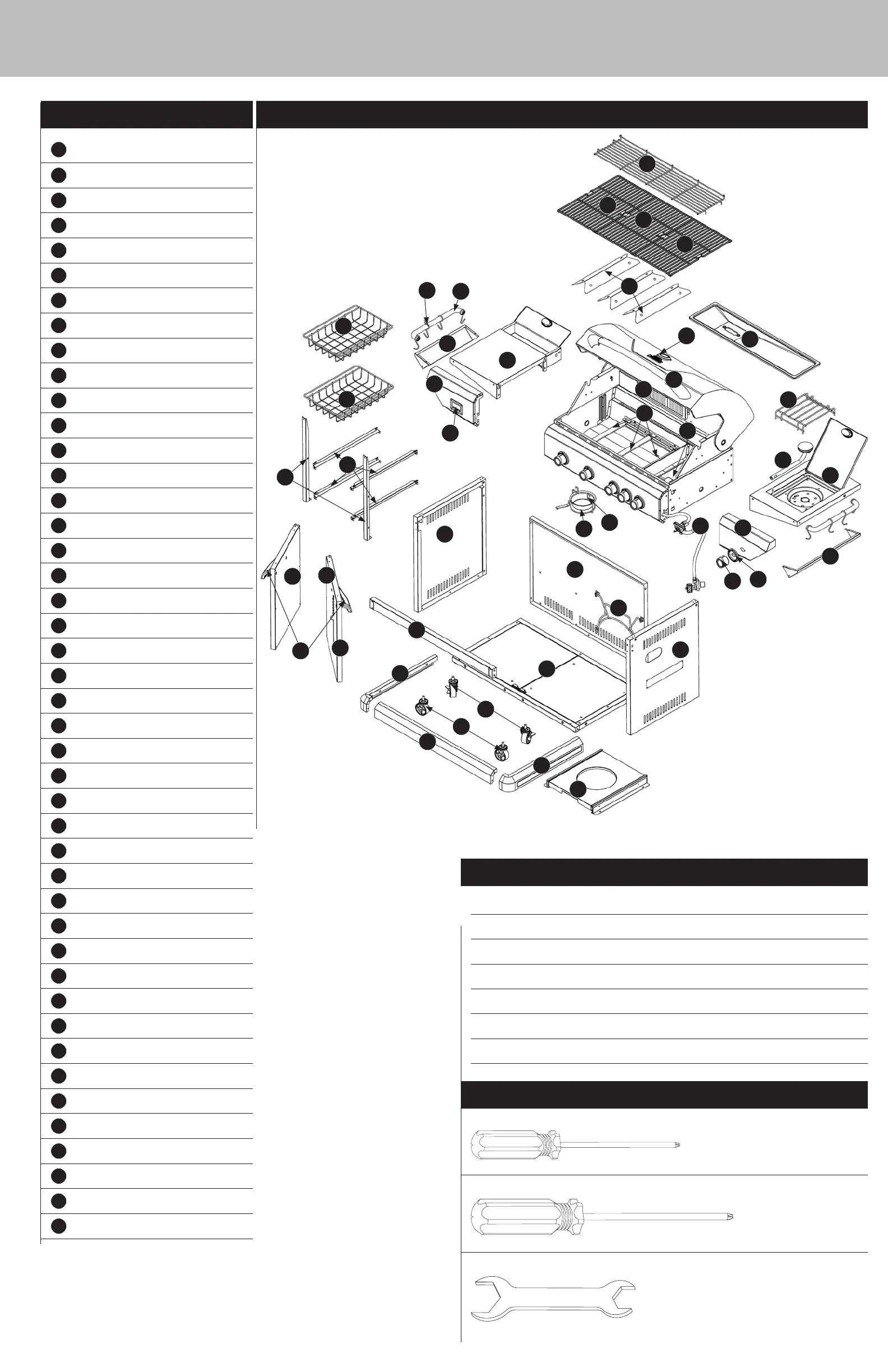

Exploded View
5
4
18
2
2
29
30
31
32
37
33
35
36
39
42
43
44
3
7
8
25
16
17
28
26
27
21
22
38
34
40
41
14
6
