golden interstar ALPHA X User Manual

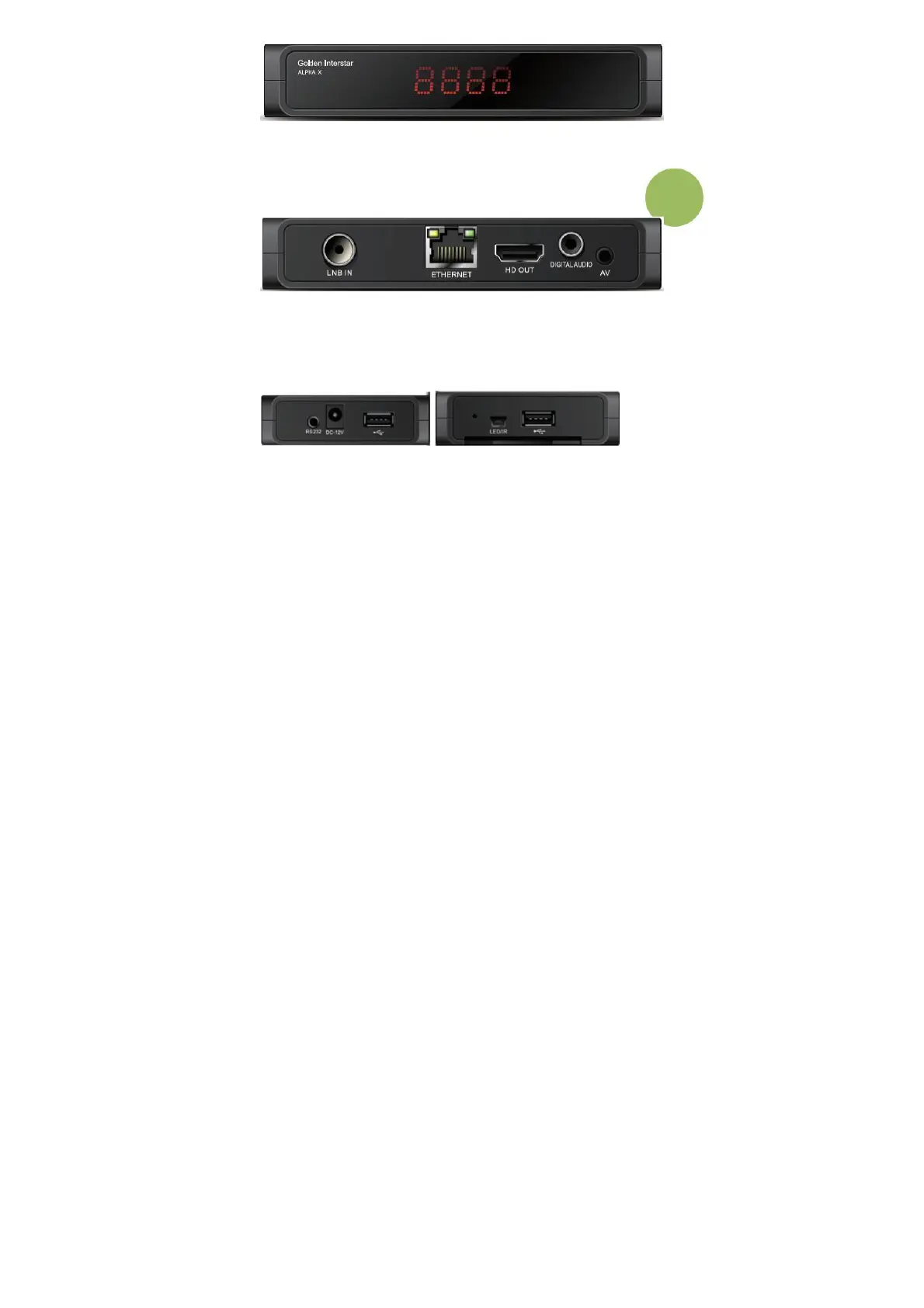

- FRONT PANEL:
Digital channel / time display
Displays the current channel number or time (depending on the menu setting)
LED status indicator
Displays the current status of the receiver (red / green)
Receiver of IR signals
The sensor of the IR signals from remote control
13
- REAR AND SIDES PANELS:
LNB IN
SAT antenna connection
AV
Composite AV output for TV-set connection
DIGITAL
AUDIO Digital audio output
HD OUT
HD OUT - high quality digital audio and video output
RS232 (on the left side)
For connection to PC (computer) via RS232 serial port
DC-12V (on the left side)
Power socket. Attention! You must use the original power adapter included in the box!
Output adapter: 12 volt direct current, 1.5A
LED/IR (on the right side)
To connect the external IR sensor with LED display
2 USB ports (located on two side panels)
Can be used to play media files, update software and work with USB-WIFI / 3G dongles

golden interstar ALPHA X Specifications

General

Standby Power	<0.5W
Audio Output	HDMI, AV
Video Output	AV
Supported Resolution	1080p
Video Decoding	H.264
Supported File Formats	AVI, MKV, MP4, TS
