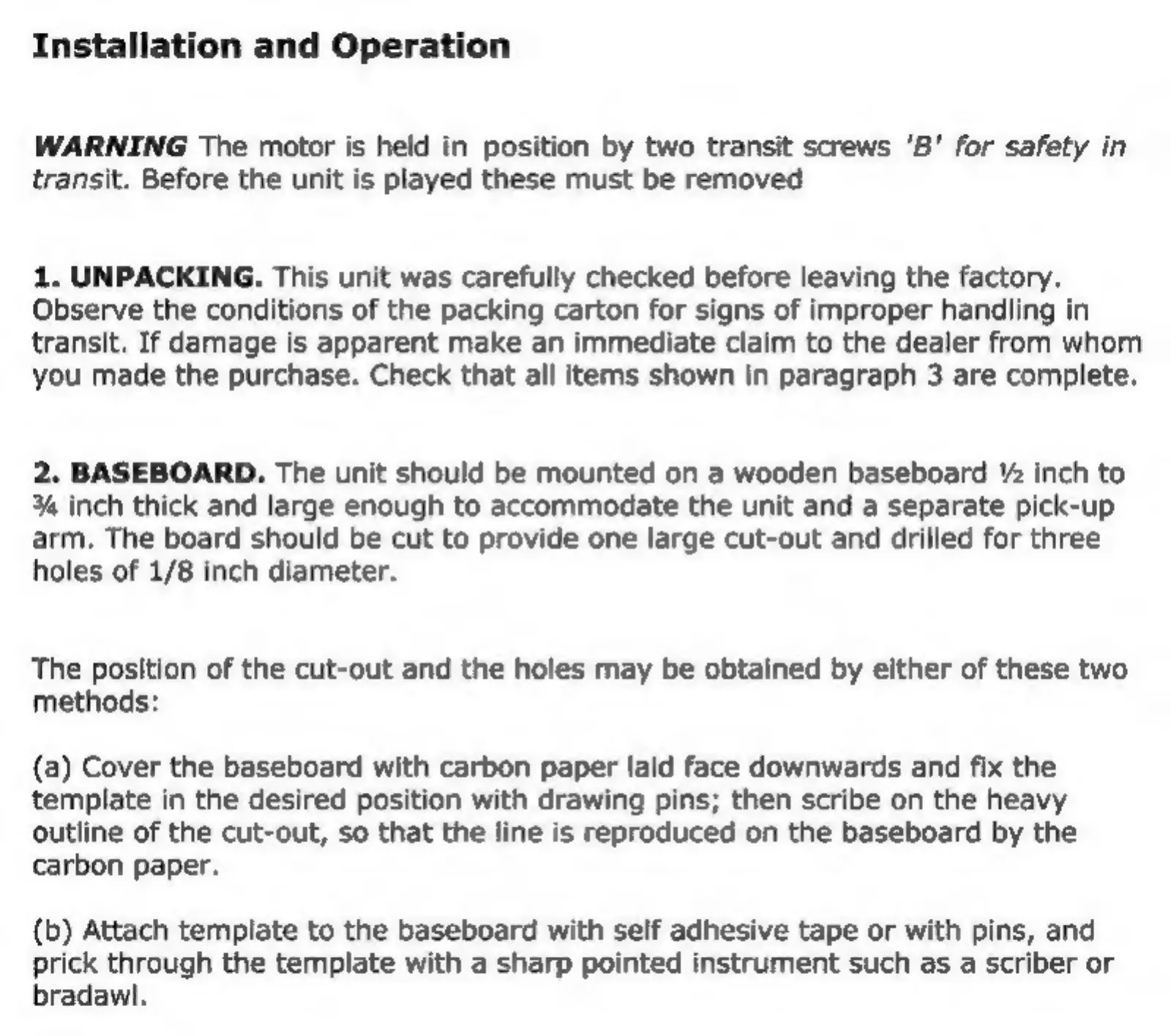

Installation

and

Operation

WARNING

The

motor

is

held

in

position

by

two

transit

screws

'B'

for

safety

in

transit.

Before

the

unit

is

played

these

must

be

removed

1.

UNPACKING.

This

unit

was

carefully

checked

before

leaving

the

factory.

Observe

the

conditions

of

the

packing

carton

for

signs

of

improper

handling

in

transit.

If

damage

is

apparent

make

an

immediate

claim

to

the

dealer

from

whom

you

made

the

purchase.

Check

that

all

items

shown

in

paragraph

3

are

complete.

2.

BASEBOARD.

The

unit

should

be

mounted

on

a

wooden

baseboard

¥2

inch

to

%

inch

thick

and

large

enough

to

accommodate

the

unit

and

a

separate

pick-up

arm.

The

board

should

be

cut

to

provide

one

large

cut-out

and

drilled

for

three

holes

of

1/8

inch

diameter.

The

position

of

the

cut-out

and

the

holes

may

be

obtained

by

either

of

these

two.

methods:

(a)

Cover

the

baseboard

with

carbon

paper

laid

face

downwards

and

fix

the

template

in

the

desired

position

with

drawing

pins;

then

scribe

on

the

heavy

outline

of

the

cut-out,

so

that

the

line

is

reproduced

on

the

baseboard

by

the

carbon

paper.

(b)

Attach

template

to

the

baseboard

with

self

adhesive

tape

or

with

pins,

and

prick

through

the

template

with

a

sharp

pointed

instrument

such

as

a

scriber

or

bradawl.
