Goldring G99 - Technical Specifications; Physical Dimensions

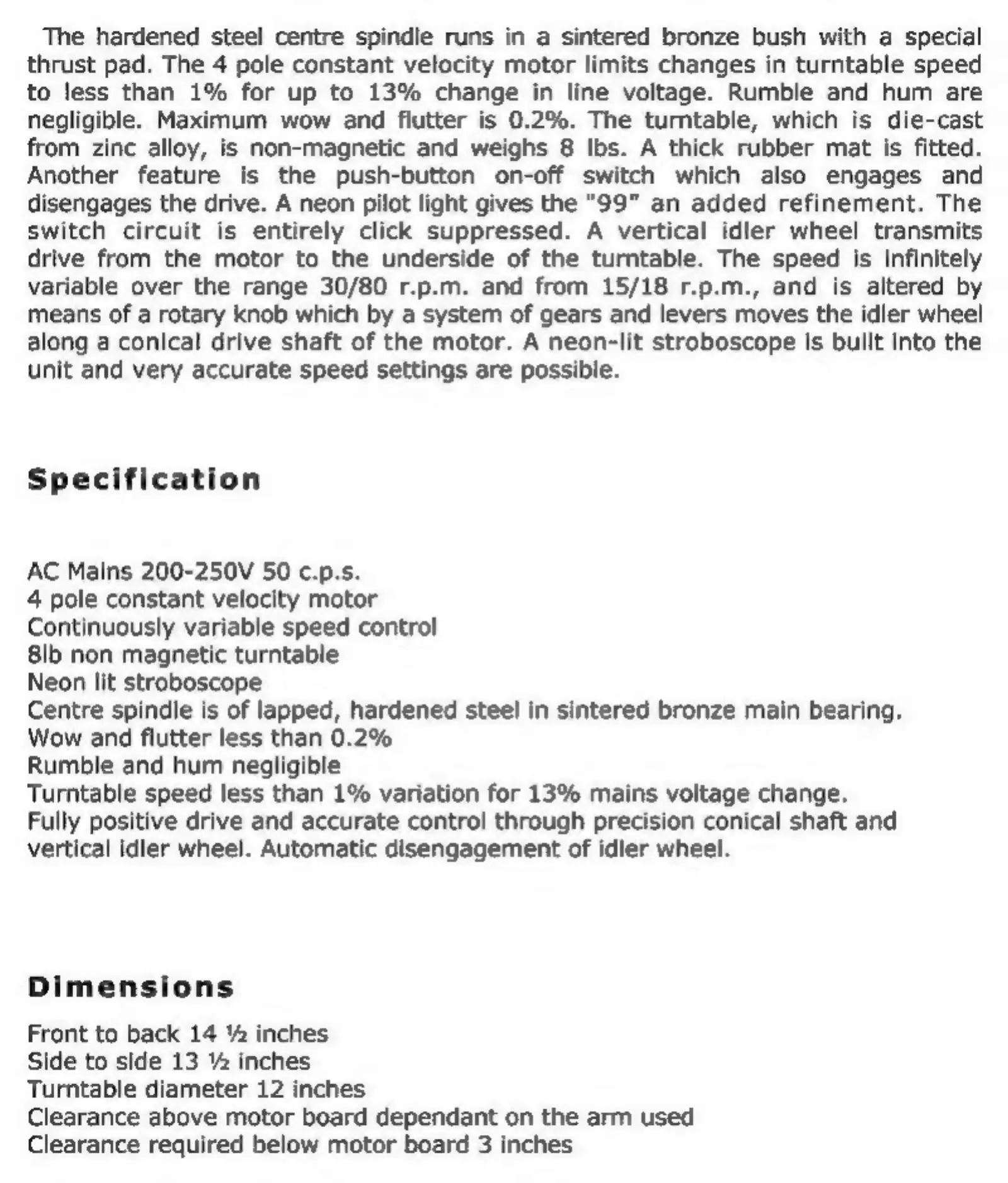

The hardened steel centre spindle runs in a sintered bronze bush with a special
thrust pad. The 4 pole constant velocity motor limits changes in turntable speed
to less than 1% for up to 13% change in line voltage. Rumble and hum are
negligible. Maximum wow and flutter is 0.2%. The turntable, which is die-cast
from zinc alloy, is non-magnetic and weighs 8 Ibs. A thick rubber mat is fitted.
Another feature is the push-button on-off switch which also engages and
disengages the drive. A neon pilot light gives the "99" an added refinement. The
switch circuit is entirely click suppressed. A vertical idler wheel transmits
drive from the motor to the underside of the turntable. The speed is infinitely
variable over the range 30/80 r.p.m. and from 15/18 r.p.m., and is altered by
means of a rotary knob which by a system of gears and levers moves the idler wheel
along a conical drive shaft of the motor. A neon-lit stroboscope is built into the
unit and very accurate speed settings are possible.
Specification
AC Mains 200-250V 50 c.p.s.
4 pole constant velocity motor
Continuously variable speed control
8Ib non magnetic turntable
Neon lit stroboscope
Centre spindle is of lapped, hardened steel in sintered bronze main bearing.
Wow and flutter less than 0.2%
Rumble and hum negligible
Turntable speed less than 1% variation for 13% mains voltage change.
Fully positive drive and accurate control through precision conical shaft and
vertical idler wheel. Automatic disengagement of idler wheel.
Dimensions
Front to back 14 ¥ inches
Side to side 13 % inches
Turntable diameter 12 inches
Clearance above motor board dependant on the arm used
Clearance required below motor board 3 inches
