goliath BASIC LINE - Page 17

Switch DIP switch 1 to the ON
position (top).
Click on
"Add" to assign a name to
the door station and set
the ID to 1.
Set DIP switch 1 to
the ON position (up).
DIP switch indoor station 2
Indoor station settings
Switch DIP switch 1 and DIP
switch 16 to the ON position
(top).
Click on "Add" to give the door
station a name.
and set the ID to 1.
DIP switch indoor station 3
Indoor station settings
Switch on DIP switch 1 and DIP switch
16
to the ON position (top).
Click on "Add" to give the door
station a name.
and set the ID to 1.

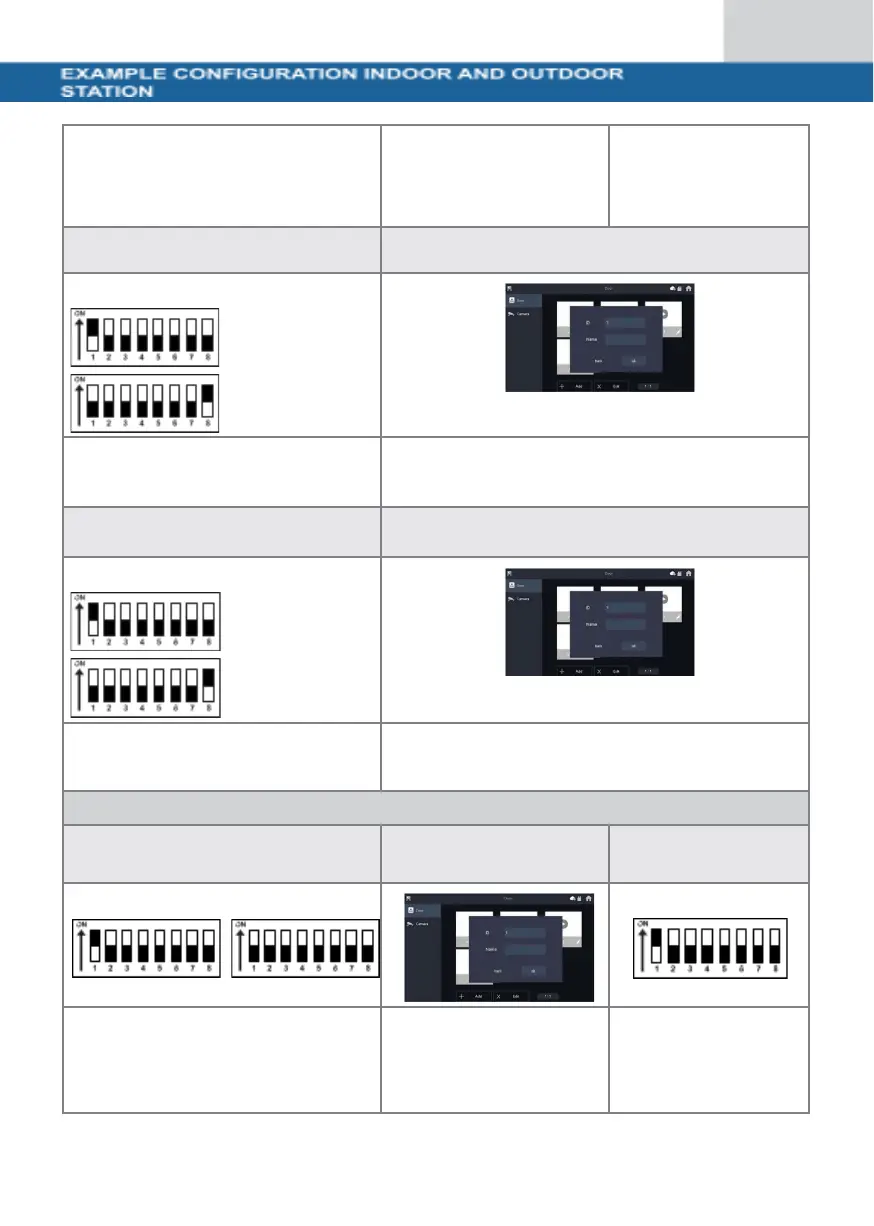

Configuration 3x indoor station and 1x door station
DIP switch indoor station 1
Indoor station settings
DIP switch door
station
Switch DIP switch 1 to the ON
position (top).
Click on
"Add" to assign a name to
the door station and set
the ID to 1.
Set DIP switch 1 to
the ON position (up).
