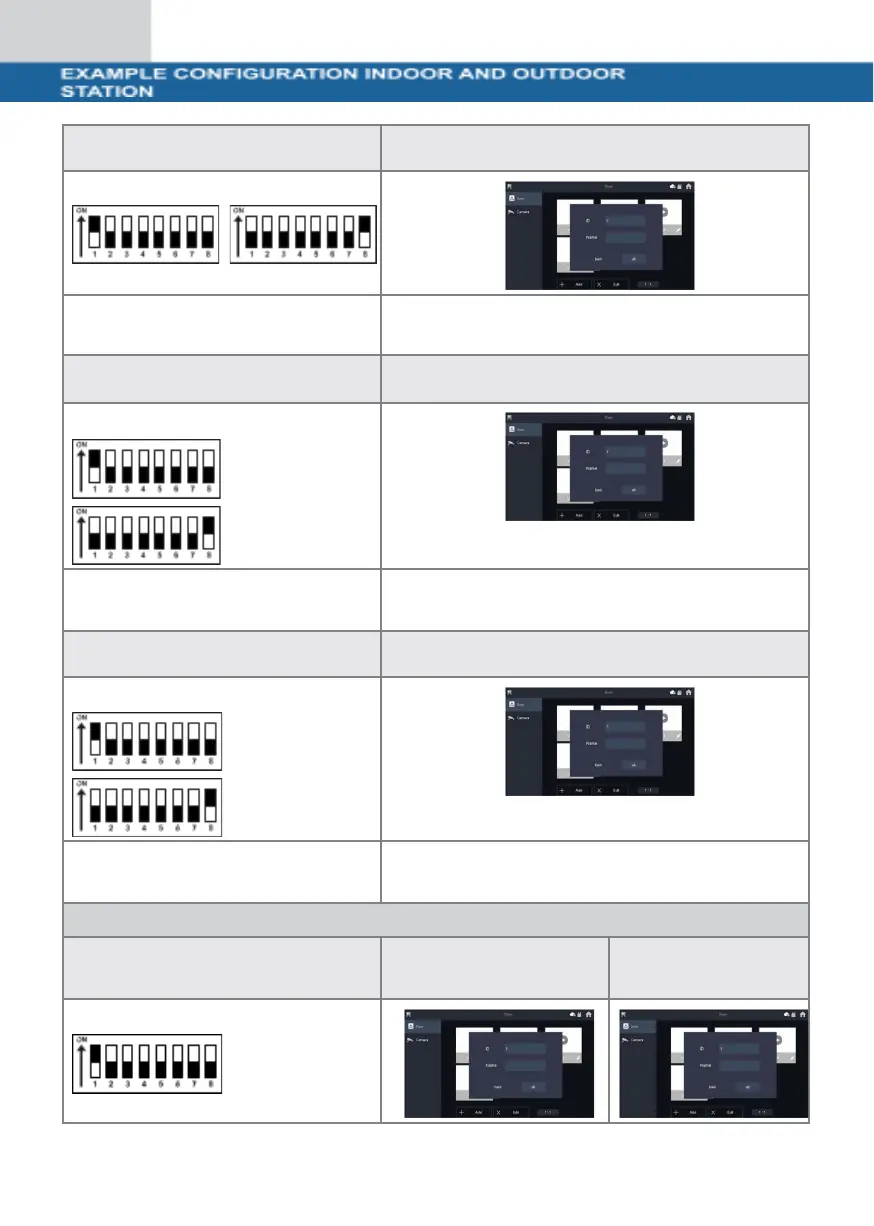

goliath BASIC LINE - Page 18

DIP switch indoor station 2
Indoor station settings
Switch DIP switch 1 and DIP
switch 16 to the ON position
(top).
Click on "Add" to give the door
station a name.
and set the ID to 1.
DIP switch indoor station 3
Indoor station settings
Switch DIP switch 1 and DIP
switch 16 to the ON position
(top).
Click on "Add" to give the door
station a name.
and set the ID to 1.
DIP switch indoor station 4
Indoor station settings
Switch DIP switch 1 and DIP
switch 16 to the ON position
(top).
Click on "Add" to give the door
station a name.
and set the ID to 1.
Configuration 1x indoor station and 2x door station
DIP switch indoor station
Indoor station settings
for door station 1
Indoor station
settings for
door station 2
