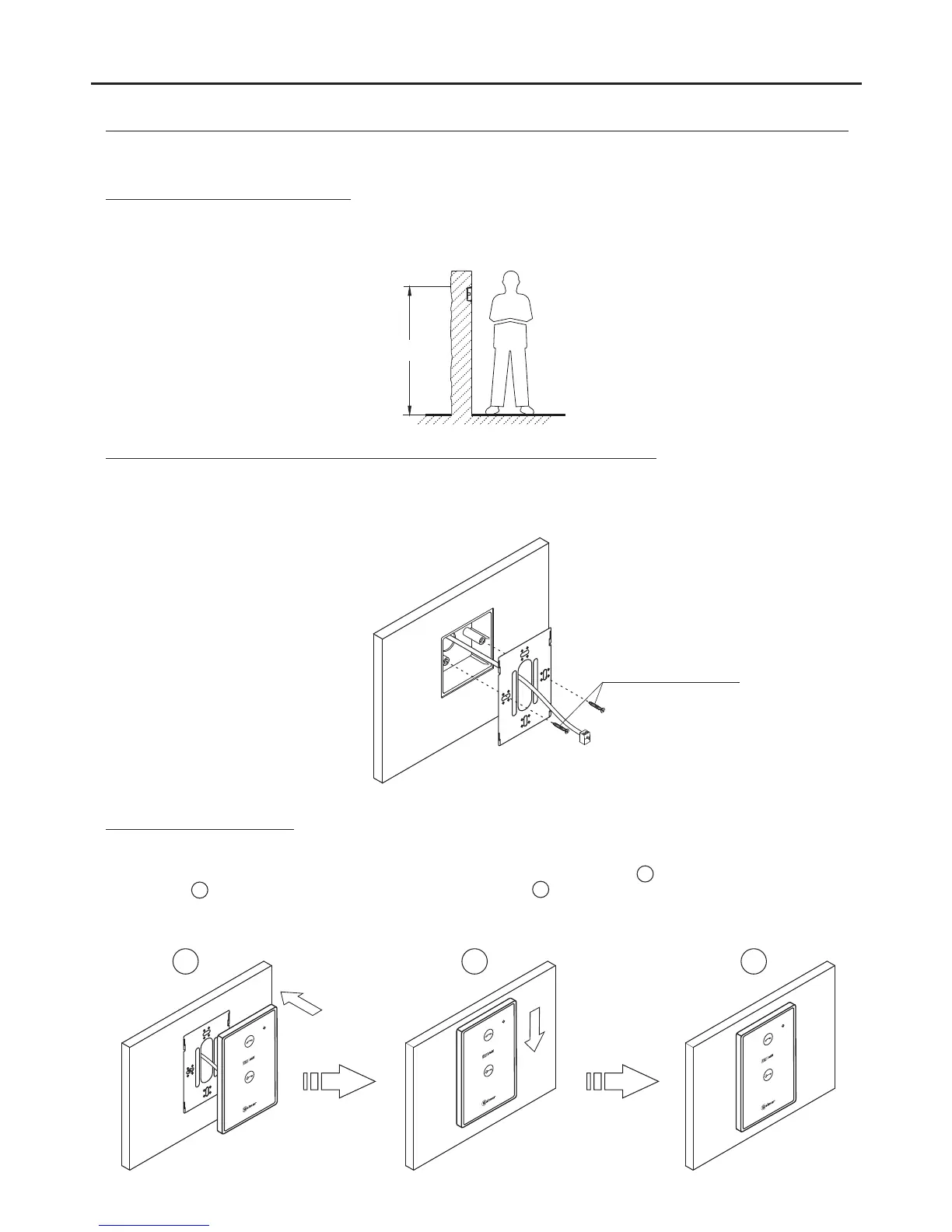

INSTALLATION OF THE TERMINAL IN AN EMBEDDING BOX
Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The
minimum distance between the sides of the embedding box and the closest object must be 5 cm.
Positioning the embedding box:
1 6. 0m
Pass the cable through the hole made in the embedding box. Embed the box and ensure that it is level and ush.
Fix the wall mounting connector of the terminal to the embedding box with the screws supplied.
Positioning the embedding box and fitting the wall mounting connector:
Positioning the terminal:
Avoid dusty or smoky environments or locations near sources of heat.
Screws supplied with
the embedding box.
12
NHEA GB2 HANDS-FREE AUDIO TERMINAL
Connect the cables to the terminal (see p. 4), position the terminal in front of the wall mounting connector, ensuring
that the holes in the base of the terminal line up with those on the connector , and then move the terminal
downwards until the terminal is securely xed to the connector .
Remember to remove the protective covering from the front of the terminal once installation has been
completed.
1
2
3
1 2 3
