ass the wiring through the hole made in the embedding box Level and flush the embedding
box Once the embedding box is placed, remove the protective labels from the monitor
fastening holes
MONITOR INSTALLATION
38
Place the embedding box.
5 cm.
The minimum
be
37
vironments.

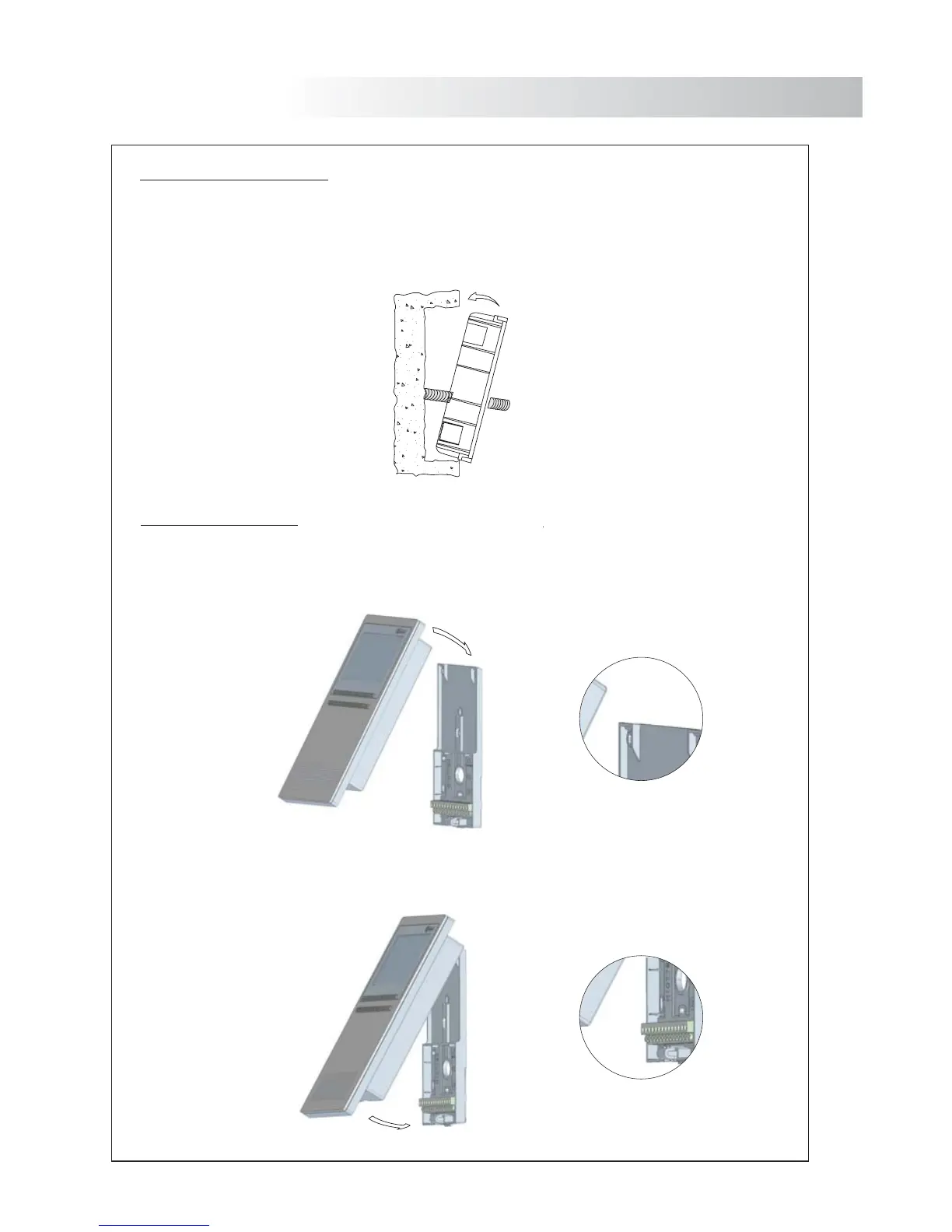

Place the monitor at right angles to the connection block and align the attaching holes of
the monitor with the holes of the connection block, as it is shown on the drawing
.
Lock out the monitor pressing its lower side till the attachment clip locks the monitor firmly.
Securing the monitor.
