3.0
SET-UP:
3.1
BACTERIA
FILTERS:
Install
two
bacteria
filters
to
the
stand
prior
to
patient
applications
as
follows.
1.
Locate
the
vacuum
and
filter
connection
on
the
bottom
of
the
stand
body,
(See
figure
1).
2.
Screw
the
threaded
ends
of
the
filter
into
the
vacuum
filter
connections
by
turning
in
a
clockwise
direction.
3.
Tighten
finger
tight.
CAUTION:
Care
must
be
taken
when
installing
the
filter
to
prevent
thread
damage
due
to
cross
threading
(See
Illustration
No.
5)

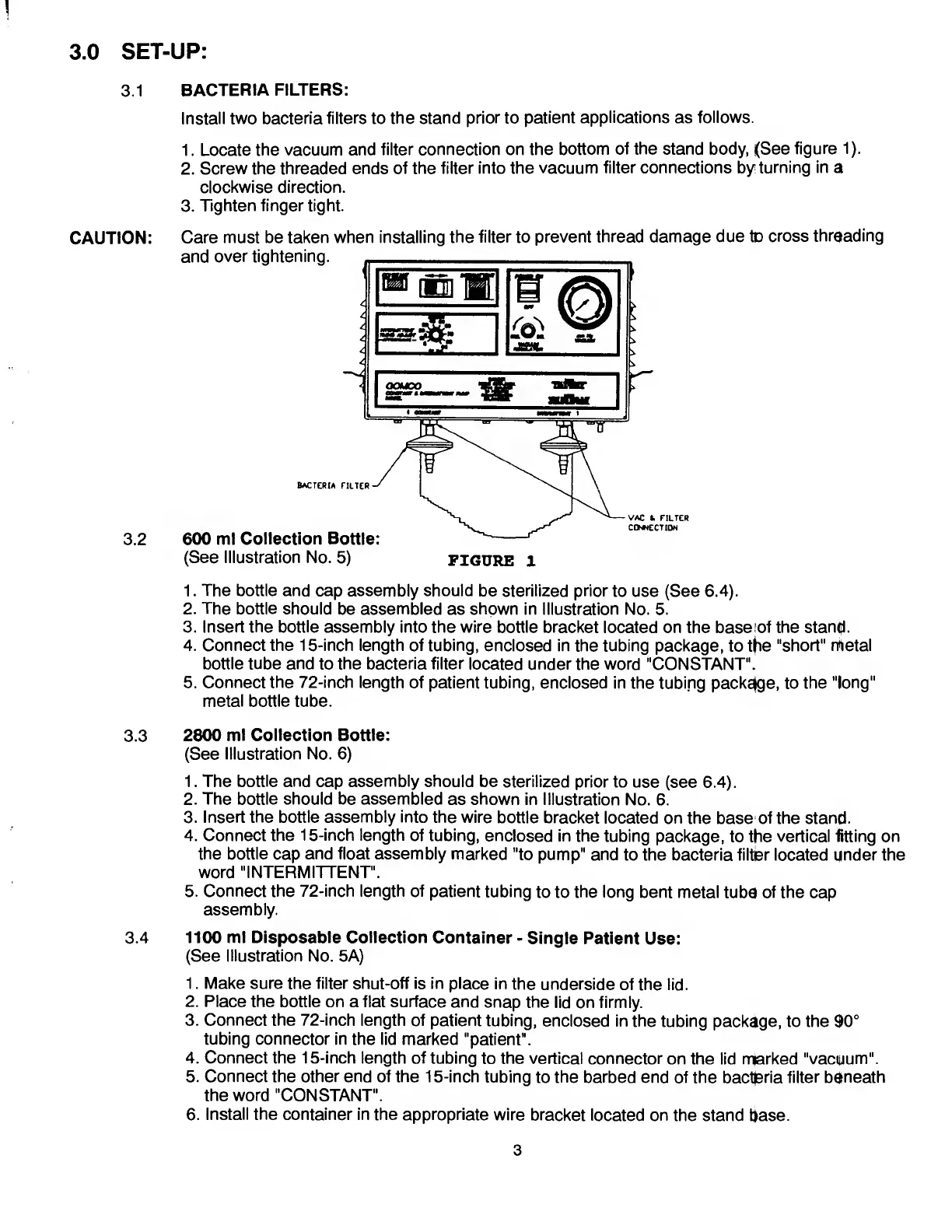

FIGURE
1
1.
The
bottle
and
cap
assembly
should
be
sterilized
prior
to
use
(See
6.4).
2.
The
bottle
should
be
assembled
as
shown
in
Illustration
No.
5.
3.
Insert
the
bottle
assembly
into
the
wire
bottle
bracket
located
on
the
basest
the
stand.
4.
Connect
the
15-inch
length
of
tubing,
enclosed
in
the
tubing
package,
to
the
"short"
metal
bottle
tube
and
to
the
bacteria
filter
located
under
the
word
"CONSTANT".
5.
Connect
the
72-inch
length
of
patient
tubing,
enclosed
in
the
tubing
package,
to
the
"long"
metal
bottle
tube.
3.3
2800
ml
Collection
Bottle:
(See
Illustration
No.
6)
1.
The
bottle
and
cap
assembly
should
be
sterilized
prior
to
use
(see
6.4).
2.
The
bottle
should
be
assembled
as
shown
in
Illustration
No.
6.
3.
Insert
the
bottle
assembly
into
the
wire
bottle
bracket
located
on
the
base
of
the
stand.
4.
Connect
the
15-inch
length
of
tubing,
enclosed
in
the
tubing
package,
to
the
vertical
fitting
on
the
bottle
cap
and
float
assembly
marked
"to
pump"
and
to
the
bacteria
filter
located
under
the
word
"INTERMITTENT".
5.
Connect
the
72-inch
length
of
patient
tubing
to
to
the
long
bent
metal
tube
of
the
cap
assembly.
3.4
1100
ml
Disposable
Collection
Container
-
Single
Patient
Use:
(See
Illustration
No.
5A)
1.
Make
sure
the
filter
shut-off
is
in
place
in
the
underside
of
the
lid.
2.
Place
the
bottle
on
a
flat
surface
and
snap
the
lid
on
firmly.
3.
Connect
the
72-inch
length
of
patient
tubing,
enclosed
in
the
tubing
package,
to
the
90°
tubing
connector
in
the
lid
marked
"patient".
4.
Connect
the
15-inch
length
of
tubing
to
the
vertical
connector
on
the
lid
marked
"vacuum".
5.
Connect
the
other
end
of
the
15-inch
tubing
to
the
barbed
end
of
the
bacteria
filter
bdneath
the
word
"CONSTANT".
6.
Install
the
container
in
the
appropriate
wire
bracket
located
on
the
stand
base.
3
