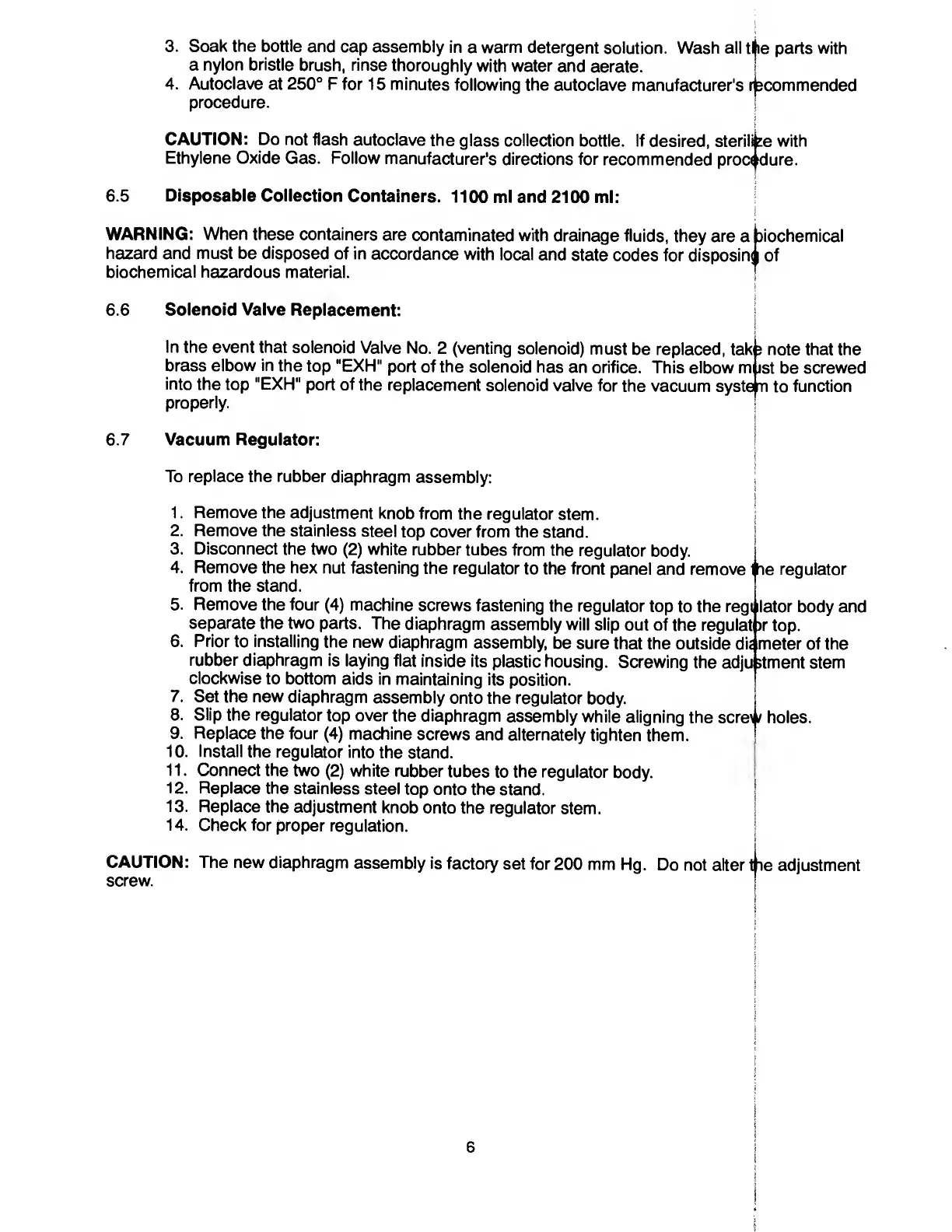

3.
Soak
the
bottle
and
cap
assembly
in
a
warm
detergent
solution.
Wash
all
tie
parts
with
a
nylon
bristle
brush,
rinse
thoroughly
with
water
and
aerate.
4.
Autoclave
at
250°
F
for
15
minutes
following
the
autoclave
manufacturer's
recommended
procedure.
CAUTION:
Do
not
flash
autoclave
the
glass
collection
bottle.
If
desired,
sterilise
with
Ethylene
Oxide
Gas.
Follow
manufacturer's
directions
for
recommended
procedure.
6.5
Disposable
Collection
Containers.
1100
ml
and
2100
ml:
WARNING:
When
these
containers
are
contaminated
with
drainage
fluids,
they
are
a
biochemical
hazard
and
must
be
disposed
of
in
accordance
with
local
and
state
codes
for
disposing
of
biochemical
hazardous
material.
6.6
Solenoid
Valve
Replacement:
I
In
the
event
that
solenoid
Valve
No.
2
(venting
solenoid)
must
be
replaced,
takb
note
that
the
brass
elbow
in
the
top
"EXH"
port
of
the
solenoid
has
an
orifice.
This
elbow
must
be
screwed
into
the
top
"EXH"
port
of
the
replacement
solenoid
valve
for
the
vacuum
systejn
to
function
properly.
6.7
Vacuum
Regulator:
To
replace
the
rubber
diaphragm
assembly:
1.
Remove
the
adjustment
knob
from
the
regulator
stem.
2.
Remove
the
stainless
steel
top
cover
from
the
stand.
3.
Disconnect
the
two
(2)
white
rubber
tubes
from
the
regulator
body.
4.
Remove
the
hex
nut
fastening
the
regulator
to
the
front
panel
and
remove
fie
regulator
from
the
stand.
5.
Remove
the
four
(4)
machine
screws
fastening
the
regulator
top
to
the
regi
ilator
body
and
separate
the
two
parts.
The
diaphragm
assembly
will
slip
out
of
the
regulat
)r
top.
6.
Prior
to
installing
the
new
diaphragm
assembly,
be
sure
that
the
outside
die
meter
of
the
rubber
diaphragm
is
laying
flat
inside
its
plastic
housing.
Screwing
the
adju
>tment
stem
clockwise
to
bottom
aids
in
maintaining
its
position.
7.
Set
the
new
diaphragm
assembly
onto
the
regulator
body.
8.
Slip
the
regulator
top
over
the
diaphragm
assembly
while
aligning
the
screv
/
holes.
9.
Replace
the
four
(4)
machine
screws
and
alternately
tighten
them.
10.
Install
the
regulator
into
the
stand.
11.
Connect
the
two
(2)
white
rubber
tubes
to
the
regulator
body.
12.
Replace
the
stainless
steel
top
onto
the
stand.
13.
Replace
the
adjustment
knob
onto
the
regulator
stem.
14.
Check
for
proper
regulation.
CAUTION:
The
new
diaphragm
assembly
is
factory
set
for
200
mm
Hg.
Do
not
alter
the
adjustment
screw.
6
