The Gozney Arc Stand is a technical manual detailing the assembly and installation of a stand designed for the Gozney Arc gas oven. This stand serves as a stable and mobile base for the oven, enhancing its usability and placement flexibility in outdoor cooking environments. The manual emphasizes safety, proper assembly, and maintenance to ensure the longevity and safe operation of both the stand and the oven.

The primary function of the Arc Stand is to provide a dedicated, elevated, and mobile platform for the Gozney Arc gas oven. This allows users to position their oven at a comfortable working height, making it easier to operate and monitor during cooking. The stand is equipped with casters, enabling easy movement of the oven, which is particularly useful for repositioning the oven for optimal cooking conditions, storage, or cleaning. The design includes features that integrate with the oven's structure, ensuring a secure and stable fit.

Usage Features:

The stand is designed for ease of use and mobility, with several features contributing to a seamless user experience.

Mobility: The stand is fitted with four casters, allowing the oven to be easily moved. This is a significant advantage for outdoor cooking, as it enables users to adjust the oven's position based on sunlight, wind, or proximity to other cooking areas. However, the manual strongly advises against moving the oven when it is still warm; it must be fully cooled first. Additionally, all four casters should always be locked unless the oven is actively being moved, ensuring stability during operation. When moving the oven, users are instructed to push/pull from the stand itself, not the oven, to prevent damage. Any loose items on the stand or its shelves should be removed before moving.
Stability: Once positioned, the casters can be locked, providing a stable base for the oven. This is crucial for safety, especially when the oven is in use and connected to a gas supply. The manual explicitly states that the casters should always be locked when the oven is connected to a gas supply, even when not in use.
Integrated Shelving: The stand incorporates wooden shelves, which provide convenient storage or workspace for cooking tools, ingredients, or other accessories. These shelves are designed to be functional and aesthetically pleasing, complementing the overall design of the oven and stand.
Gas Bottle Securing Mechanism: A critical safety feature is the mechanism for securing the gas bottle. The manual details the process of installing an eye bolt and chain to firmly attach the gas bottle to the stand. This prevents the bottle from moving or tipping over, which is essential for safe gas appliance operation. The chain needs to be taut, and its length should not exceed 80% of the hose assembly length to prevent stress on components.

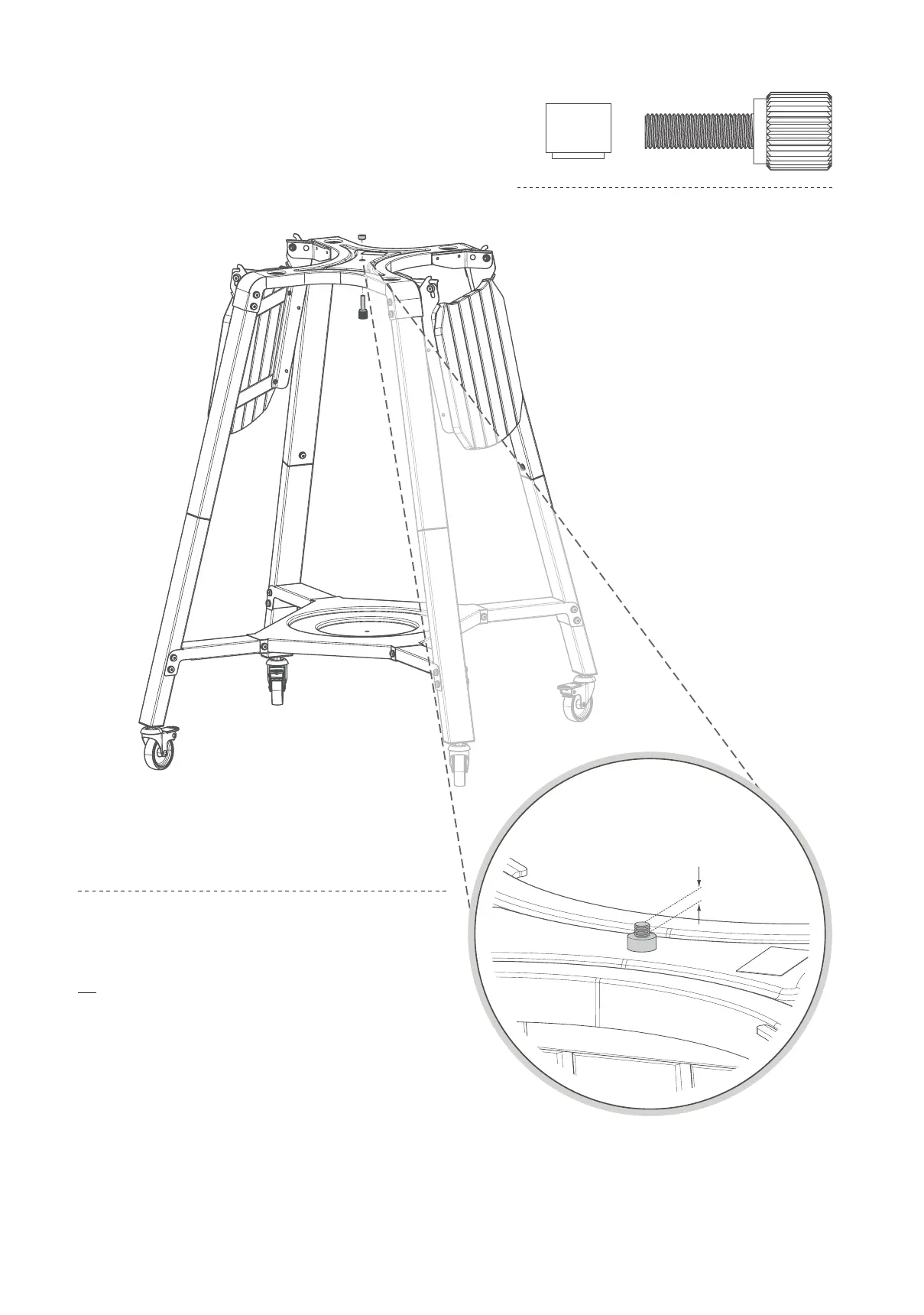

Oven Installation: The manual provides clear instructions for installing the Arc oven onto the stand. This involves assembling specific fixings (F004 and F001) into the top of the stand, ensuring about 1/8" (4mm) of thread is exposed. The oven's feet are then aligned with highlighted slots on the stand, ensuring a secure fit. It is emphasized that two people should lift the Arc oven from its rounded ends, and the oven's mouth should not be used as a lifting point. Users are also reminded to remove anything loose from the oven before moving it.

Maintenance Features:

Proper maintenance is crucial for preserving the appearance and functionality of the Arc Stand, particularly its wooden components.

Wood Protection: The wooden shelves are susceptible to damage from direct sunlight, rain, and hot items. To prevent the protective layers from breaking down, the manual outlines specific maintenance steps:
- Storage: The unit should be stored out of direct sunlight when not in use. This helps to prevent fading, cracking, and degradation of the wood finish.
- Moisture Exposure: After exposure to moisture, the wood should be dried with a soft cloth. This prevents water damage, warping, and mold growth.
- Oil Application: An outdoor furniture oil should be applied to the wood every 8 weeks. This regular oiling helps to nourish the wood, maintain its protective barrier, and preserve its appearance against environmental elements.
General Care: The manual advises against placing any parts of the stand on abrasive surfaces during assembly to avoid damaging the paintwork of the metal parts. This suggests a need for careful handling and a clean assembly area to maintain the stand's aesthetic quality.
Fixing Tightening: During assembly, it is recommended not to fully tighten bolts until the frame is assembled, which eases the alignment of future fixings. However, all fixings must be fully tightened at a later stage (Step 5) using only hand tools to prevent overtightening, which could strip threads or damage components. This attention to detail in tightening ensures the structural integrity and stability of the stand.
Gas Connector and Quick-Disconnect Device: The manual specifies the use of a Gozney-supplied gas connector or one that complies with relevant standards (ANSI Z21.69 / CSA 6.16) and a quick-disconnect device that complies with standards (ANSI Z21.41 / CSA 6.9). It also states that these components or their associated piping should never be used to limit the movement of the appliance, implying that these parts should be regularly checked for proper function and connection without undue stress. Always disconnect the oven from the gas supply before moving it.

In summary, the Gozney Arc Stand is designed to be a robust, mobile, and user-friendly base for the Arc gas oven. Its features prioritize safety, ease of movement, and convenient operation, while its maintenance guidelines ensure the longevity and aesthetic appeal of the product, particularly its wooden elements. The detailed instructions for assembly and installation, coupled with clear warnings and cautions, aim to provide users with a comprehensive guide for safe and effective use.

Gozney Arc Stand - Page 17
