310310 11
System Setup
Low–Level Shutoff Setup (Model 970024)
Setup the low–level shutoff as shown in Fig. 5.
NOTE: The position of the air limit valve (2) on the
ram determines when the ram air motor is turned on
and off. During operation, this position can be adjusted
as desired. See Fig. 5.

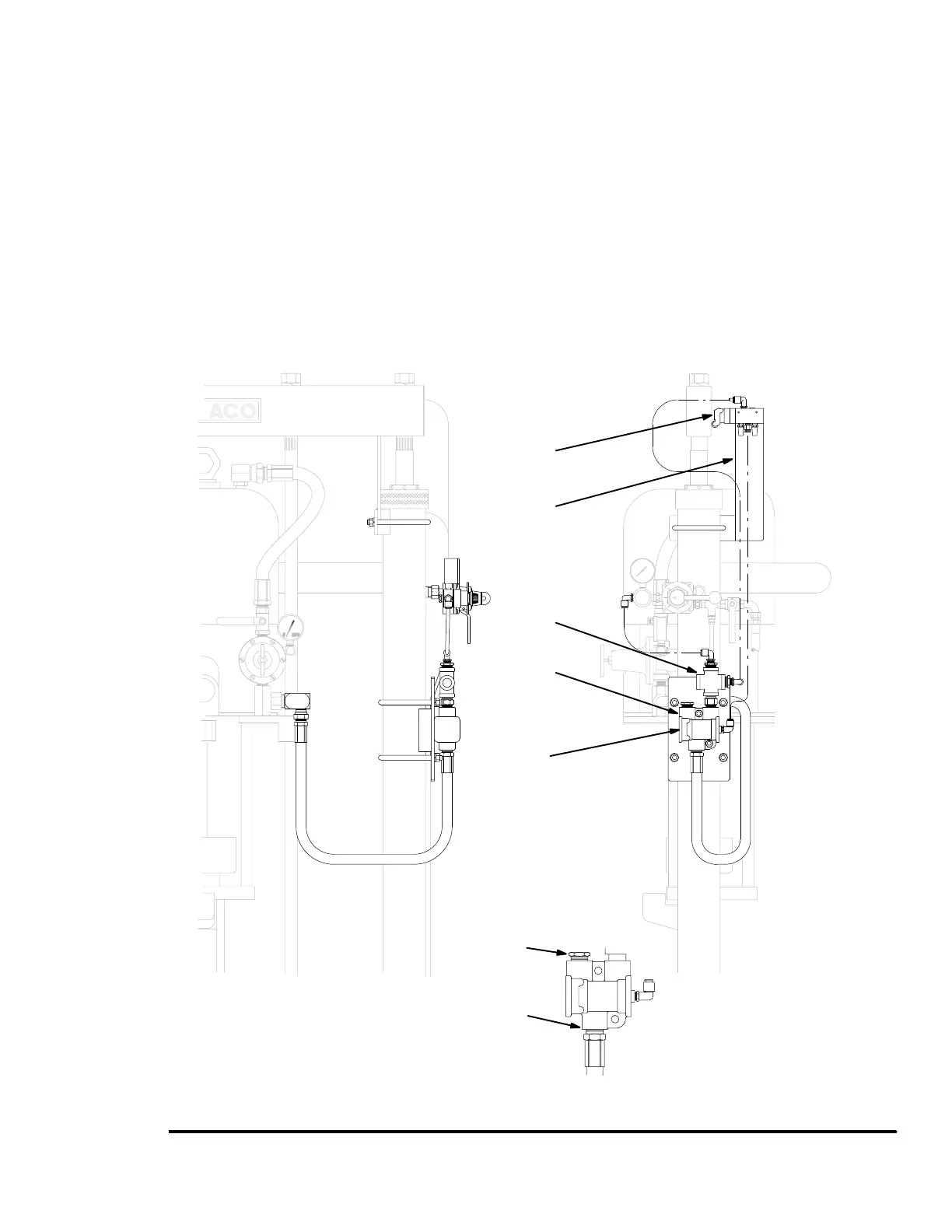

Fig. 5
1
2
3
5
Low–Level Shutoff Setup (Model 970024)
Detail A
A
1 REF
4
KEY
1 3–Way Pilot Valve
2 Air Limit Valve
3 Limit Valve Bracket
4 Breather Vent
5 Pipe Cross Fitting
8586A
