Component Identification and Function

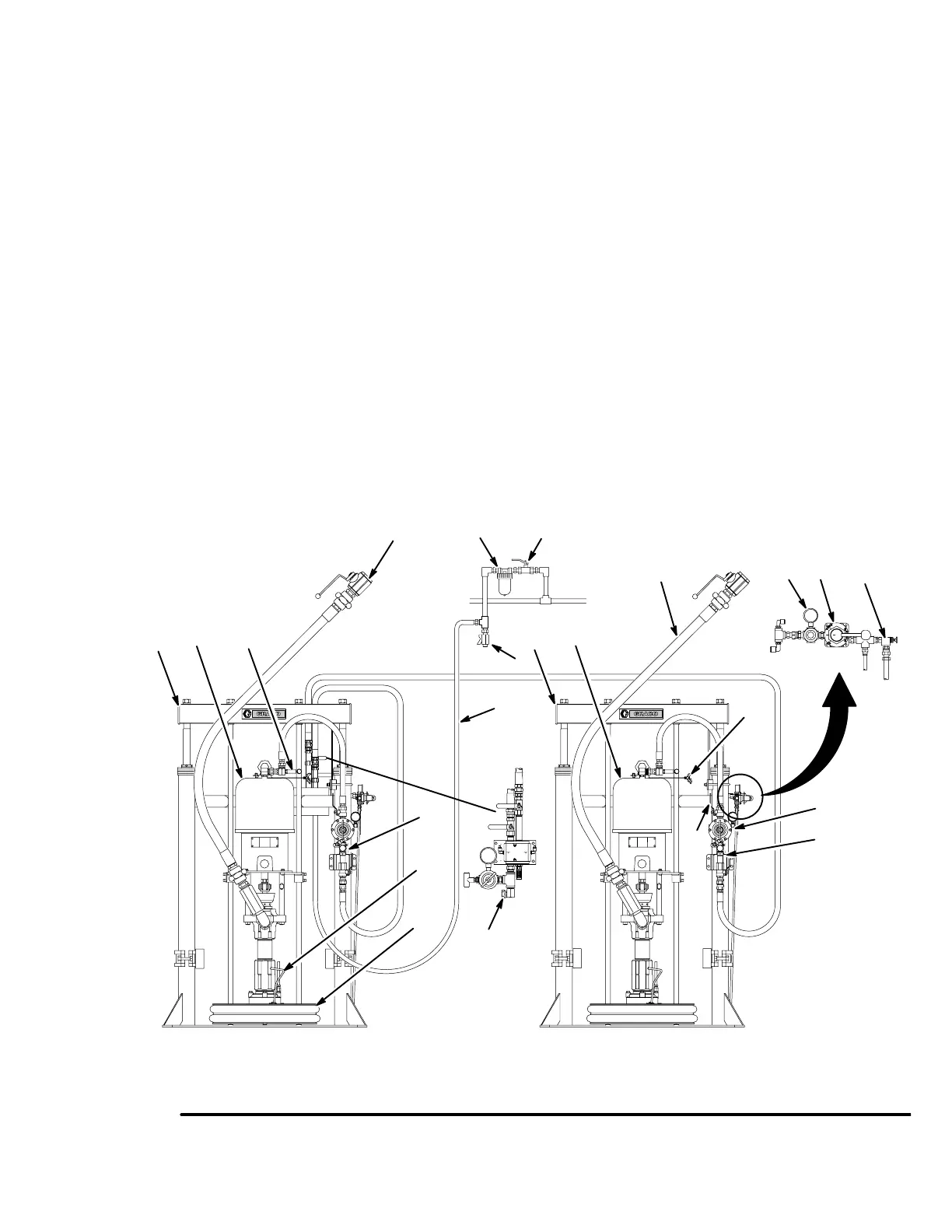

Fig. 1
KEY
A Pump
B Ram (two used on 970022 and 970023,
one used on 970024)
C Ram Plate
D Electrically Conductive Air Supply Hose
E Main Air Bleed Valve (required, for pump
and ram)
F Air Manifold
G Pump Air Regulator
H Pump Air Bleed Valve
(required, for pump)
J Air Line Filter
K Bleed-Type Air Valve
(for accessories)
L Pneumatic Crossover (for 970022), Elec-
trical Crossover (for 970023), Low–level
Shutoff (for 970024)
N Electrically Conductive Fluid Hose
S Ball Valve
T Ram Air Regulator
U Ram Director Valve
V Air Release Valve
W Air Line Drain Valve
Y Ground Wire (required; Refer to
page 8 for setup)
AA Safety Valve
CC Bleed Handle
8642A
U
T
N
V
E
J
K
D
C
CC
B A AA
S
W
Y
H
G
F
Supply Unit A Supply Unit B
Model 970022 Tandem Shown
L
AB
To Next Page
