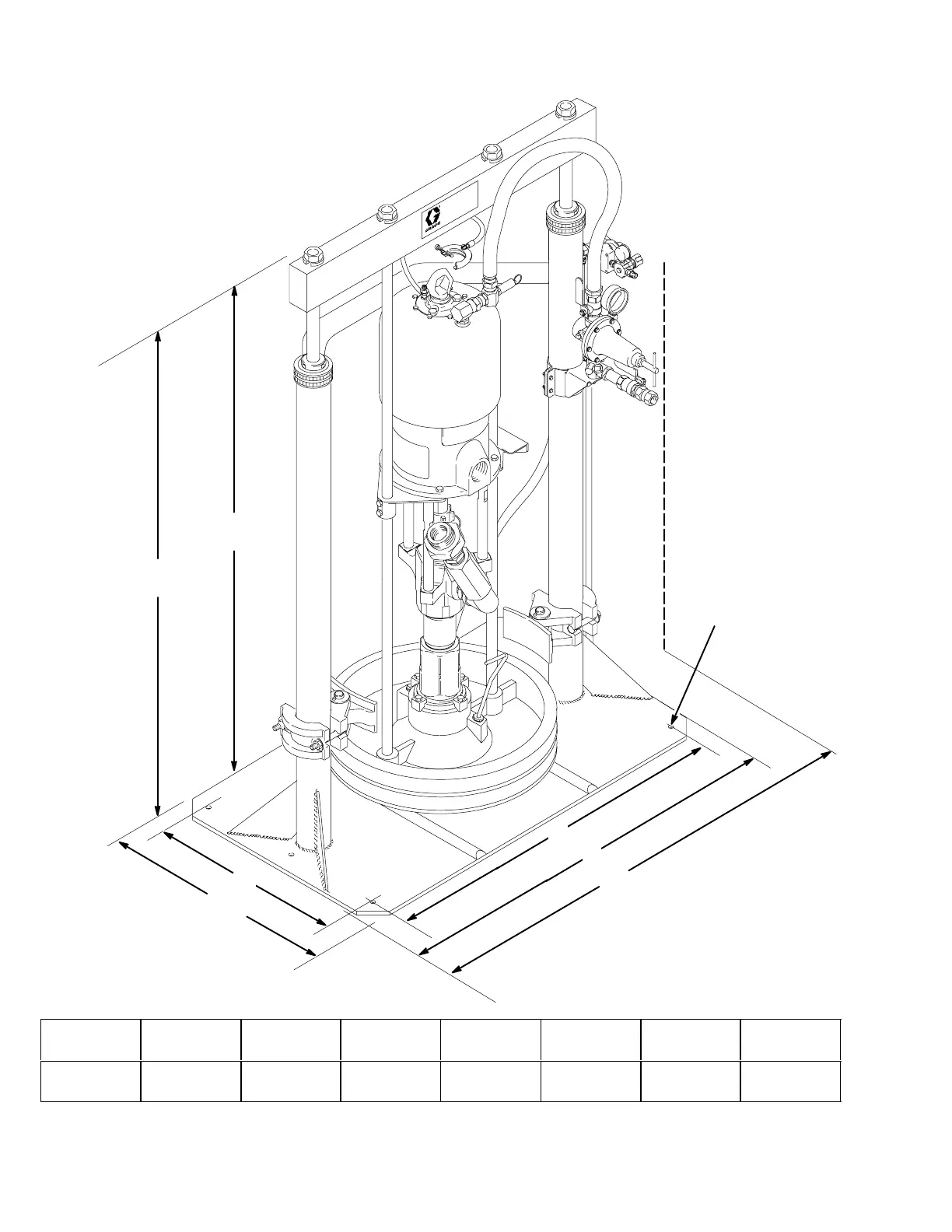

Ram Mounted Pump Clearance Dimensions
8320B
A
B
C
D
E
F
G
14.2 mm (0.56 in.)
Diameter Holes
Model 970022 Ram Shown
Model
A
(Raised)
B
(Lowered)
C D E F G
All 2578 mm
(101.5 in.)
1575 mm
(62 in.)
533 mm
(21 in.)
635 mm
(25 in.)
965 mm
(38 in.)
1067 mm
(42 in.)
1111 mm
(43.74 in.)
