17
18
Re-insert buckle
through the slot in
seat pad. Pull up on
buckle to be sure
it is secured in the
slot.
13
Lift seat pad up and
pull buckle through
crotch slot.
Insert NEW tongues
into buckle.
Graco Children’s Products
3 Glenlake Parkway Atlanta, GA 30328
1-800-345-4109 www.gracobaby.com
21
20

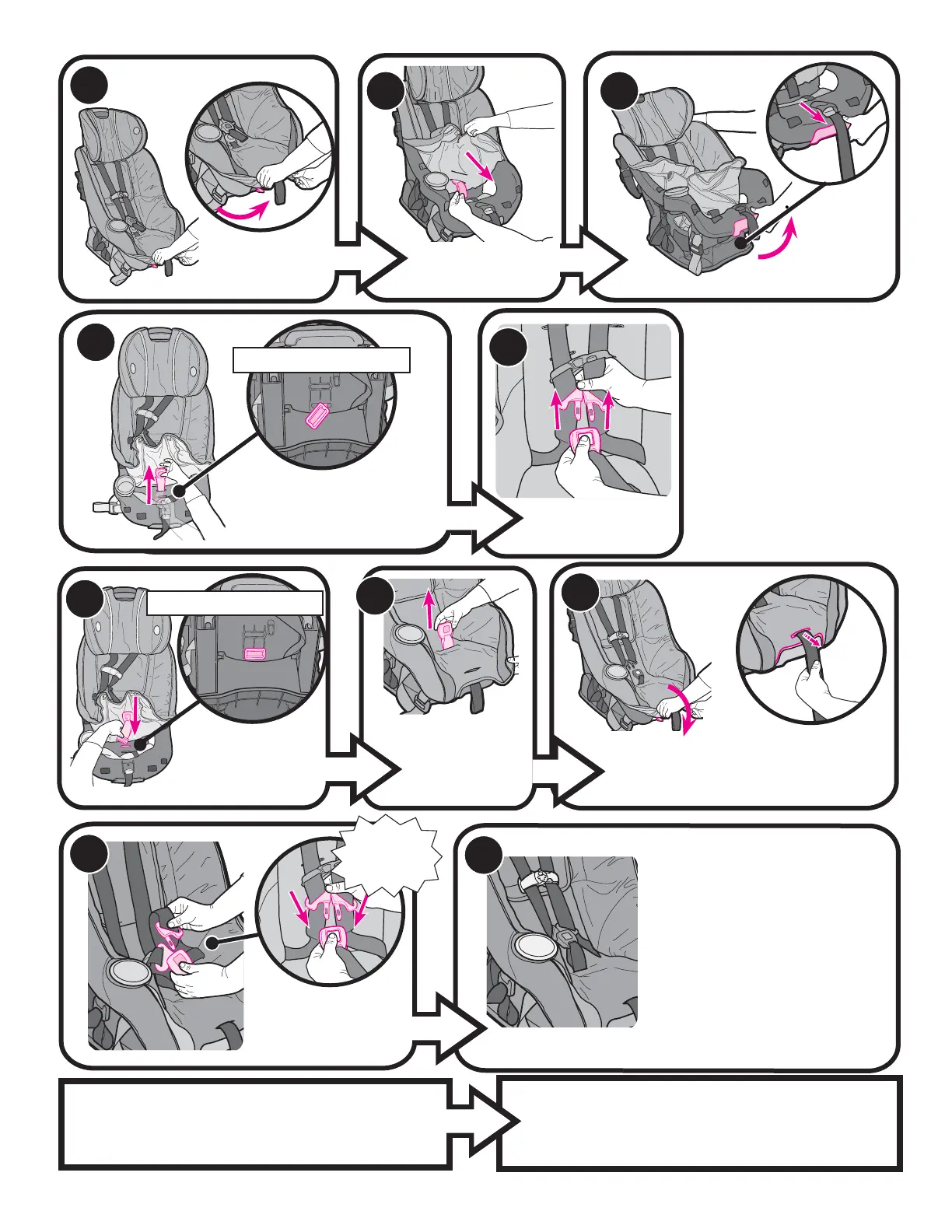

Wrap seat pad around edge of seat and
re-attach 2 clips (a) and pull adjustment
strap through slot in front of seat pad (b).
Tuck seat pad around the recline handle.
Insert metal retainer
from NEW buckle into
crotch slot in the seat
bottom as shown.
Push button and
remove tongues from
the NEW buckle.
16
15
Reach under seat to the metal
retainer. Push the retainer up
through bottom of seat and
remove buckle and discard.
Pull handle
to put seat
in most
reclined
position.
12
Undo 2 clips from
front of seat pad.
14
CLICK!
FINAL CHECK :
• Tug on the buckle to be sure
it is properly secured in the
bottom of the seat and does
not come out.
• MAKE SURE the harness
straps are not twisted.
• Make sure the chest clip is
properly threaded as shown
in Step 9.
