Gradall 534B-9 - Recommended Lubricants and Capacities; Lubricant Recommendations; Fluid and Lubricant Capacities; Torque Chart

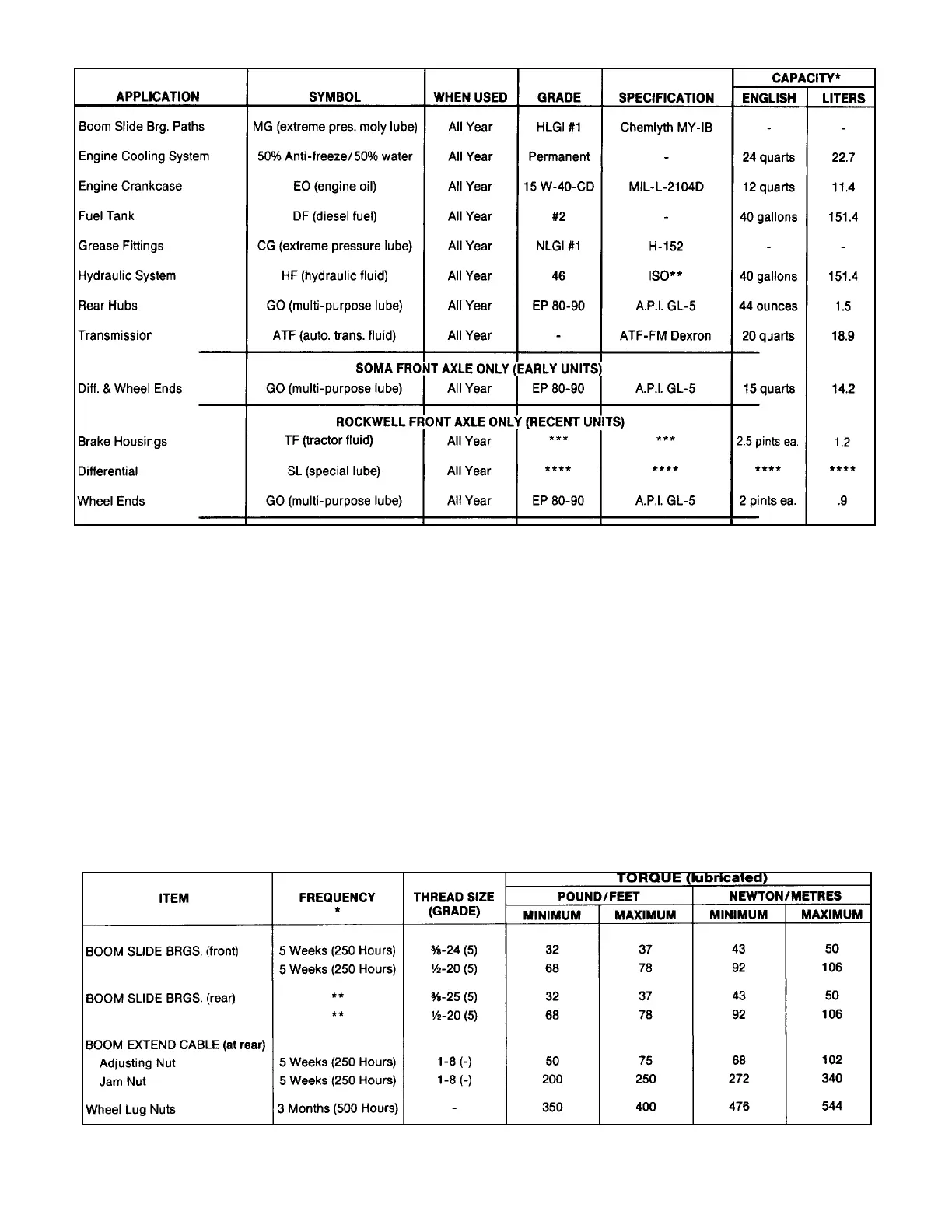

Recommended Lubricants & Capacities
*Capacities are approximate - check level to be sure.
**Hydraulic Fluid Specifications:
ISO Grade 46, Pour Point F -20 to -40
SSU @ 100 F, 200-240
Flash Point, COC, F 280 min.
Approved Supplier & Type: Union 46, Conoco Grade 46 or Citgo
Grade 46
***Approved Lubricants:
Gradall Wet Brake Housing Fluid 1440-4535 or
Mobil #424
****Fill to Level Using Mixture of:
6 pints (2.8 Liters) Gradall Dif. Lube Additive 1440-4534 or
Lubrizol #6178
34 pints (16.1 Liters) GL-5-80-90
TORQUE CHART
Check torque using an accurate torque wrench to apply maximum torque value shown.
DO NOT EXCEED MAXIMUM TORQUE. Exceeding maximum torque may cause failure of fastener.
* Torque at whichever interval occurs first.
** Check torque of rear slide bearings if front bearings have become loose.
31
