Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.3.2 Seat cushion cover – removal and installation
(seat with climate control system)
Page 6 of 6
REMOVAL INSTALLATION TABLE OF CONTENTS

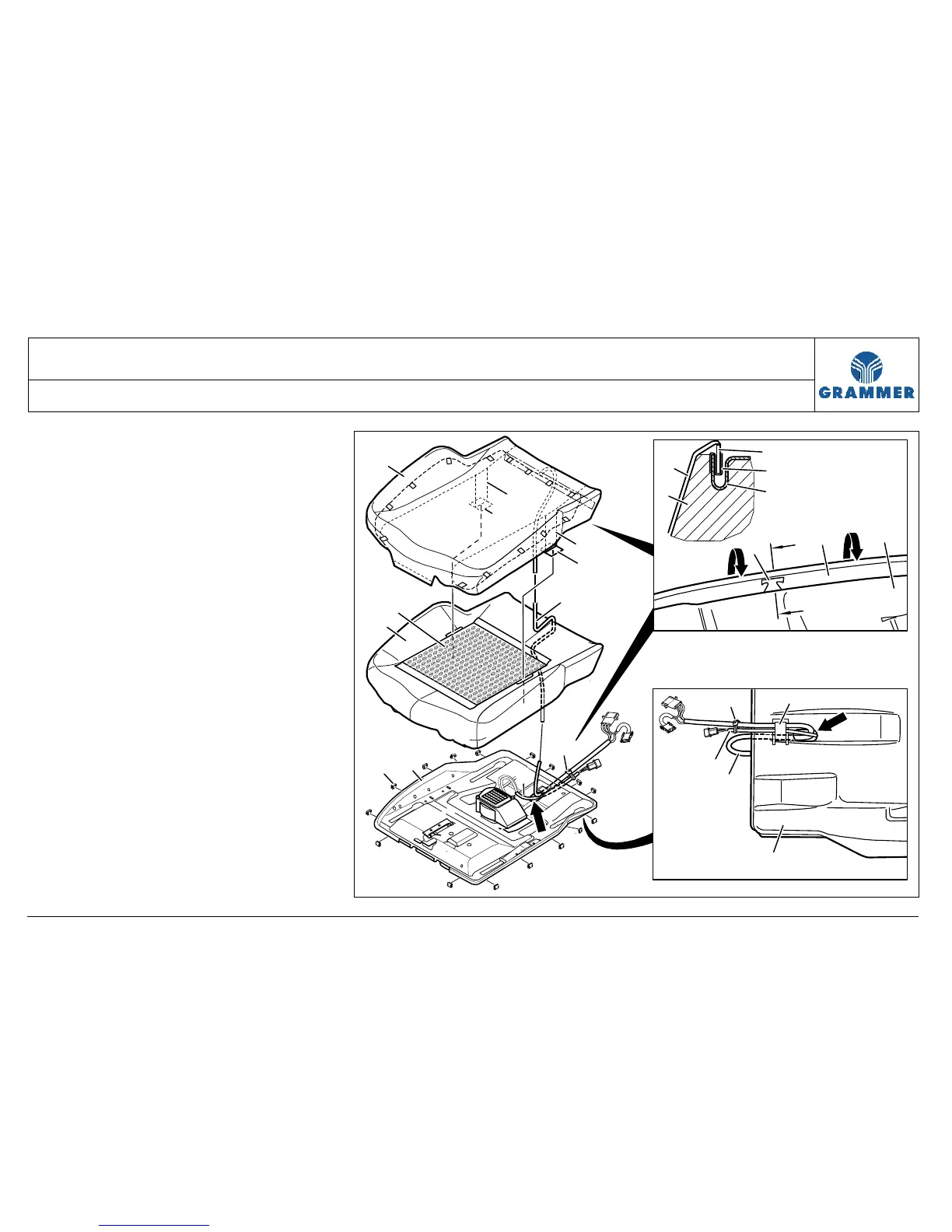

5 Fasten the cable for the seat cushion
heater (8) and the seat fan cable (9)
with cable tie (10) at the marked
location.
6 Turn back the edge of the seat
upholstery (1) along the slinging strap
(11) and push it evenly on both sides
into the clamps (5) from the back to
the front (A – A) using suitable means
such as a stopping knife, for example.
While doing so, compress the foam
plastic part (2) to release the tension
in the seat upholstery (1).
7 Install the seat cushion and lever for
seat angle and seat depth adjustment
(Chapter 3.2).
8 Install the seat cushion (Chapter 3.1).
A-A
A
11
4
10
10
5
4
2
7
7
6
6
3
1
8
12
8
9
4
5
5
4
11
1
2
A
2540
9
