Grammer MSG 90.6PG - 3.4 Left covering in position for repair - removal and attachment

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.4 Left covering in position for repair – removal and attachment
Page 1 of 3

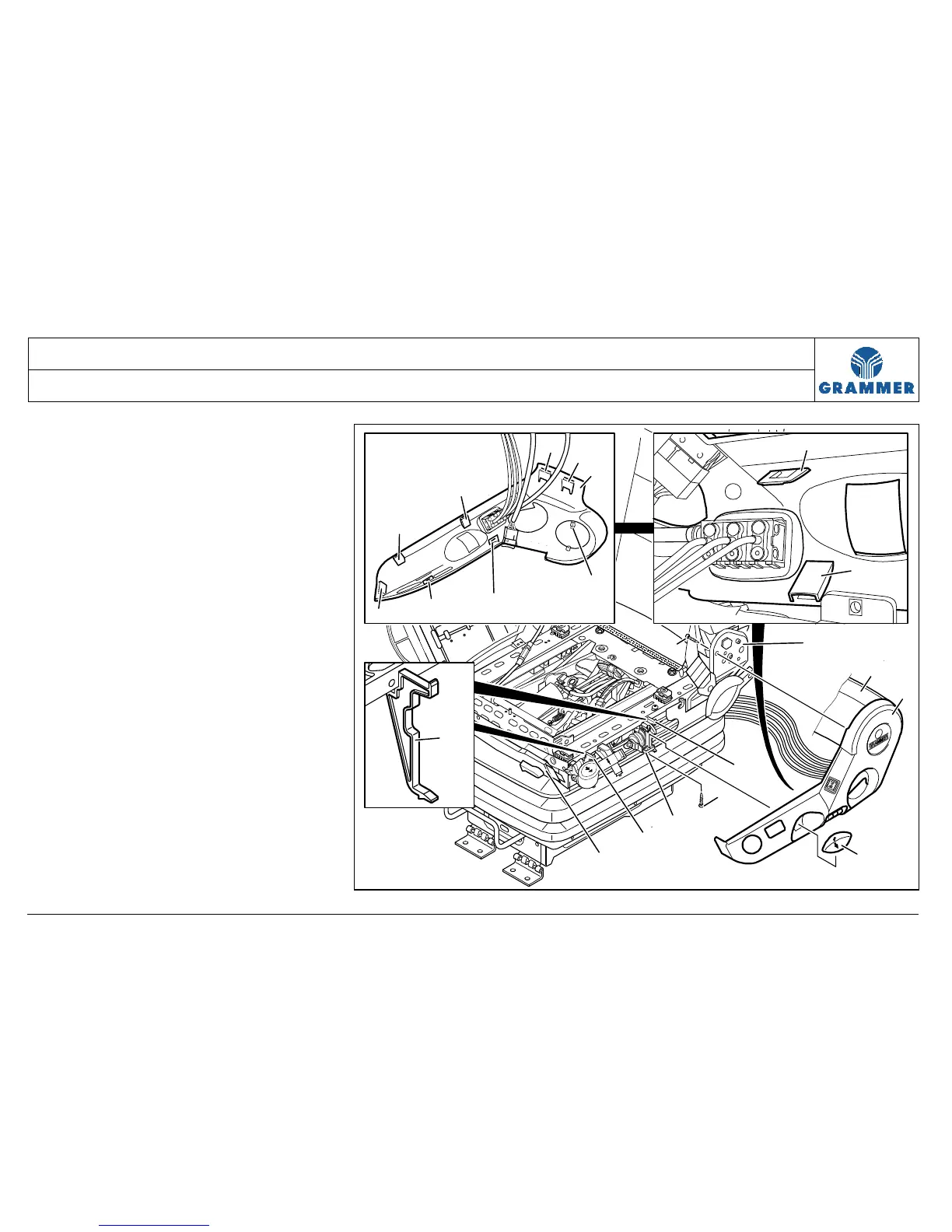

REMOVAL/ATTACHMENT TABLE OF CONTENTS
(1) Left covering
(2) Lever for seat height adjustment
(3) Raised countersunk head
screw ......................................
3 Nm
(4) Support
(5) Round head screw ...............
1.7 Nm
(6) Seat frame
(7) Upper snap-in hook
(8) Lower snap-in hook
(9) Rear snap-in hook
(10) Front snap-in hook
(11) Central snap-in hook
(12) Rear covering
(13) Front covering
(14) Handle support
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
7
1
8
5
3
4
4
6
13
14
2
1
12
4
11
7
8
1
9
9
8
10
7
