Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

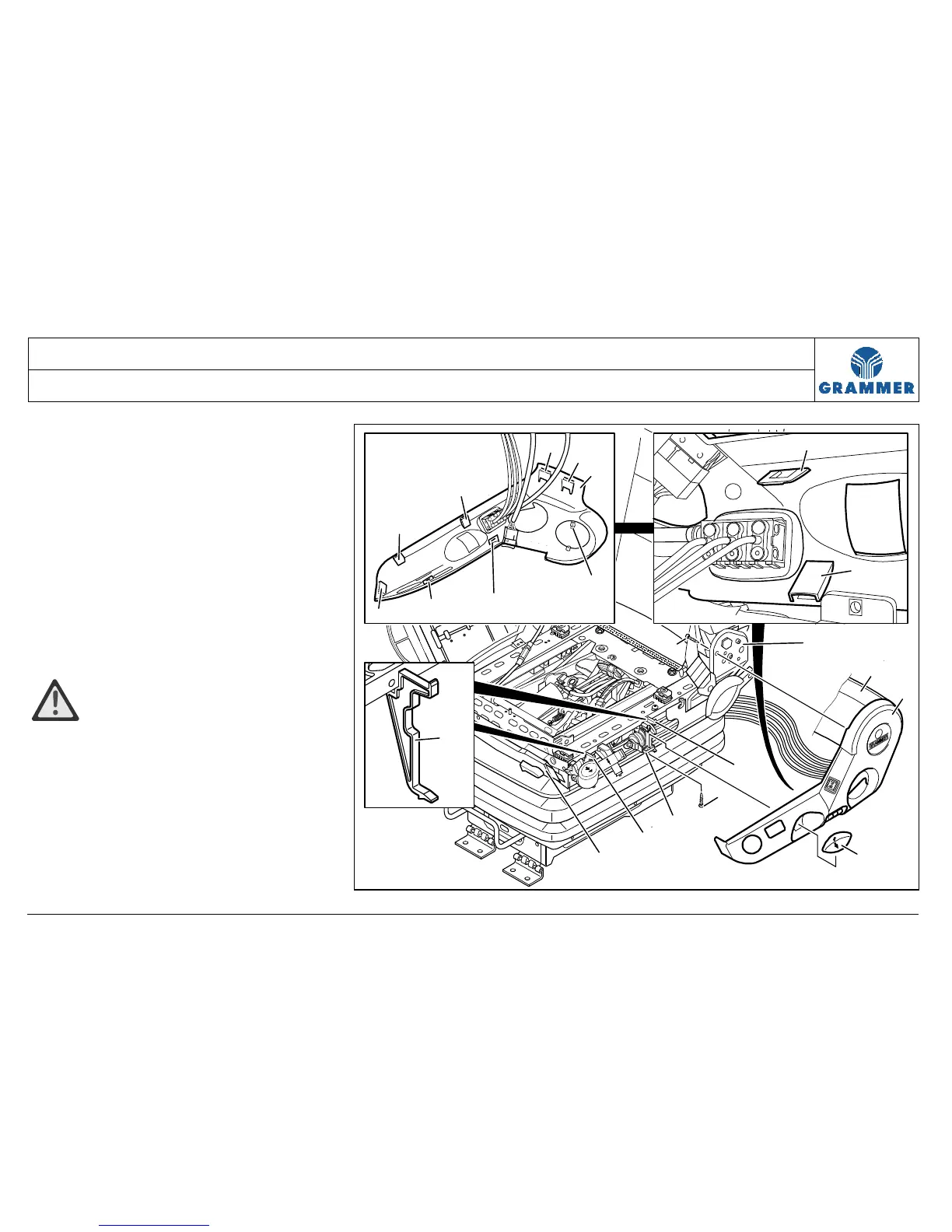

3.4 Left covering in position for repair – removal and attachment
Page 2 of 3
Removal, attachment
2 Unscrew the raised countersunk head
screw (3) and pull off the lever for seat
height adjustment (2) at the handle
support (14).
Installation note:
Raised countersunk head screw (3),
3 Nm.
3 Unscrew the round head screw (5).
Installation note:
Round head screw (5), 1.7 Nm.
ATTENTION Risk of breakage!
The left covering (1) is held by nine
snap-in hooks and is wedged in the
plastic. Use suitable screwdrivers to
carefully unhook the parts.
4 Carefully detach the upper snap-in
hooks (7) on the left covering (1) from
the supports (4).
7
1
8
5
3
4
4
6
13
14
2
1
12
4
11
7
8
1
9
9
8
10
7
2172
