3.7 Bowden pull wire and button for quick lowering of the seat –
removal and installation
Page 6 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

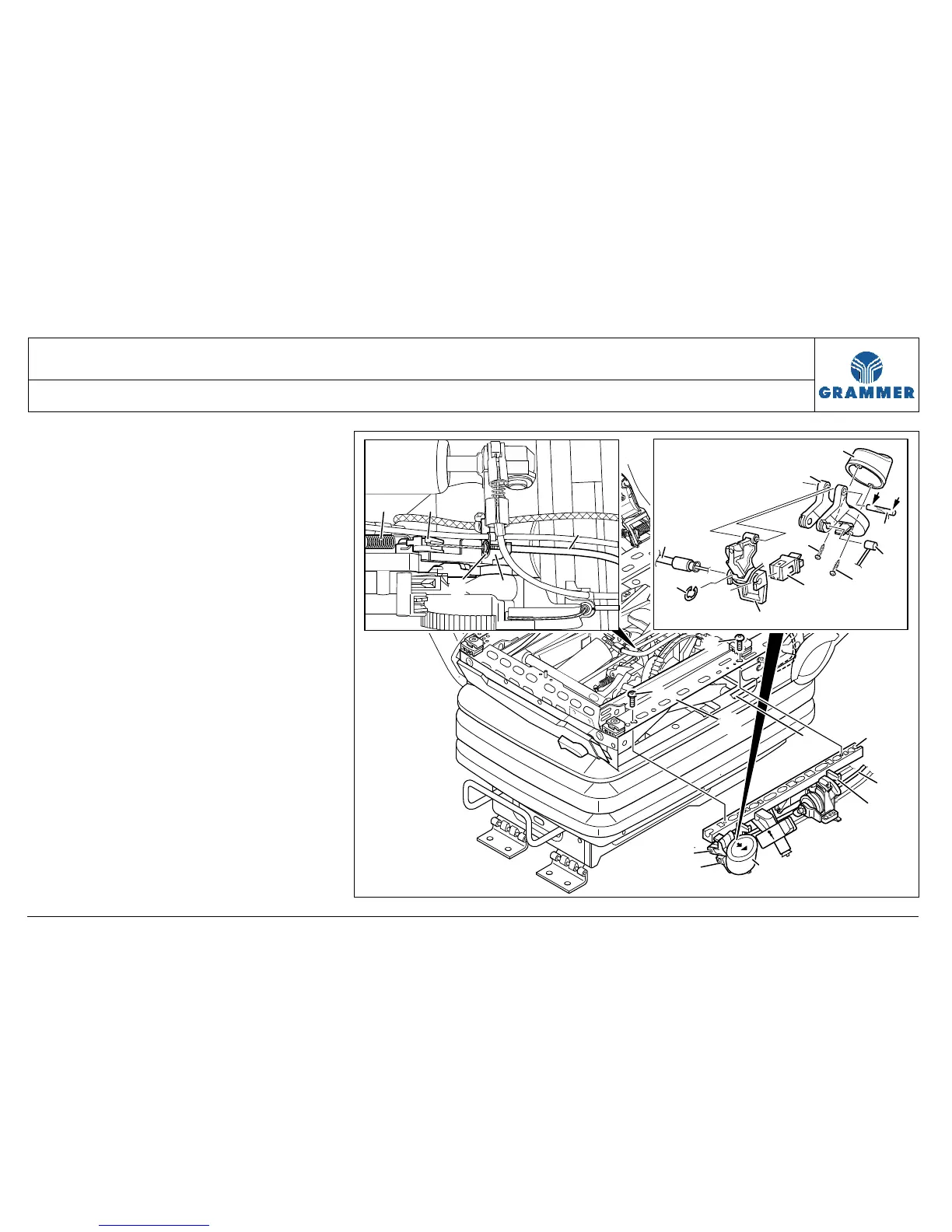

17.2 Unscrew two rounded head screws
(15) and remove the button for
quick lowering of the seat (6).
Installation note:
Rounded head screw (15), 3 Nm.
18 If the snap-in element (14) is
defective:
Remove the snap-in element (14)
from the holder (5).
19 Re-install the components in the
reverse order of their removal.
