Grammer MSG 90.6PG - 3.8 Bowden pull wire for seat height adjustment - inspection and adjustment

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.8 Bowden pull wire for seat height adjustment –
inspection and adjustment
Page 1 of 6
INSPECTION ADJUSTMENT TABLE OF CONTENTS

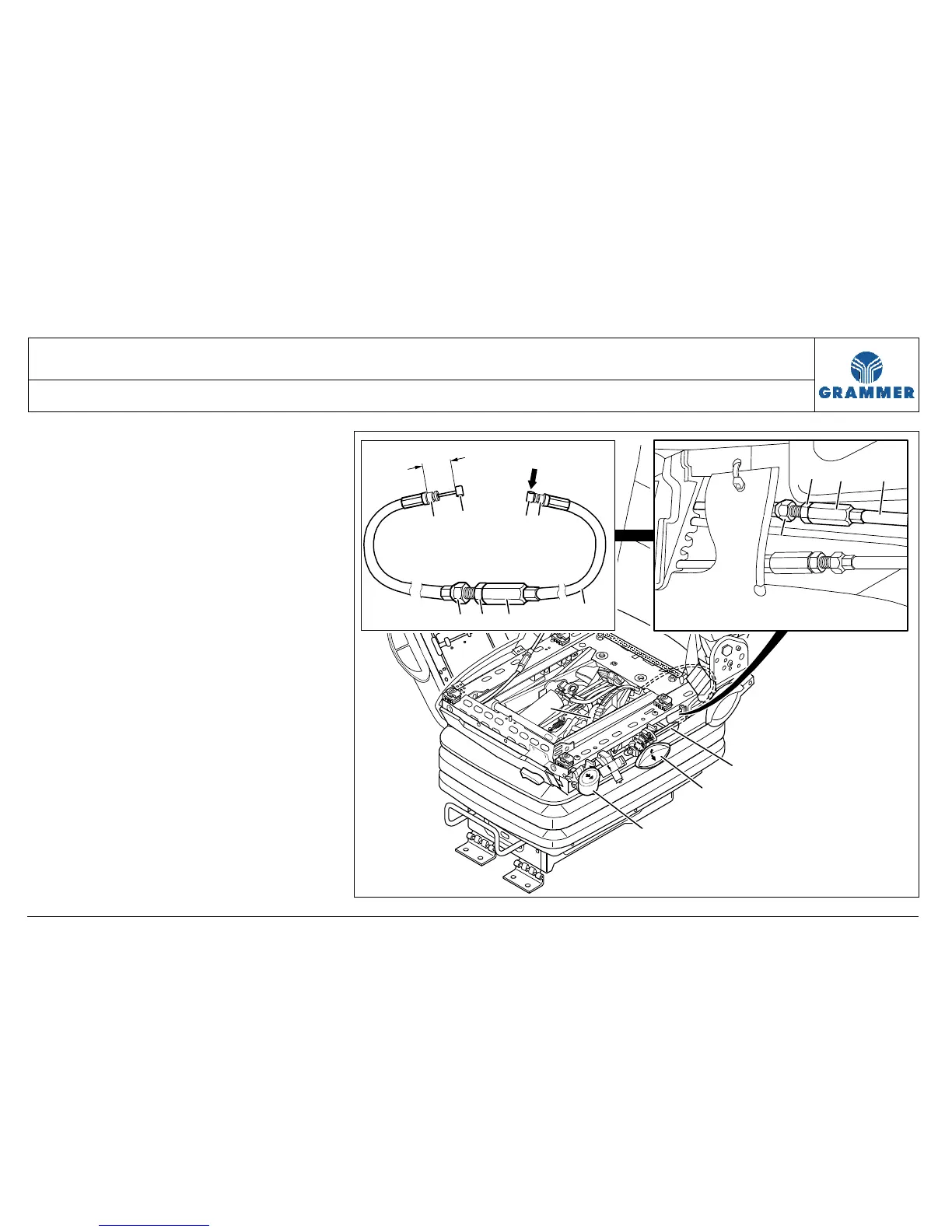

(1) Bowden pull wire for seat height -
adjustment
(2) Handle for seat height adjustment
(3) Button for quick lowering of the seat
(4) Level control
(5) Regulating screw
(6) Counternut
(7) Nut
(8) Nipple
(9) Suspension head
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Press and unlock the button for quick
lowering of the seat (3).
8
6
9
8
9
1
7
5
A
1
1
2
4
3
5
7
6
2178
