3.8 Bowden pull wire for seat height adjustment –
inspection and adjustment
Page 2 of 6
INSPECTION ADJUSTMENT TABLE OF CONTENTS
Inspection
Note:

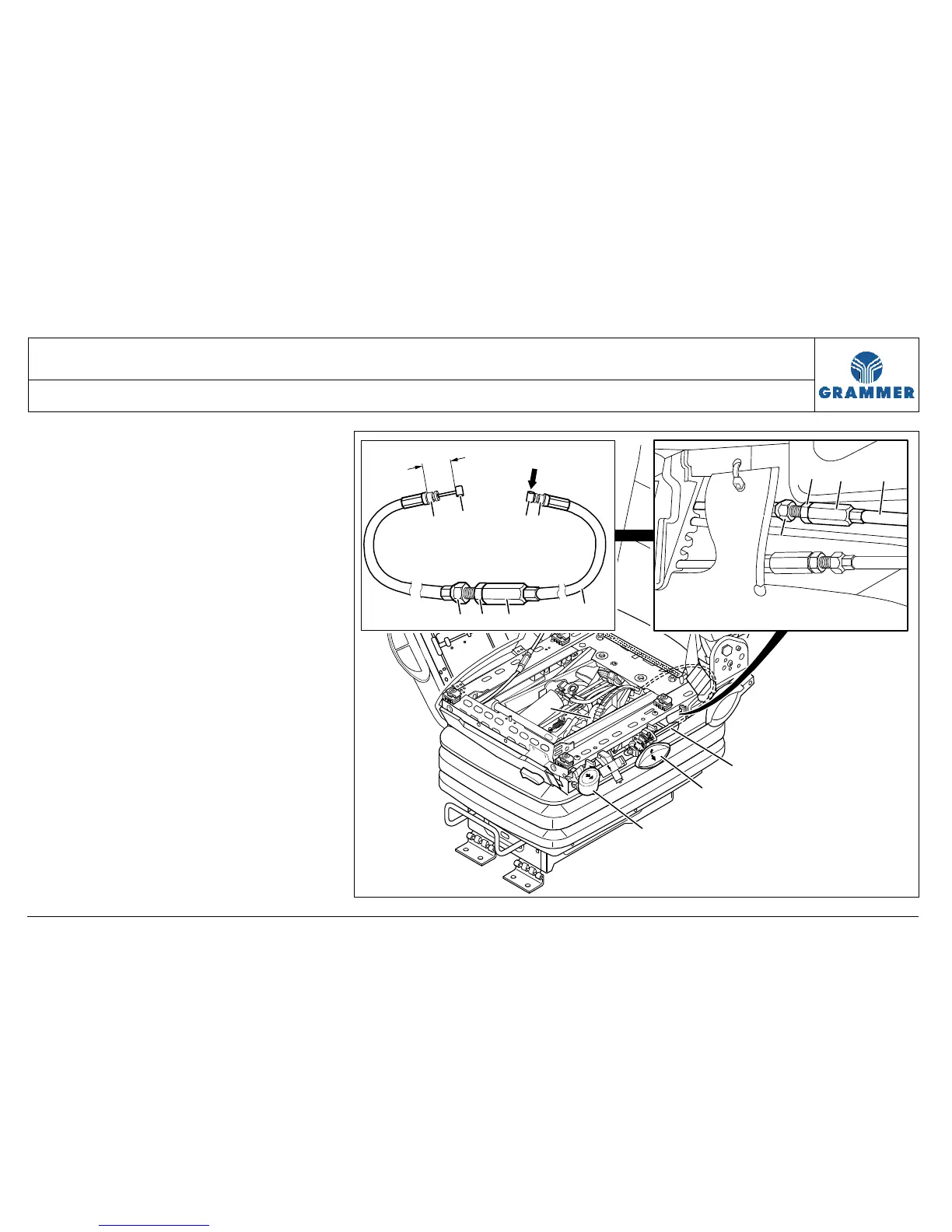

Check the Bowden pull wire for seat
height adjustment (1) for correct
functioning upon installation.
3 Operate the handle for seat height
adjustment (2) in both directions as far
as possible (pulling it upwards /
pushing it downwards) and check it for
correct functioning:
• locking in each step for a maximum
of nine locking steps (eight actuations)
• easy running of the Bowden pull wire
for seat height adjustment (1)
• smooth operation of the handle for
seat height adjustment (2)
• tight suspension of the Bowden pull
wire for seat height adjustment (1) at
the level control (4) (regarding
tensional force).
