Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.8 Bowden pull wire for seat height adjustment –
inspection and adjustment
Page 4 of 6

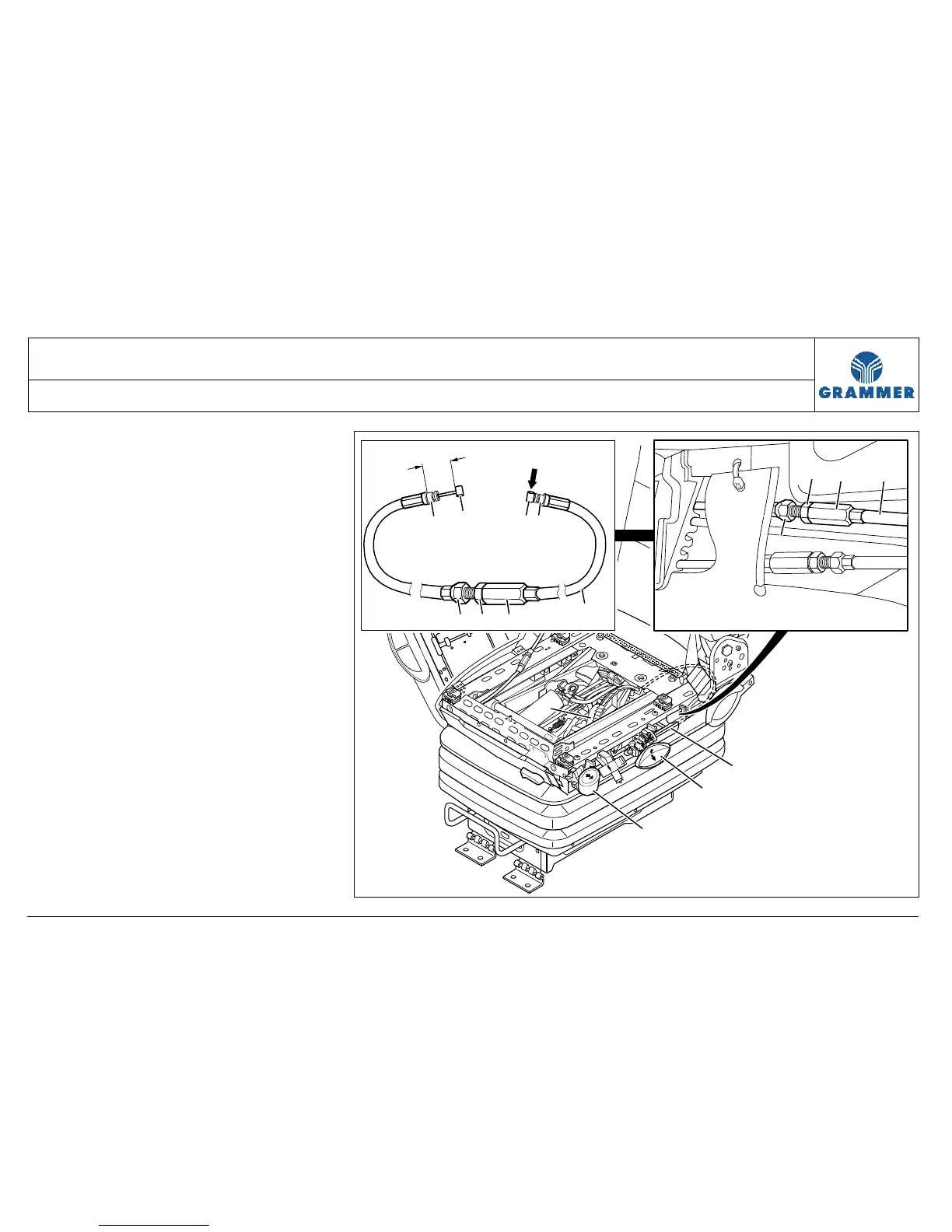

2 Pull the Bowden pull wire for seat
height adjustment (1) as far as
possible (arrow) and use a slide
gauge to check the adjustable
dimension (A) between the nipple (8)
and the suspension head (9) (excess
length of the wire).
Adjustable dimension: A = 217 mm
3 Loosen the counternut (6) and adjust
the required adjustable dimension (A)
by means of the regulating screw (5).
4 Turn the regulating screw (5) away
from the nut (7) in order to shorten the
adjustable dimension (A) or turn the
regulating screw (5) towards the nut
(7) in order to extend the adjustable
dimension (A).
8
6
9
8
9
1
7
5
A
1
1
2
4
3
5
7
6
2178
