Grammer MSG 90.6PG - Page 132

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.9 Bowden pull wire and handle support for seat height adjustment –
removal and installation
Page 1 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

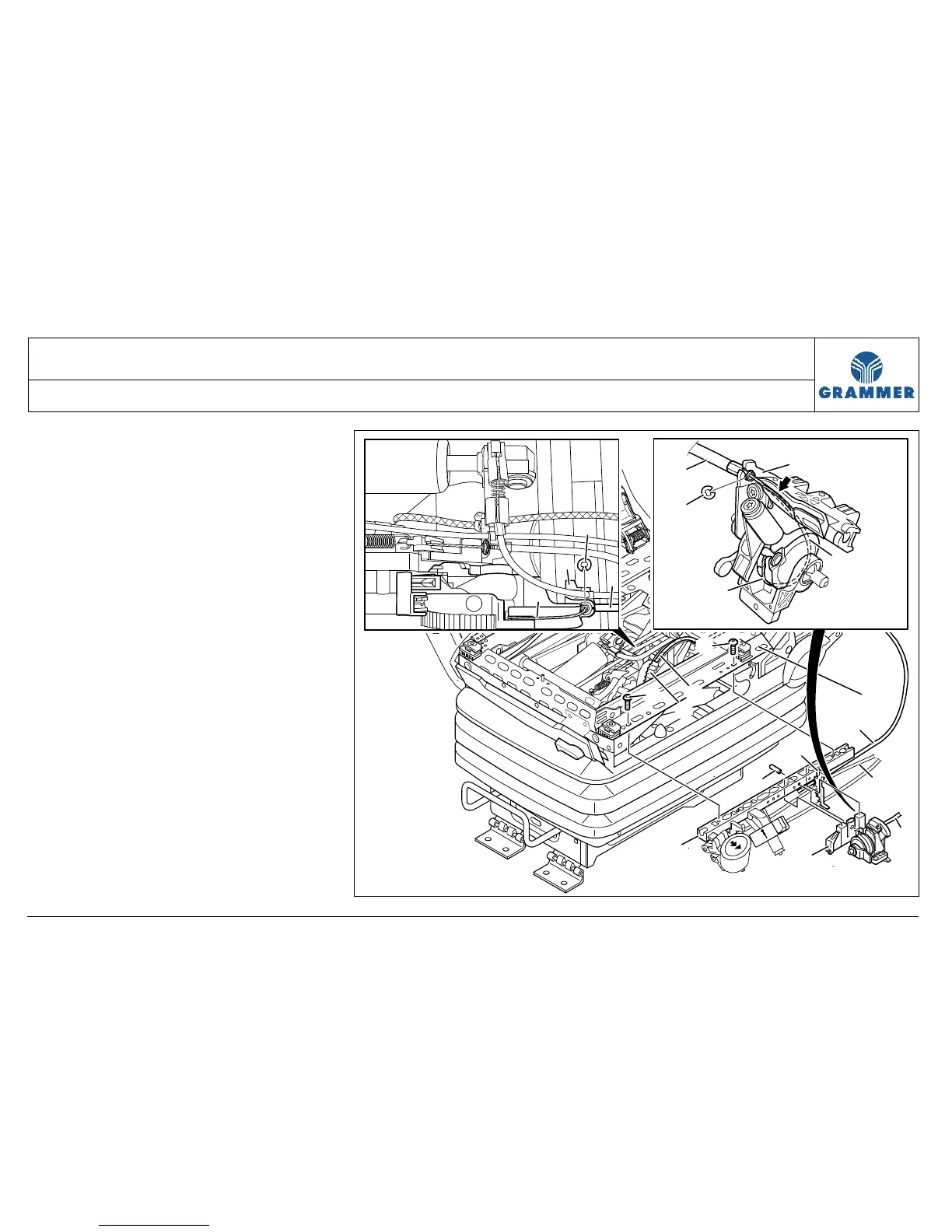

(1) Bowden pull wire for seat height
adjustment
(2) Rounded head screw
(inner race) ........................... 3 Nm
(3) Handle rail
(4) Grooved pin
(5) Support
(6) Handle support for seat height
adjustment
(7) Control disc (level control)
(8) Support
(9) Lock washer
(10) Lock washer
(11) Drum (handle support for seat
height adjustment)
(12) Seat frame
(13) Bowden pull wire for quick lowering
of the seat
12
13
6
3
5
1
4
1
1
9
8
7
2
2
7
1
1
1
10
6
11
