Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

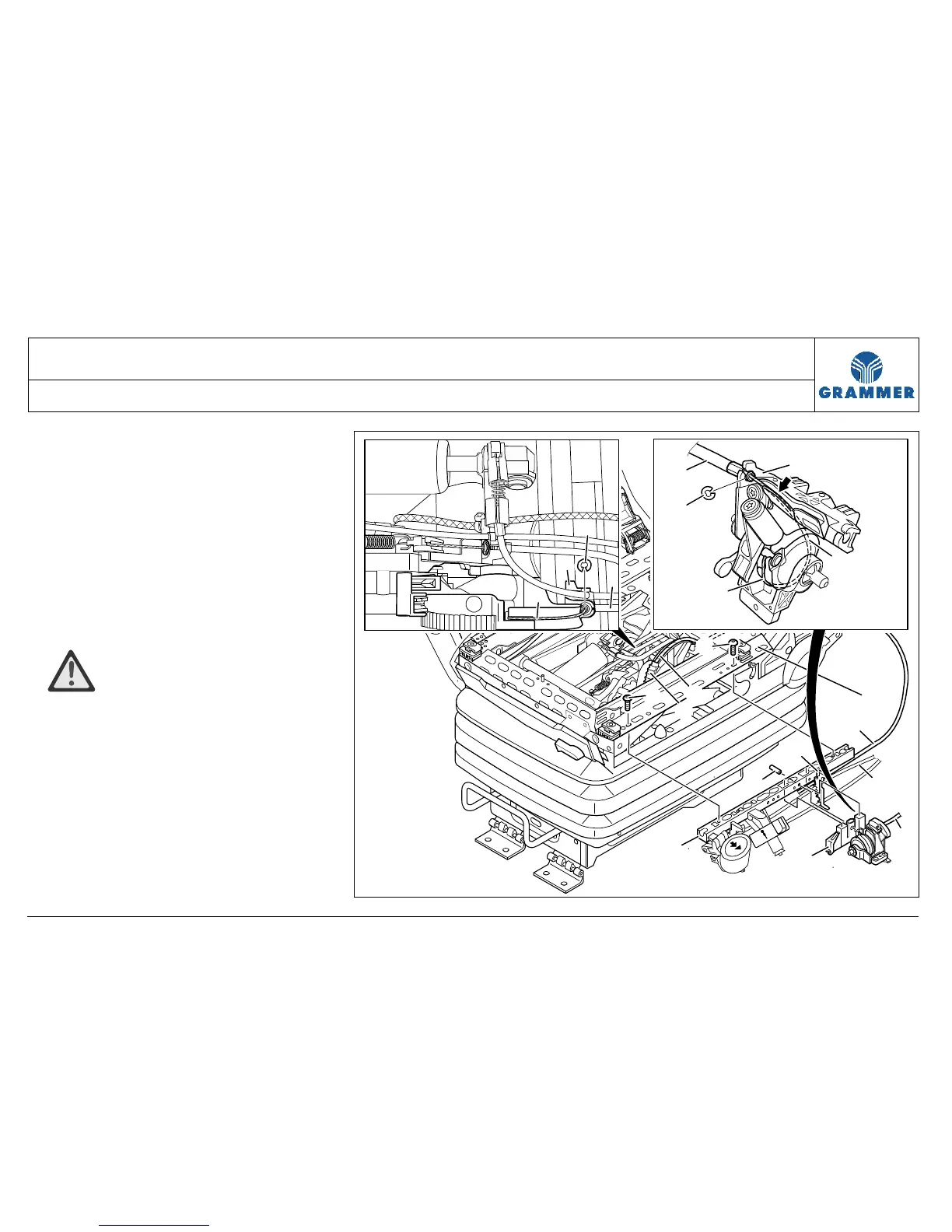

3.9 Bowden pull wire and handle support for seat height adjustment –
removal and installation
Page 2 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering
(Chapter 3.4).
3 Remove the bellows at the rear left of
the seat frame (see Chapter 3.6).
Removal and installation
4 WARNING Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.
5 Mark the installation position of the
Bowden pull wire for seat height
adjustment (1) prior to removal.
12
13
6
3
5
1
4
1
1
9
8
7
2
2
7
1
1
1
10
6
11
2179
