Grammer MSG 90.6PG - Page 134

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.9 Bowden pull wire and handle support for seat height adjustment –
removal and installation
Page 3 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

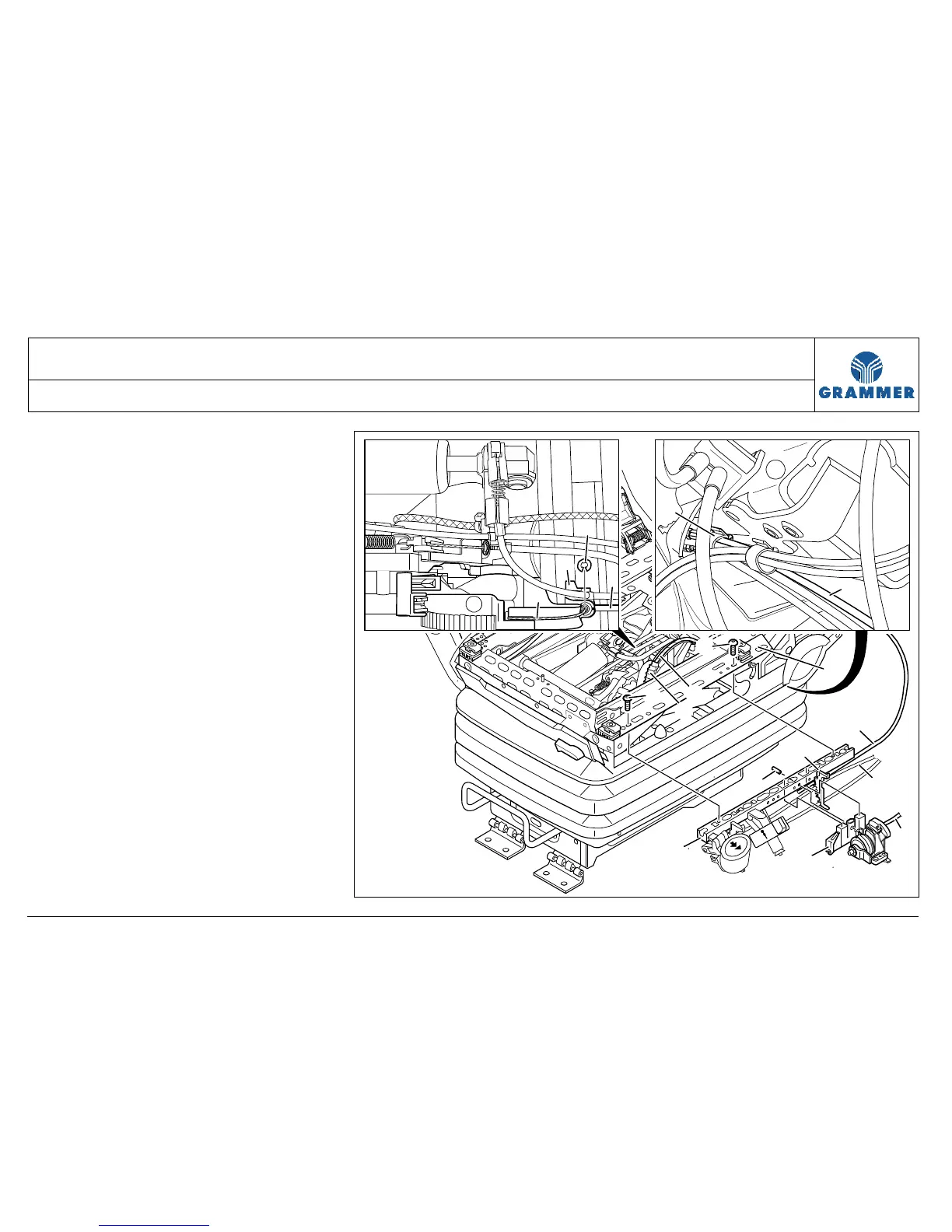

6 Remove the Bowden pull wire (1) from
the control disc (7).
Note:
For easier removal of the Bowden pull
wire (1), press the control disc (7)
against the Bowden pull wire (1)
(strain relief).
7 Loosen the lock washer (9) at the
Bowden pull wire (1).
8 Remove the Bowden pull wire (1) from
the holder (8).
9 Pull the Bowden pull wire (1) out of
the seat suspension in backward
direction.
10
Pull out the clip (14) at the rear lower
left of the seat frame (12).
11 Remove the Bowden pull wire (1)
from the clip (14).
