Grammer MSG 90.6PG - Page 135

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.9 Bowden pull wire and handle support for seat height adjustment –
removal and installation
Page 4 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

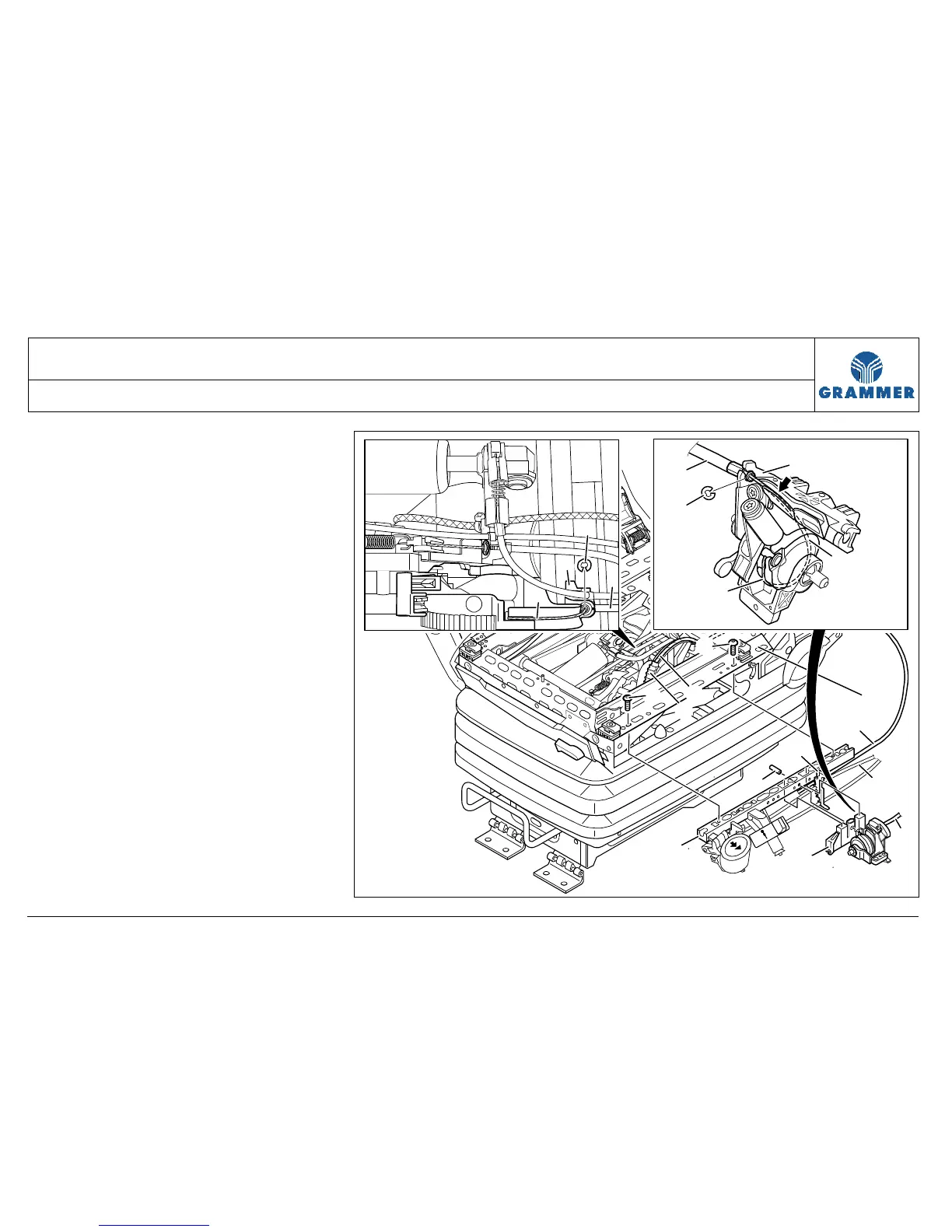

12 Unscrew two rounded head screws
(2) and lay the handle rail (3) down.
Installation note:
Rounded head screw (2), 3 Nm.
13 Loosen the lock washer (10) at the
Bowden pull wire (1).
14 Detach the Bowden pull wire (1) at
the holder for seat height
adjustment (6).
15 Remove the Bowden pull wire (1)
from the drum (11).
