Grammer MSG 90.6PG - Page 136

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.9 Bowden pull wire and handle support for seat height adjustment –
removal and installation
Page 5 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

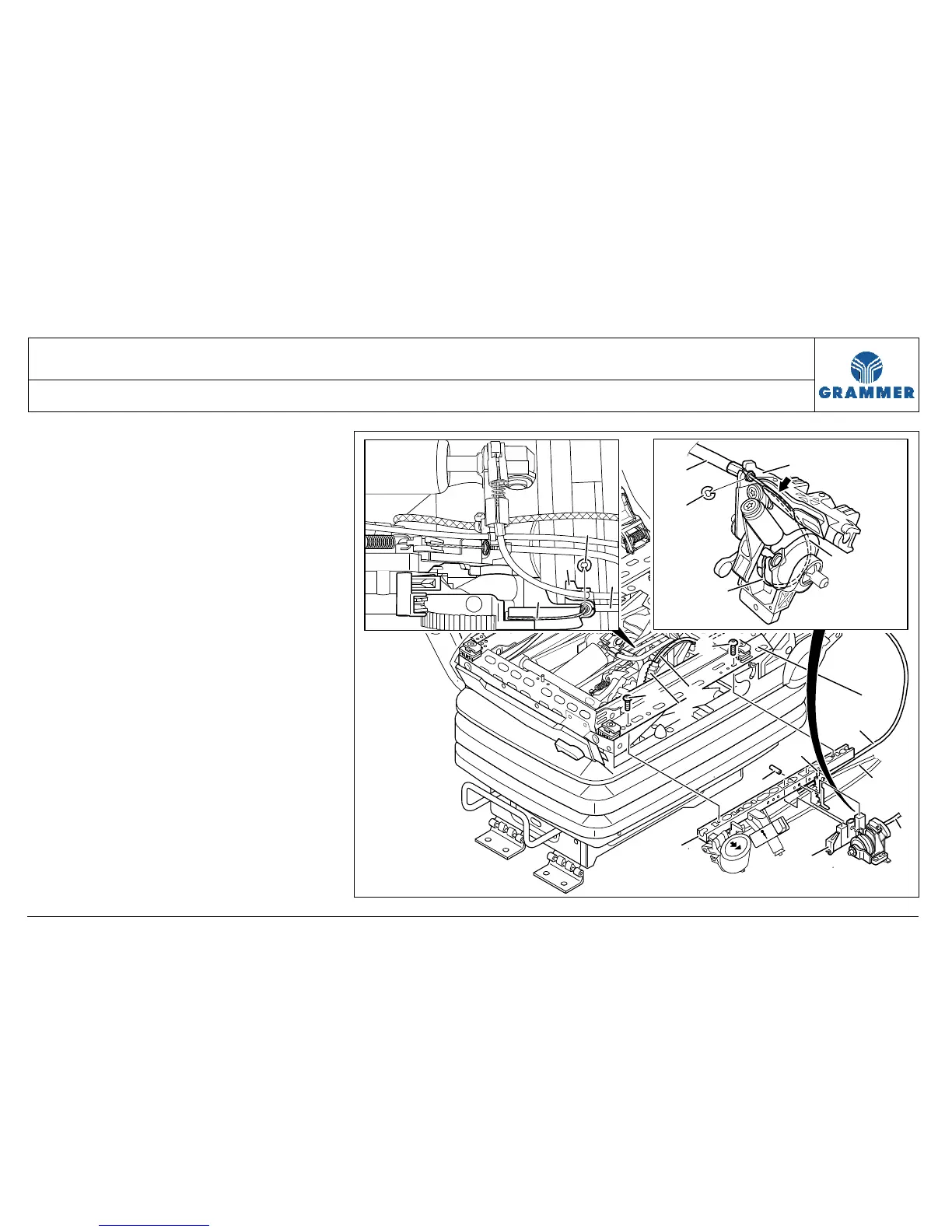

16 Unthread the Bowden pull wire (1)
between the drum (11) and the
handle support for seat height
adjustment (6) and remove it.
Installation notes:
• The Bowden pull wire (1) has to be
hung into the guide (arrow) of the
handle support for seat height
adjustment (6).
• The Bowden pull wire (1) has to be
placed around the drum (11).
17 If the handle support for seat
height adjustment (6) is
defective:
17.1 Drive the grooved pin (4) out of the
handle rail (3).
