3.9 Bowden pull wire and handle support for seat height adjustment –
removal and installation
Page 6 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

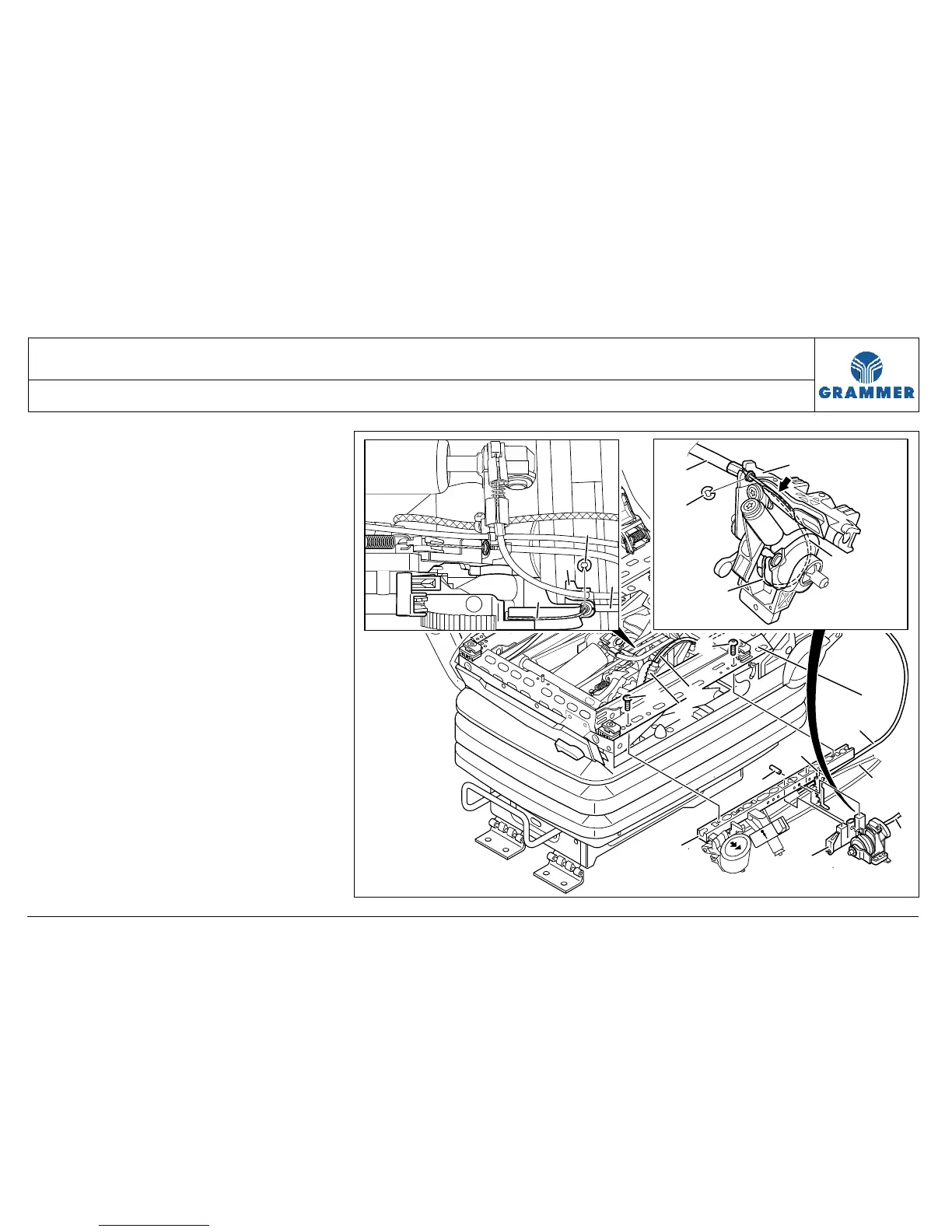

17.2 Pull the handle support for seat
height adjustment (6) out of the
handle rail (3).
Note:
To pull the handle support for seat
height adjustment (6) out more
easily, detach the Bowden pull wire
for quick lowering of the seat (13)
at the support (5) (see
Chapter 3.7).
18 Re-install the components in the
reverse order of their removal.
Installation notes:
• Preadjust the new Bowden pull
wire (1) to the correct length (see
Chapter 3.8).
• Lay the Bowden pull wire for set
height adjustment (1) according to
the marking.
• Check the Bowden pull wire upon
installation (see Chapter 3.8).
