Grammer MSG 90.6PG - 3.10 Bowden pull wire for vertical shock absorber adjustment - inspection and adjustment

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.10 Bowden pull wire for vertical shock absorber adjustment –
inspection and adjustment
Page 1 of 5
INSPECTION ADJUSTMENT TABLE OF CONTENTS

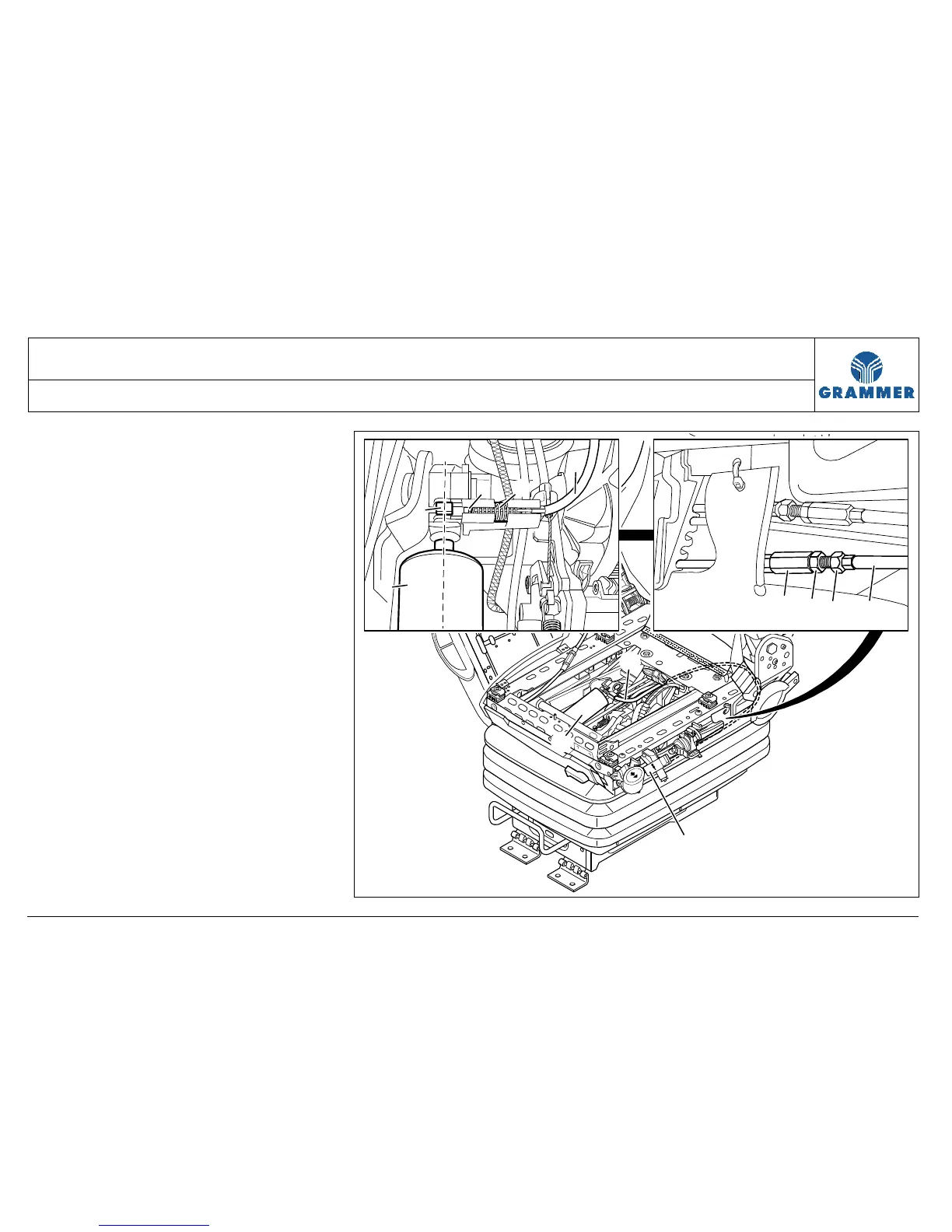

(1) Bowden pull wire for vertical shock
absorber adjustment
(2) Lever for vertical shock absorber
adjustment
(3) Vertical shock absorber
(4) Adjusting lever
(5) Compression spring
(6) Regulating screw
(7) Counternut
(8) Nut
(9) Hauling rope
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
